Home > Products > Auto pre-expander > High expansion EPS Pre-foaming machine/EPS equipment
High expansion EPS Pre-foaming machine/EPS equipment
- 100 Set / Sets per Month
- Shanghai or Ningbo
- T/T Credit Card PayPal
- Lightweight thermal insulation house prefabricated wall panel price
- Mgo Sound insulation and heat preservation concrete hollow lightweight partition wall panels
- lightweight partition wall panel
- building material Mgo precast wall panels
- Mgo lightweight concrete foam wall panels Quality Choice
- Supply perforated/acoustic/sound-absorb wall panel mgo board/fireproof mgo board/magnesium oxide board
Product Details
Condition: | New | Product Type: | Foam Net | Place of Origin: | Zhejiang, China |
Brand Name: | Milon | Model Number: | ML-1100B | Voltage: | 380V |
Power(W): | 15.5kw | Dimension(L*W*H): | 2900x4500x5900mm | Weight: | 3200KG |
Certification: | CE | Warranty: | 12 months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
High expansion EPS Pre-foaming machine/EPS equipment

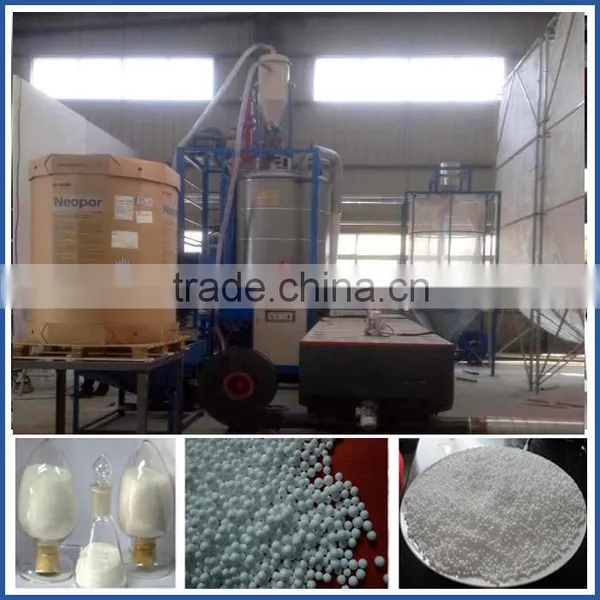

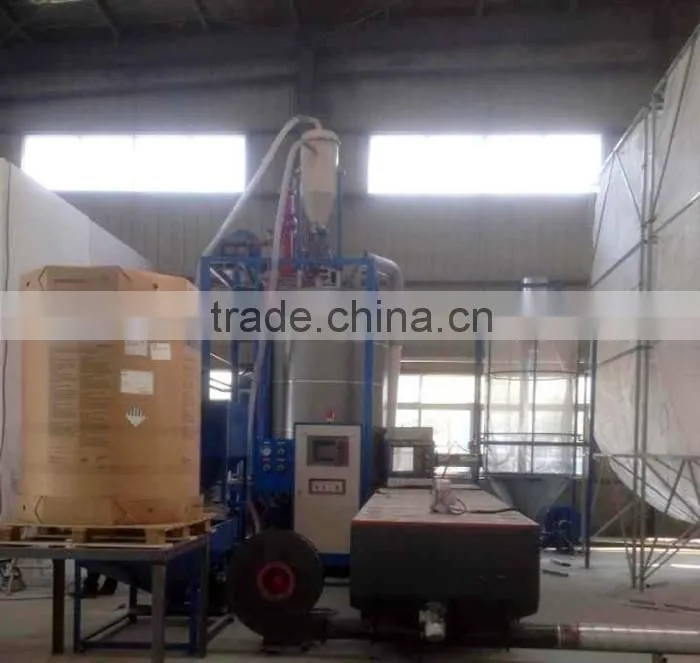

1,Product show EPS Pre-foaming machine/EPS equipment
2,Product feature:
- This eps expandable polystyrene machine is used for secondary pre-expanded machine,it can expand particular low density foamed beads,it also can be used for first pre-expansion after technical reform.It is a multifunctional pre-expander machine.
- This eps expander machine applies PLC and touch screen,automatic feeding,electronic weighing,temperature control,material level control to realize automatic production.
- Electronic weighing system and material level control system assure the density of the foamed material, which make the bead uniform and keep the density tolerance within±2.8%.
- This EPS expander machine applies automatic material charging system,electronic weighing system and PLC central control system,which realize automatic feeding and weighing,improve production efficiency and reduce labor intensity.
- The closed constant pressure foaming barrel has high heating efficiency. It can save more than 50% energy compared to the continuous pre-expander.The foamed beads are uniform,and its aging time is shorter compared to other normal machine.
- This machine applies large volume fluidized bed dryer.it can automatically dry,filter, crush the ball material and transport the foamed material to aging silos.
- This eps expander machine applies automatic high pressure suction material charging system and automatic high pressure fan facility discharging system,which shorten the materials charging and discharging time,improve the production efficiency.
- Most of the main component are of world-famous brand,with reliable performance,stable quality,long service life and low maintenance cost.
- The computer has memory function, which can record all information such as brands, specifications, expanding foam techniques and parameters of EPS material manufacturers. When customers want to use the materials that ever been used before just press the touch screen of computer to quickly go back to the original technique.
- The electronic weighing system device is assembled on the top of the machine frame,the structure of the machine is compact,it occupies smaller space.
- This machine is applicable in plateau oxygen depletion area,the production efficiency of continuous pre-expander machine is quite low under such circumstance.
3.Technical data:
Item | Unit | ML-930B | ML-1100B |
Expansion chamber diameter | mm | DN900 | DN1100 |
Expansion chamber volume | m3 | 0.9 | 1.4 |
Expansion chamber usable volume | m3 | 0.75 | 1.0 |
Steam entry | inch | 2"(DN50) | 2"(DN50) |
Steam consumption | kg/cycle | 4-6 | 6-8 |
Steam pressure | Mpa | 0.6-0.8 | 0.6-0.8 |
Compressed air entry | inch | 2"(DN50) | 2"(DN50) |
Compressed air consumption | kg/cycle | 0.5-0.7 | 0.9-1.1 |
Compressed air pressure | Mpa | 0.5-0.8 | 0.5-0.8 |
Upper drain port | inch | 4"(DN100) | 4"(DN100) |
Down drain port | inch | 4"(DN100) | 4"(DN100) |
Down steam vent | inch | 3"(DN80) | 3"(DN80) |
Material conveying line | inch | 6"(DN150) | 6"(DN150) |
Capacity 10g/L | 10g/L | 230 | 320 |
Capacity 15g/L | 15g/L | 320 | 550 |
Capacity 20g/L | 20g/L | 450 | 750 |
Capacity 30g/L | 30g/L | 670 | 850 |
Connected load/Power | KW | 15.5 | 17.5 |
Expander density | m3 | 10-50 | 10-40 |
Density tolerance | % | 2.5% | 3% |
Overall dimension(LxWxH) | mm | 2700x4200x5900 | 2900x4500x5900 |
Weight | KG | 2700 | 3200 |
4.Application
---Packaging&shipping--- |
MOQ | 1 SET |
Payment term | T/T, L/C western union |
Delivery | 30days after receive deposit payment or L/C |
Port | Ningbo or Shanghai |
Packing | wooden,Bubble bag and standard export seaworthy packaging |
---Our service--- |
1. Value clients, guarantee equipment quality and answer clients’ questions anytime and anywhere.
2. Customizing machines according to clients' inquiry , such as different design, different brand parts, different colors, more function,etc.
3. Engineers go to clients' factory in time for installation , training and trial production .
4. 1 year free warranty, Lifetime technical service support, some spare parts will be send to our customer free of charge.
---Company information--- |
HANGZHOU MILON MACHINERY CO.,LTD was established by one professional team with more than 10 years experience on EPS machine and EPS assistant equipment. we have our own factories and partners to cooperate together. Our customers has been extended all over the world, the company is developing and growing up rapidly.
---certificate---
---exhibition and customers---
---Machine in customer's factory---
----FAQ--- |
Q1:what is warantty for EPS expander machine?
1year waratty for free, lifetime service
Q2: Do you have qaulity control?
Yes, we have QC team strictly inspect in the middle of production and before shipment.
Q3:What is advantage of your EPS expander machine?
Use word famous brand, ensure high and stable quality, use advanced germany Alan Bach technology,
energy saving, high efficiency to produce foam products.
How to contact us?
Send your equiry detail to Kelly,we will be here service for you always.
We chat ID: kellyzhan88
Cell No.: 86-18257100130
