12v Brushless Permanent Magnet dc Motor for Scanner

12v Brushless Permanent Magnet dc Motor for Scanner thumbnail-1
12v Brushless Permanent Magnet dc Motor for Scanner thumbnail-2
12v Brushless Permanent Magnet dc Motor for Scanner thumbnail-3
12v Brushless Permanent Magnet dc Motor for Scanner thumbnail-4
12v Brushless Permanent Magnet dc Motor for Scanner thumbnail-5
12v Brushless Permanent Magnet dc Motor for Scanner thumbnail-6
12v Brushless Permanent Magnet dc Motor for Scanner photo-1
12v Brushless Permanent Magnet dc Motor for Scanner photo-2
12v Brushless Permanent Magnet dc Motor for Scanner photo-3
12v Brushless Permanent Magnet dc Motor for Scanner photo-4
12v Brushless Permanent Magnet dc Motor for Scanner photo-5
12v Brushless Permanent Magnet dc Motor for Scanner photo-6
US$ 6.56 - 15 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
DH Motor
Model Number:
BL2838 12v brushless permanent magnet dc motor for scanner
Contact Supplier Request Quote Chat Now
Shenzhen Xin Dong Hui Motor Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name DH Motor
Model Number BL2838 12v brushless permanent magnet dc motor for scanner
Usage Boat, Car, Electric Bicycle, Fan, Home Appliance
Certification CCC, CE, ROHS, UL
Type Micro Motor
Torque High Torque
Construction Permanent Magnet
Commutation Brush
Protect Feature Totally Enclosed
Speed(RPM) Variable Speed
Continuous Current(A) 0.15
Output Power TBD
Voltage(V) 12V
Efficiency IE 1
Product Description

12v brushless permanent magnet dc motor for scanner

Size: Diameter 28 mm, Length: 37.6 mm, Shaft Diameter: 2mm

Speed No Load: 7240 RPM

Current No Load: 0.15 A

Speed at Max Efficiency: 5800 RPM

Current at max efficiency: 0.93A

Torque at max efficiency: 244 g.cm

Output at max efficiency: 14.6 W

Stall torque: 1236 cm

Stall current: 4.1 A



Application: Medical Stirrer, medical pump, electric curtain,fanner,small appliance,printer,copier,projector,scanner,electric screwdriver,water pump,vacuum pump

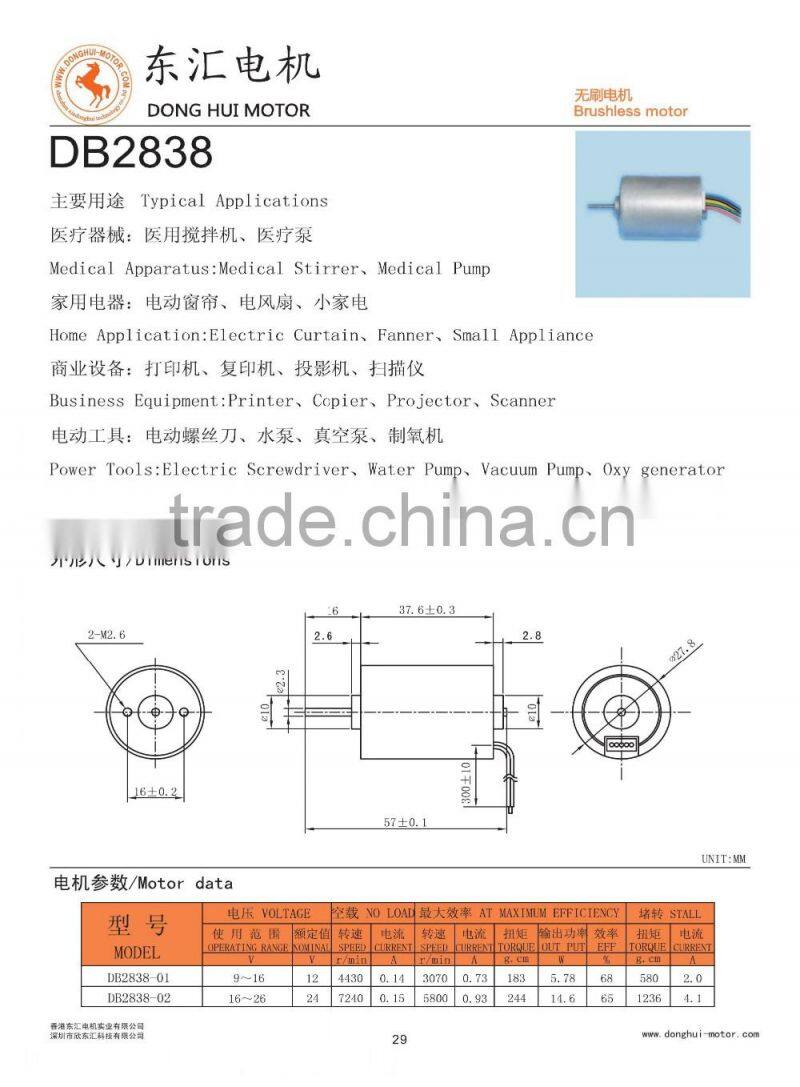

Demensions and DATA

 12v brushless permanent magnet dc motor for scanner
