Home > Electrical & Electronics > Electric Motor > DC Motor > 12v 24v Micro Brushless Motors With Hall Sensor for Medical Driver

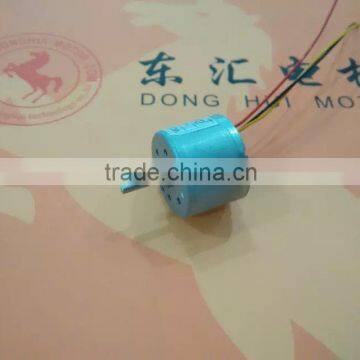

12v 24v Micro Brushless Motors With Hall Sensor for Medical Driver

Name: 12v 24v Micro Brushless Motors With Hall Sensor for Medical Driver
Brand: DH Motor
SKU: 112073367
Availability: InStock

12v 24v Micro Brushless Motors With Hall Sensor for Medical Driver thumbnail-1

12v 24v Micro Brushless Motors With Hall Sensor for Medical Driver thumbnail-2

12v 24v Micro Brushless Motors With Hall Sensor for Medical Driver thumbnail-3

12v 24v Micro Brushless Motors With Hall Sensor for Medical Driver photo-1

12v 24v Micro Brushless Motors With Hall Sensor for Medical Driver photo-2

12v 24v Micro Brushless Motors With Hall Sensor for Medical Driver photo-3

US$ 4.2 - 10 MOQ: 10 Pieces

Key Specifications

Get Latest Price

Place of Origin:

China

Brand Name:

DH Motor

Model Number:

DBL2418 micro brushless motors with hall sensor for Medical Driver

Contact Supplier Request Quote Chat Now

Shenzhen Xin Dong Hui Motor Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin China

Brand Name DH Motor

Model Number DBL2418 micro brushless motors with hall sensor for Medical Driver

Usage Boat, Car, Electric Bicycle, Fan

Certification CCC, CE, ROHS

Type Micro Motor

Torque 40.2 g.cm

Construction Permanent Magnet

Commutation Brushless

Protect Feature Drip-proof

Speed(RPM) 3000 RPM

Continuous Current(A) 0.1A

Output Power 4.5w

Voltage(V) 12V/24V

Efficiency IE 1

Product Description

Size: Diameter 24.4 mm, Length: 18.1 mm, Shaft Diameter: 2mm
Speed No Load: 6200-8700 RPM
Current No Load: 0.10 A
Speed at Max Efficiency: 5800 RPM
Current at max efficiency: 0.28 A
Torque at max efficiency: 40.2 g.cm
Output at max efficiency: 4.5 W
Stall torque: 119 cm
Stall current: 0.62 A

Application: Medical Stirrer, medical pump, electric curtain,fanner,small appliance,printer,copier,projector,scanner,electric screwdriver,water pump,vacuum pump

Product Name	12v 24v micro brushless motors with hall sensor for Medical Driver
Rate Voltage	12-24V
Rate Speed	6000 RPM
Size	Diameter 24.4 mm, Length 18.1 mm
Reduction Ration	micro brushless motors
Reduction Ration	micro brushless motors
Application	Robot, Home Appliance, Door Lock etc
Customized	Yes, Adjust the performance at free(voltage,speed,torque,ECT.)

Size

Our Company

Factory

Our Factory

Workshop

Our Workshop

Products show

FAQ

Q:What's your main products?

A: Dia6~52mm DC Micro Motor and Gear Motor,Auto dc motor, Electric motor, Gear Motor, DC Motor, Brush DC motor, Brushless DC motor,Spur Gear motor, Micro Motor, Vibration motor etc

Q: What's the main usage of the micro dc gear motor?

A: Our motor widely used in Home Appliance,Office Equipment,Health-care appliance,Sanitation industry, High-class toy,Banking System,Electronic and electrical tools,automation industry, bank equipments,payment equipments,vending machines,power door lock,electric door lock.

Q: What kind of data do i neet to provide if i want to order?

A: Please kindly tell us your voltage,speed,torque and overall dimension.

Q: Do you accept customize?

A: Sure,as we have a strong design team,any problems will get our technical answer.
