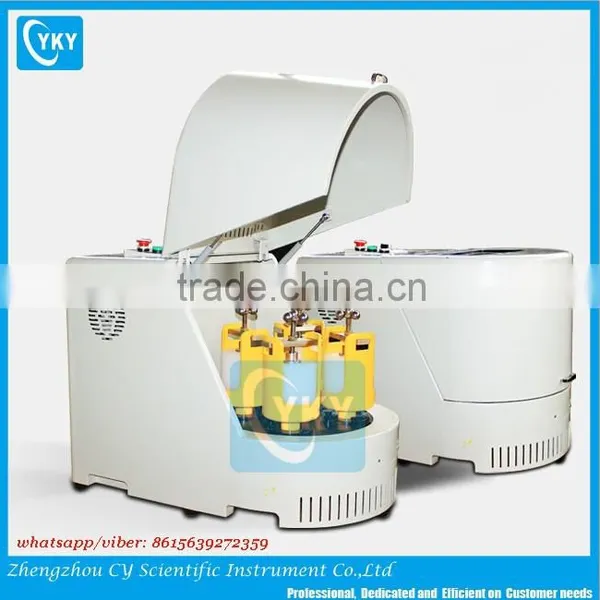

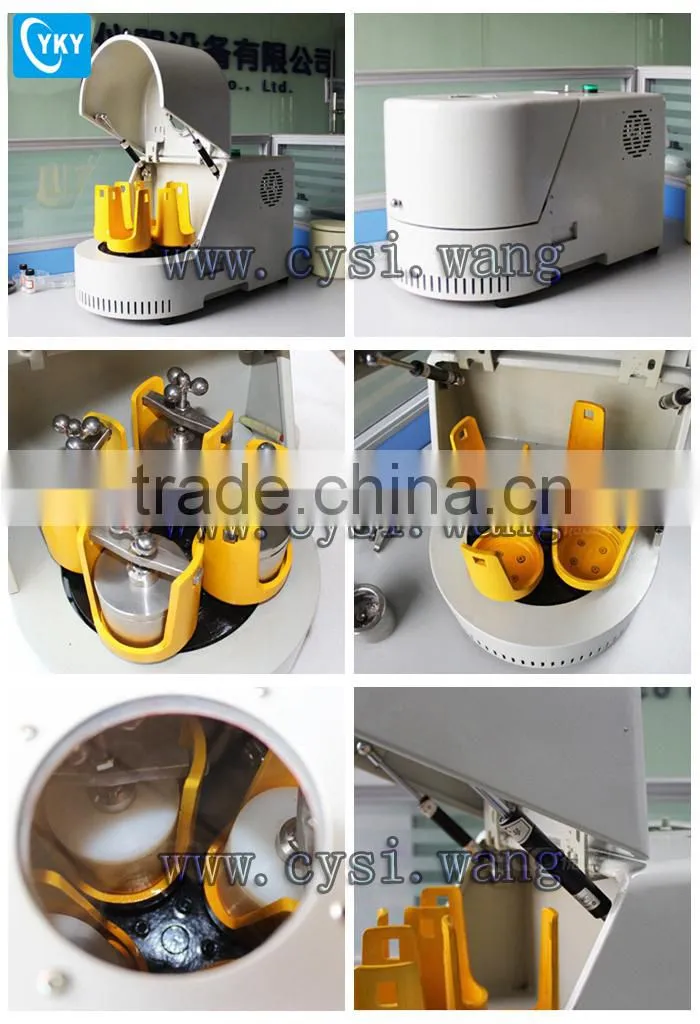

Automatic Lab Planetary ball mill for nano material mixing and grinding
Features of Lab Planetary ball mill
1.Elegant design, easy to operate
2.Ideal for wet or dry grinding application
3.Automatic and programmable control with LED display
4.Multiple grinding modes to choose
5.High uniformity and excellent repeatability
6.Fast rotational speed, high efficiency and fine granularity
7.Programmable interval and pause times
8.Four samples with different sizes and materials in one experiment
9.Cooling of the grinding chamber with a built-in fan for long grinding times
Application of Lab Planetary ball mill
Planetary Ball Mill designed for mixing, fine grinding, and preparing small volume high-tech material production, which features with small volume, high efficiency, low noise and quick clamp. If mated with optional vacuum jar, it can grind samples in vacuum or inert gas. The product is extensively used in the fields of Geology, Mining, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry, Medicine, and Environmental Protection, etc.
Working principle |
Impact and friction force |
Item no. |
PBM-V-0.4L |
Compatible Grinding Jars |
100ml * 4 |
Max Feeding capacity |
2/3 capacity of the grinding jar |
Operation mode |
2 or 4 grinding jars working simultaneously |
Feeding granularity |
Soil materials < 10mm, others materials < 3mm |
Discharging granularity |
≤ to 0.1µm |
Sample Type |
hard, medium-hard, soft, fibrous, brittle, moist |
Rotational speed of grinding Jar |
960rpm |
Rotational speed ratio |
2:1 |
Drive mode |
gear drive and belt drive |
Speed control |
stepless speed regulation |
Electrical details |
110V/220VAC, 50/60Hz, single phase, 0.25KW |
Max continuous grinding time |
99hours |
Grinding jars material |
Stainless steel, nylon,zirconia,alumina,manganese steel, polytetrafluoroethylene, or as customized |
Weight |
32KG /45KG |
Dimension |
502*300*296mm |

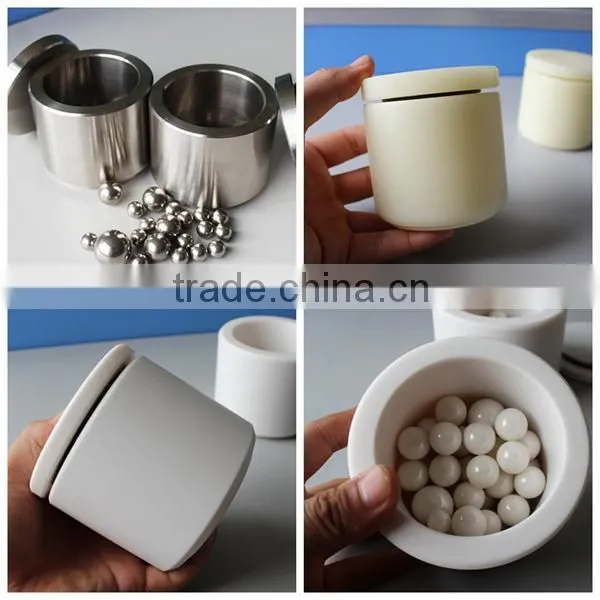

Grinding jars of the Lab Planetary ball mill
Want to know more details? Call us:+8615639272359, or add skype:jennyhao8819
