Laboratory single zone SOFC fuel cell tester with PID control
Introduction of fuel cell tester |
The fuel cell tester is mainly used for solid oxide fuel cell (SOFC) temperature testing and battery temperature monitoring. We also can do customized design.
It can work with our gas supply system, gas liquid mixture supply system, pressure control monitoring system
Technical parameters of fuel cell tester |
|
Furnace parameters
|
Furnace Construction |
•High purity ceramic fiber insulation (energy saving 30% and weight lighter about 30% than old furnace ). • Double layers steel casing with fan cooling, to ensure the surface of furnace below 50 °C. |
Chamber Size |
Φ120*100mm or as customized |
|
Power |
0.8KW ~10KW, base on the heating zone length |
|
Voltage |
AC 110V or AC 220V 50/60 Hz |
|
Max. Temperature |
1200 °C (< 2 hour) |
|
Continuous Work Temp. |
1150 °C |
|
Max. Heating Rate |
20 °C /min |
|
Temperature Controller |
• PID automatic control and auto-tune function. |
|
Temperature Accuracy |
+/- 1 °C |
|
Heating Element |
Aludirome |
|
Thermal Couple |
K type |
|
Gas mixer( optional) |
l Three gas way can be connected l A way speed: 0-100SCCM l B way speed: 0-200SCCM l Can insert variety of gas ( oxygen, nitrogen, argon, hydrogen, etc) |
|
Warranty |
One year limited warranty (Consumable parts such as thermocouple, door block and heating elements are not covered by the warranty) |
|
Display of fuel cell tester |

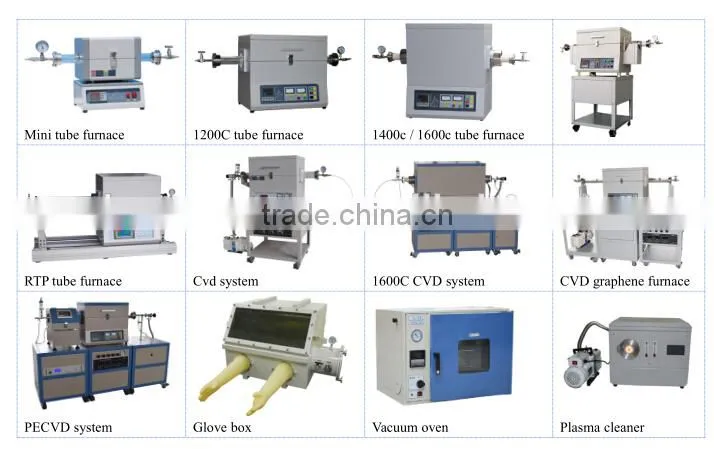

Other testing machine we supply |
Want more details? Call us: 8615639272359, or add skype:jennyhao8819
About us |
Zhengzhou CY Scientific Instrument Co., Ltd is mainly engaged in the research and development, design, manufacturing and sales of equipment used in scientific researches. Independence and innovation is the company's tenet.Our main products include: tube furnace, muffle furnace, plasma cleaner, vacuum furnace, atmosphere furnace,CVD system and customized lab equipment.Welcome you come to vist us.
