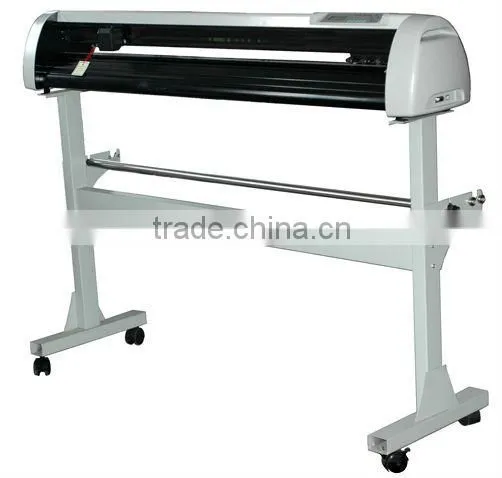

Professional Supplier White Color 1120mm Mini Vinyl Cutting Plotter

Professional Supplier White Color 1120mm Mini Vinyl Cutting Plotter photo-1
US$ 500 - 600 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
WD
Model Number:
WD-HX1120
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name WD
Model Number WD-HX1120
Size All types diameter plotter pen
Cutting Width 1010 mm
Driver High speed stepping motor, micro-step driver
Voltage AC110V /220V±10%, 50Hz/60Hz
Paper Feed Width 1120 mm
Cutting Length 1010mm limitless length
Cutting Speed 25mm-500mm/s
Repeat Cutting < +-0.1mm

Specification/Type

HX-460

HX-720

HX-800

HX-960

HX-1120

HX-1360

Maximum paper feed width

435mm

720mm

800mm

960mm

1120mm

1360mm

Real cutting range

330mm×limitless length

630mm×limitless length

720mm×limitless length

860mm×limitless length

1010mm×limitless length

1250mm×limitless length

Cutting speed

25mm/s-500mm/s

25mm/s-500mm/s

25mm/s-500mm/s

25mm/s-500mm/s

25mm/s-500mm/s

25mm/s-500mm/s

Cutter pressure

25-400g Grade 16

25-400g Grade 16

25-400g Grade 16

25-400g Grade 16

25-400g Grade 16

25-400g Grade

16

LCD

With

With

With

With

With

With

Buffer Capacity

1-4MB

1-4MB

1-4MB

1-4MB

1-4MB

1-4MB

Mechanic resolution

0.0254 mm/step

0.0254 mm/step

0.0254mm/step

0.0254mm/step

0.0254mm/step

0.0254mm/step

Interface type

RS232 serial interface

And

USB interface

RS232 serial interface

And

USB interface

RS232 serial interface

And

USB interface

RS232 serial interface

And

USB interface

RS232 serial interface

And

USB interface

RS232 serial interface

And

USB interface

Floor Stand

without

Free configuration

Free configuration

Free configuration

Free configuration

Free configuration



Features:

  1. Work independently without computer. Support SD card, work independently without computer

  2.Paper roller and steel claw shaft. Leading high-speed curve smooth cutting operation capabilities, precision

     and meticulous steel spike paper to ensure high cutting precision

  3.Strong cutting force and low noise. High strong cutting force can cut high strength grade reflective film; soft landing

     cutting method, strong cutting force with low noise.

  4.Advanced controlling system (motherboard)

     High performance 32-bit processor with ARM Cortex-M3, supports all PC operating systems Windows XP,

    Vista, Windows7 32-bit and 64-bit processor and  MAC OS systems, high-precision micro-step segmentation, digital and  intelligent protection driver;

  5.Variety of output interface .Serial ports. USB port. SD card

  6.High Capacities. 8MB Memory, which won't be random and crash when cutting large documents



TECHNICAL PARAMETERS:
