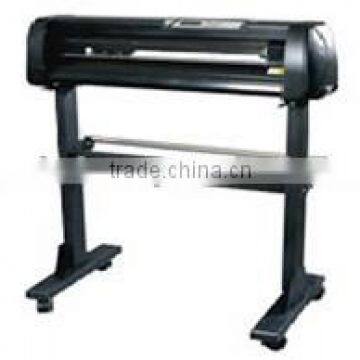

Vinyl Cutting Plotter 800mm (WD-1360H)

Vinyl Cutting Plotter 800mm (WD-1360H) thumbnail-1
Vinyl Cutting Plotter 800mm (WD-1360H) photo-1
Negotiable MOQ: 2 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
WD
Model Number:
WD-1360H
Contact Supplier Request Quote Chat Now
Hangzhou Caide Office Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai or ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name WD
Model Number WD-1360H

1) Forward direction and reverse direction paper feed
2) Emergency stop and free setting original point
3) Maximum speed of 500mm/s
4) Cutting speed and cutting pressure with memorial storage
5) Double photoelectric reset and without any collision
6) Perfect output and without any saw tooth at high speed
7) Using the most advance subdivision circuit and having low noise
8) Using switching power supply and its operation won't be influenced by voltage change
9) Circuit uses low power consumption and doesn’t need fan for  heat radiation so as to ensure long and reliable operation



Main Parameters:



Type

WD-720H

WD-800HWD-960HWD-1120HWD-1360H

Maximum paper
feed width

720mm(28.4")800mm(31.5")960mm(37.8")1120mm(44.1")1360mm(53.6")

Real cutting range

630mm(24.8")*limitless length

720mm(27.6")*limitless length

860mm(33.9")
*limitless length

1010mm(39.8")*limitless length

1250mm(49.2")*limitless length

Cutting speed

25mm/s-500mm/s(0.98"/s-19.7"/s)

Cutter pressure

25-600g Grade 16

English LCD

With
Mechanical
Resolution		0.0254 mm/step(0.001"/step)
Blade  Type
Swivel Standard blade (Compatible with Roland blade)

Interfaces

USB 2.0 and RS232 serial interface

Commands/
Language

HP-GL / DMPL compatible
BracketWith
