264 L/m Double Stage Rotary Vane Vacuum Pump with Exhaust Filter

Name: 264 L/m Double Stage Rotary Vane Vacuum Pump with Exhaust Filter
Brand: CYKY
Price: USD $1,500 - 2,500 / Set

FOB Price

USD $1,500 - $2,500 / Set

1 Set(Min.Order)

Supply Ability 569 Set / Sets per Month
Port China port
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Henan, China	Brand Name:	CYKY	Model Number:	EQ-FYP-264
Theory:	Rotary Pump	Structure:	Other, dual stage vacuum pump	Usage:	Oil
Power:	Electric	Standard or Nonstandard:	Standard	Fuel:	Other, electric
Pressure:	High Pressure	Application:	Other, vacuum pump for lab furnace

Product Description

264 L/m Double Stage Rotary Vane Vacuum Pump with Exhaust Filter

Product Description

The Double Stage Rotary Vane Pump EQ-FYP-264 utilizes proprietary advanced technique to increase performance and adaptability. The FYP-264 features a proprietary built-in gas ballest valve, dirt trap and oil scale inspection. It is the most cost-effective vacuum pump for using continuously.

Specification of the double stage rotary vane vacuum pump:

Voltage / Frequency	AC 208~240V 50Hz
Rate (m³/h)	50Hz: 16 m³/h (4.4 L/s)
Body Material	Stainless Steel
Maximum Pressure	≤ 4x10E-2 Pa or 3x10E-4 torr ( click to see conversion of pressure unit)
Power (HP)	0.75KW / 0.55KW
Motor Speed	50Hz: 1440 rpm
Volume of Oil	1000 ml ( included )
Working Temperature	5-40℃
Vacuum port	Built in KF25D standard Inlet / outlet port

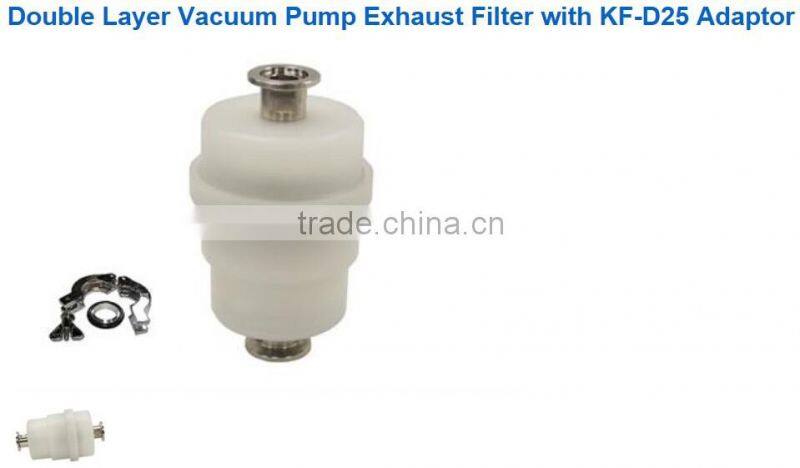

Accessories	32 Oz high quality oil is included for immediate use ( click picture below left to order spare) One Exhaust filter is included to Eliminates pump oil fumes Returns used oil to vacuum pump Traps Particles to 0.3 microns Replaceable coalescing element
Dimension (mm)	6.5" X 18" X 9.5"
Weight	21 kg (47 lbs)
Certificated	CE approval MET Certification (UL 1450) is available upon request at extra cost, please contact our sales representitives for a price quote.
Warranty	One year limited with lifetime support *(Attention:* Improper use will cause all claims for liability and warranties to be forfeited. Improper use is deemed to be all use for purposes deviating from those mentioned in below, especially: Pumping of corrosive or explosive media. Pumping of condensing vapors. Pumping of liquids. Pumping of dusts. Operation with improper high levels of insulated heat input. Operation in potentially explosive areas.
Application note	To protect environment & human health, please use Traps & Filters to minimize exhaust. To protect vacuum pump from damage by condensed vapors or small particles, please connect a cold trap or particle trap to the pump foreline

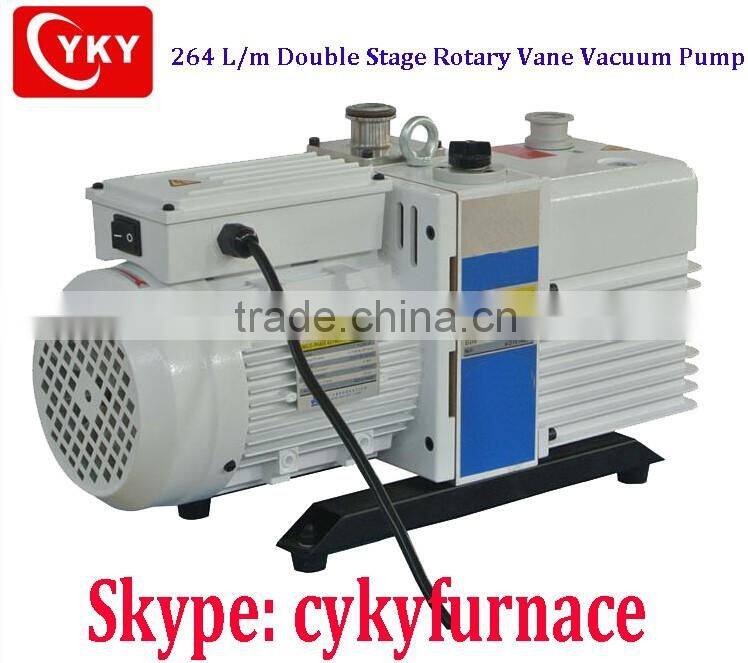

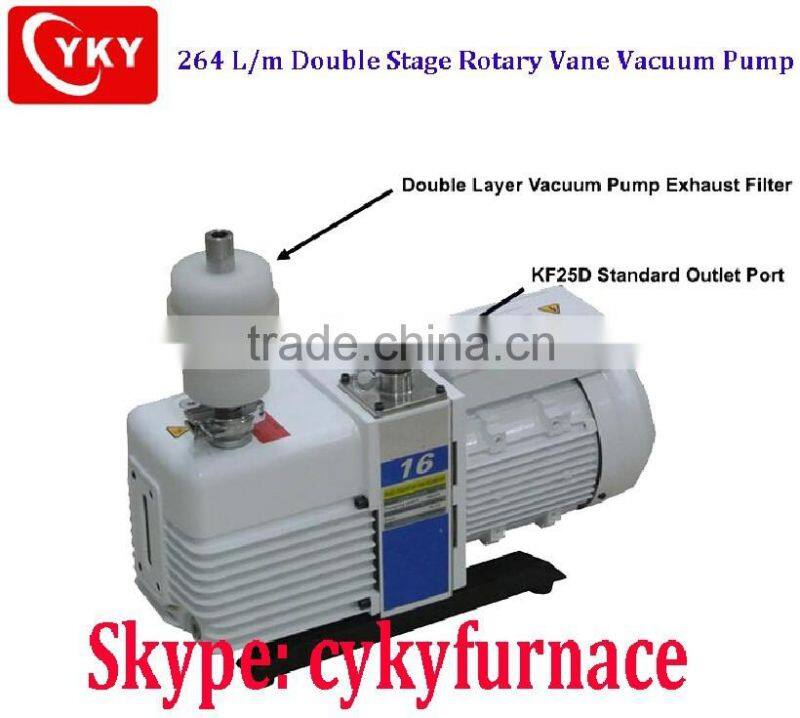

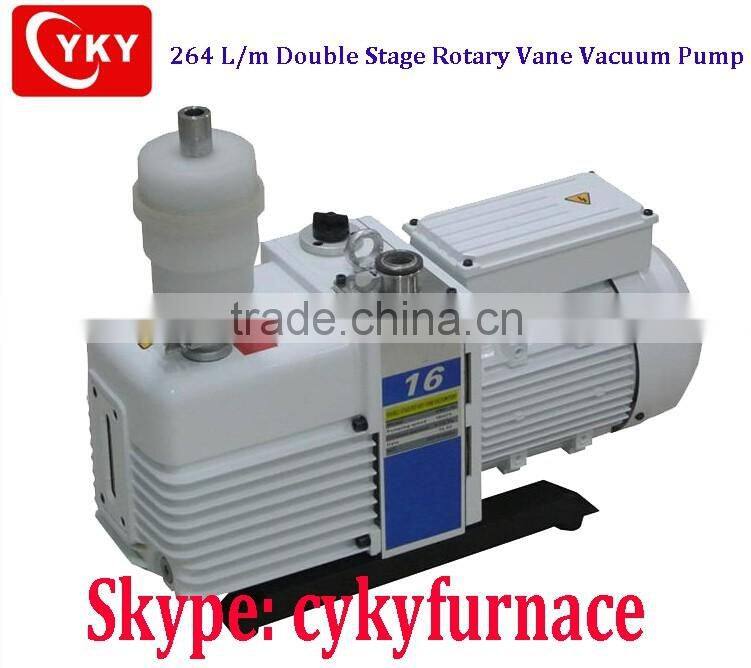

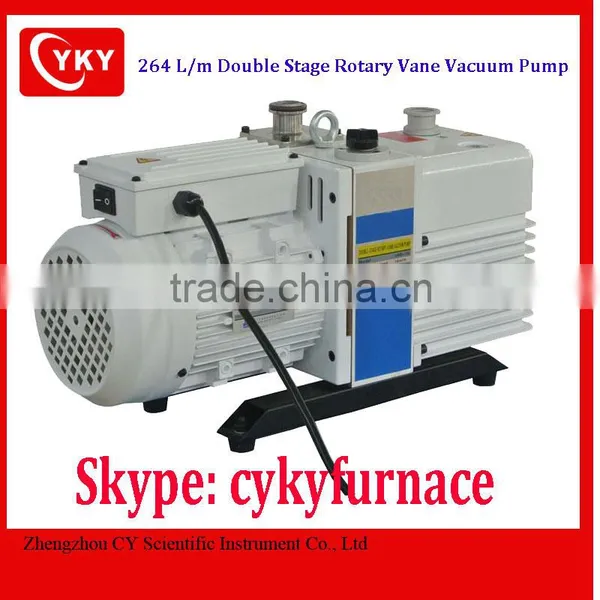

reference picture of the double stage vane rotary vacuum pump:

Zhengzhou CY Scientific Instrument Co., Ltd.- is a high and new technology enterprise registered in Zhengzhou,Henan province. Zhengzhou CY Scientific Instrument Co., Ltd is mainly engaged in researching and developing, designing and manufacturing of equipment used in scientific researches.
