Heavy -duty Good Cutting Precision Hydraulic Paper Cutting Machine ( WD-670H)
US$ 4,500 - 4,500
MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Type:
Paper Cutting Machine
Computerized:
Yes
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI OR NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hydraulic Paper Cutting Machine (WD-5208H)US$ 1 - 9,999MOQ: 1 Piece -
New Office Equipment Small Paper Cutting Machine (WD-450VG+)US$ 1 - 9,999MOQ: 1 Piece
-
18 Inch Program-Control Paper Cutting Machine (WD-4605R)US$ 1 - 9,999MOQ: 1 Piece
-
Professional Manufacturer New Design Cutting Width 80mm Hydraulic Paper Cutting Machine (WD-490H)US$ 3,300 - 3,500MOQ: 1 Piece
-
Professional Manufacturer New Design Cutting Width 80mm Hydraulic Paper Cutting Machine (WD-490R)US$ 3,000 - 3,200MOQ: 1 Piece
Condition
New
Type
Paper Cutting Machine
Computerized
Yes
Place of Origin
Zhejiang, China
Brand Name
WD
Model Number
WD-670H
Voltage
220V
Power(W)
3.1Kw
Dimension(L*W*H)
1310*990*1290mm
Weight
550kg
Certification
CE
Warranty
1 year
After-sales Service Provided
No overseas service provided

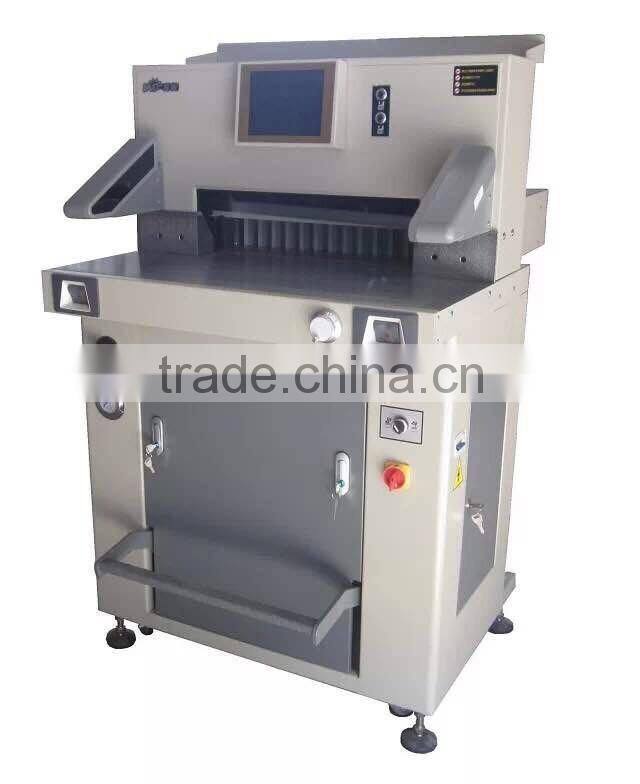

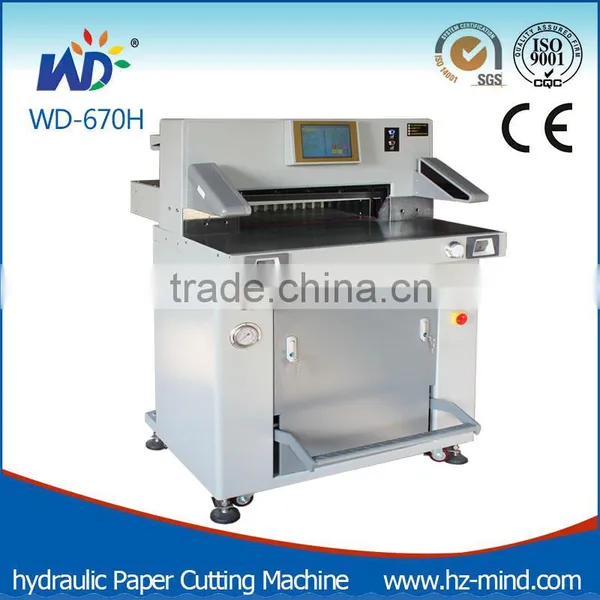

WD-670H Hydraulic Touch Screen Program-control Paper Guillotine
CHARACTERISTICS
1.Design with CE standard rd front g rating safety protection
and back protection cover conform to safe system
2.Heavy-duty stander ,symmetrical pressing paper function
and double hydraulic drive system
3.Inclined cutting technology
4.Spin cutter with outer adjusting depth curve technology device
5.Adjustable gap of blade carrier technology with patented
6.Oscillating oil cylinder technology
7.Double orbit paper-push function for guarantee of precision
8.Procedure design of circuit reset and digital displaying cutting size
9.Optical Cutting Line
10.Fashionable appearance design with patented
PARAMETERS
| Name | Paper Cutting Machine |
| Model | WD-670H |
| Max. Cutting Size | 670mm |
| Min. Cutting Length | 30mm |
| Max .Cutting Thickness | 80mm |
| Cutting Precision | ±0.3mm |
| Pressing paper Mode | Hydyaulic |
| Cutting paper mode | Hydyaulic |
| Pushing paper Mode | Automatic |
| Display | touch screen 8 inch |
| Safety | Infrared photoelectric light |
| Program | Yes |
| Power Supply | AC220V(110)±10% 50HZ(60HZ)3.1KW |
| Net Weight | 520KG |
| Gross Weight | 550kgs |
| Machine Dimension(H*D*W) | 1310*990*1290mm |
| Packing size | 1560*1290*1470mm |
| Package | Standard export package, custom suffocating free |

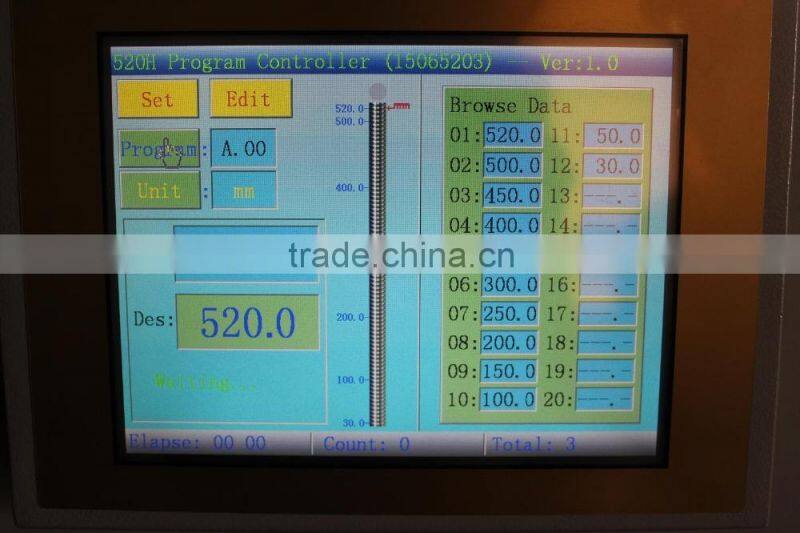

PROGRAM MODE

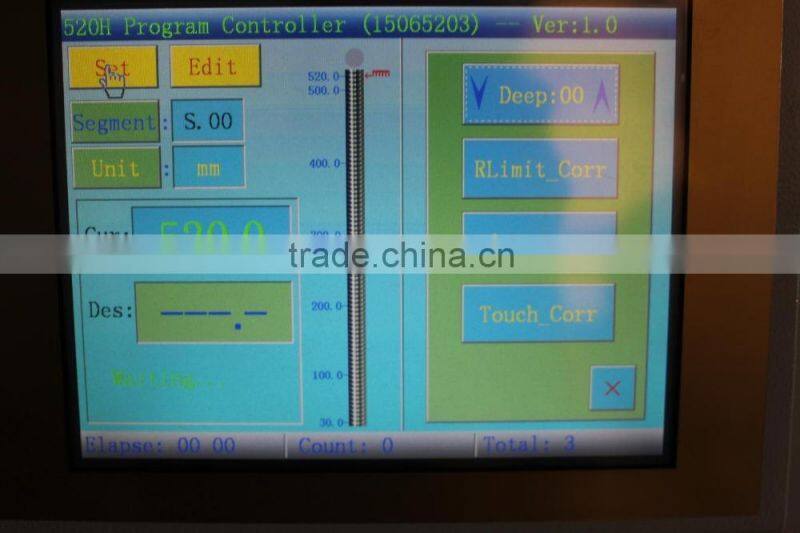

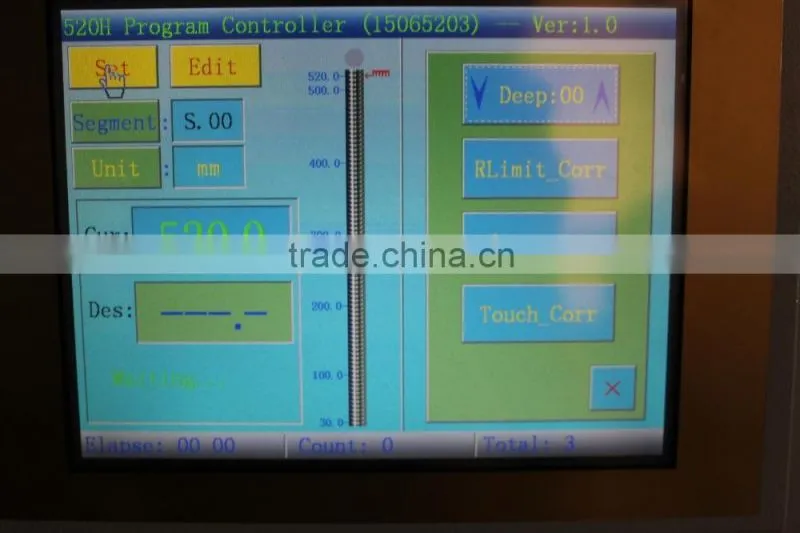

SET AND ADJUSTMENT

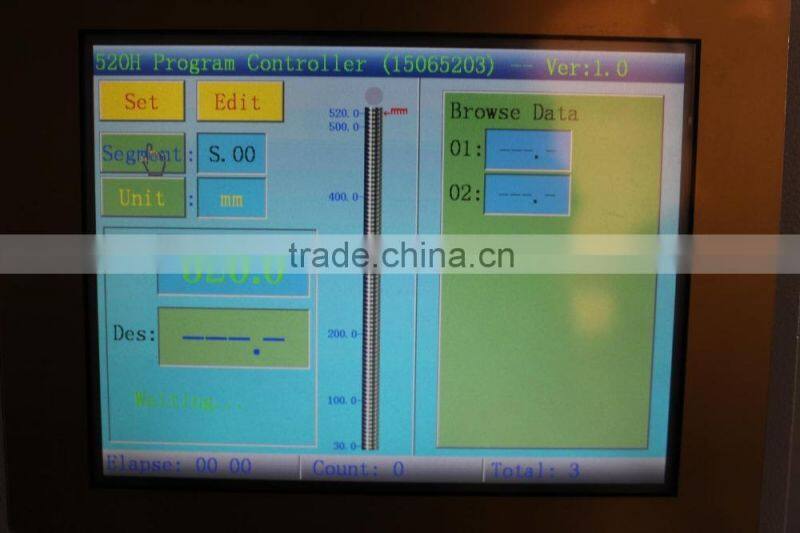

SEGMENT MODE

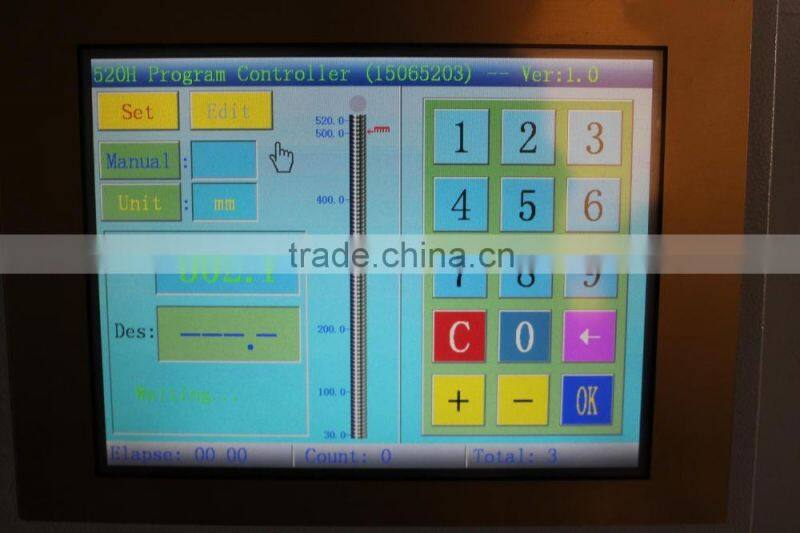

MANUAL MODE
