High Temperature Vacuum Ceramic Sintering Furnace / Metal Powder Vacuum Sintering Furnace
- China port
- T/T Credit Card
You May Like
-
Powder Metallurgy Sintering Vacuum Furnace / China Electric Vacuum Furnace
-
Vacuum Furnace for Metal Annealing, Sintering, Brazing, Hardening / China Electric Vacuum Furnace
-
Indian Loved Vacuum Furnace Equipment, Vacuum Furnace Sold With Low Price
-
Lab Used Vacuum Furnace Made in China / Vacum Heat Treatment Electric Furnace With Vacuum Pump Quality Choice
-
High Temperatue Vacuum Furnace for High Vacuum Heat Treatment
-
Energy-saving High Vacuum Degree Vacuum Heat Treatment Furnace for Metal Heat Treatment
Product Details
| Brand Name | CYKY | Model Number | CY-V1700 | |
| Place of Origin | Henan, China |
Product Description

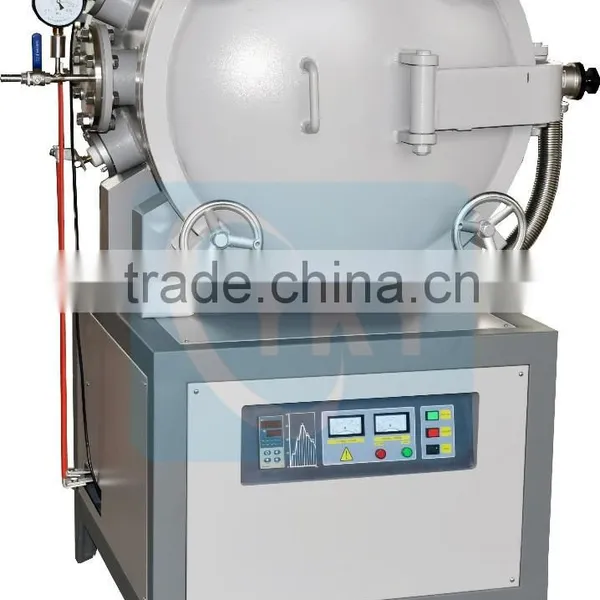

high temperature vacuum ceramic sintering furnace / metal powder vacuum sintering furnace
Description of the vacuum heat treatment furnace:
1700C vacuum furnace is mainly used in sinter cemented carbides, stainless steel line molding, stainless steel fiber, magnetic materials,and ceramic materials,and it also can be used in power metallurgy, refractory metals and magnetic material industry.We can sinter super hard, alloy,tungsten, copper, tantalum,stainless steel and rare-earth permanent magnetic material. Since the heater symmetrical distribute along the vacuum chamber, and temperature uniformity is high,you can actualize semi-automatic and automatic control according to your demands.
Outstanding features of the vacuum furnace
1.Maximum energy efficiency is achieved by surrounding chamber thermal-efficient alumina fiber ceramic insulation.
2.Heavy duty double layer structure with cooling fan. Lower teperature in outside case.
3.PID automatic control via current limiting phase angle fired the resistor, e.g. SCR(Silicon Controlled Rectifier).
4.Power control with 30 segments programmable.
Technical parameters of the vacuum heat treatment furnace/ vacuum furnace
| Model | CY-V1700 |
| Max. temperature | 1700℃ |
| Working temperature | 1600℃ |
| Temperature accuracy | +/-1℃ |
| Heating rate | 0-20C/min |
| Dimension | 200×200×300mm |
| Temperature control | Digital 50 segments programmable |
| Max. vacuum level | 7*10ˆ(-3)Pa |
| Heating element | MoSi2 rods |
| Refractory material | Alumina ceramic fiber |
| Thermal couple | B type |
| Rated power | 5KW |
| Working voltage | AC 110-480V 50-60Hz |
| Warranty | 12 month (exclusive wearing part) |
Special details can be according to your detailed requirement!!!!!!

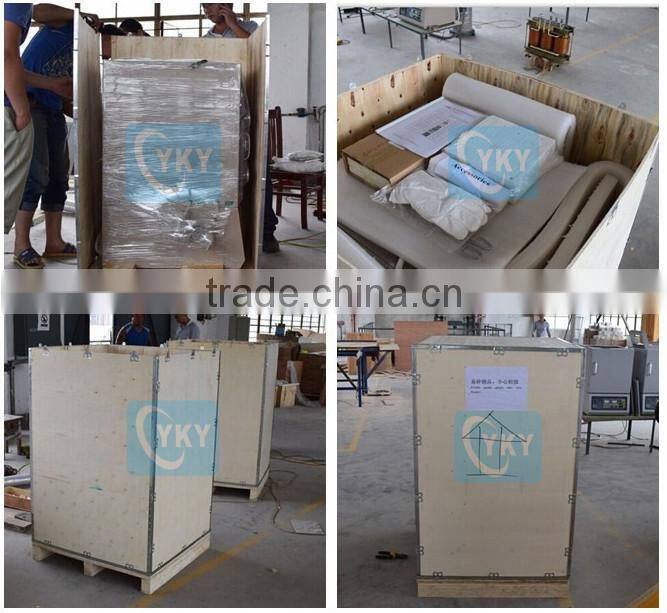

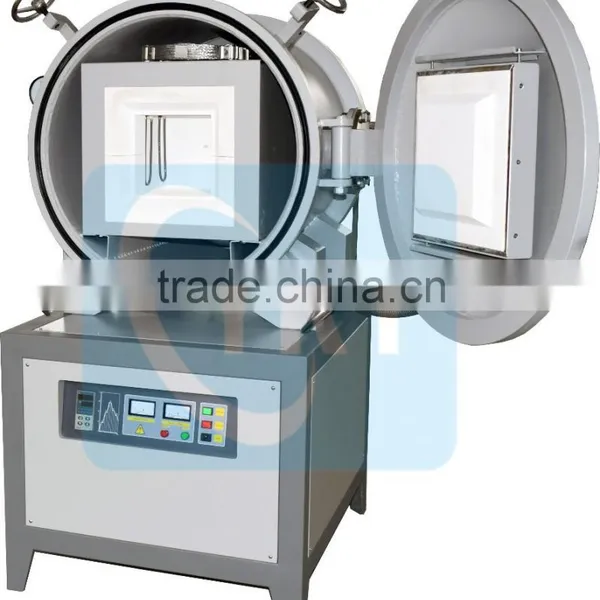

Detailed photos of the vacuum furnace:
Touch screen temperature controller vacuum furnace
Zhengzhou CY Scientific Instrument Co., Ltd.-founded in 2013 by a group of professional engineers from KJ group.CY is a high and new technology enterprise registered in Zhengzhou,Henan province. CY Scientific Instrument mainly provide regular furnace for lab. Also do customized furnace and some other related accessories and equpments in high quality and low cost precision machines for material research and R&D lab. Our mainly products include high temperature furnace,include 1200/1400/1700 degree muffle furnace,1200/1400/1700 degree tube furnace, dental furnace, vacuum furnace,gold melting furnace, SiC heating element, MoSi2 heating element, alumina tubes and crucibles, and etc. We have our own manufacturing base factory as while as many sub-contracting factories, which enable us a reliable manufacturing ability and quality control system.
