Laboratory 1200C Heat Treanment Electric Fast Annealing Vacuum Tube Furnace
Application of annealing vacuum tube furnace
1. Heat treatment under the vacuum of atmosphere surroundings
2.CVD experiment
3.Preparation of carbon nanotubes
4.Growth of graphene
5.Crystalline silicon substrate coating
6.Diffusion welding for metal materials
7.Diamond heat treatment
Features of annealing vacuum tube furnace
1.Fast heating rate:20°c/min
2.Multi-function: CVD experiment, growth of graphene, crystalline silicon substrate coating and etc
3.LCD touch screen,easy to operation and real time monitoring.
4.50 steps programmable automatic control
5.Can connect with vacuum pump
6.PC interface control
Technical parameters of annealing vacuum tube furnace
| Model | CY-O1200-80IT |
| Display | LCD touch screen |
| Chamber material | imported fiber |
| Heating element | imported alloy heating wire |
| Max.temperature | 1200℃ |
| Working temperature | ≤1150℃ |
| Heating rate | ≤20°c/min |
| Heating zone | single |
| Temperature zone length | 300/400/440mm |
| Thermostatic zone length | 200/300/350mm |
| Tube Material | high purity quartz |
| Tube Size | 50mm,60mm,80mm,100mm |
| Tube length | 1200mm |
| Flange connection | stainless steel flange |
| Control mode | PID automatic control via SCR power control |
| Temperature accuracy | ±1℃ |
| Working voltage | AC 220V 50-60Hz |
| Main power | 2.5kw |
| Packing | PLYwood box |
| Thermal couple | K type |

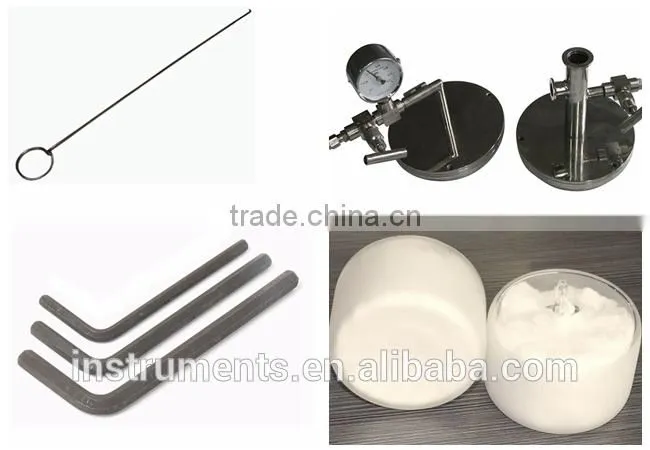

| Accessories | quartz tube 1pc, flange 1set, plug 4pcs,O-rings 8pcs, glove 1pair, alumina crucible 1set, furnace hook 1pc, manual book |

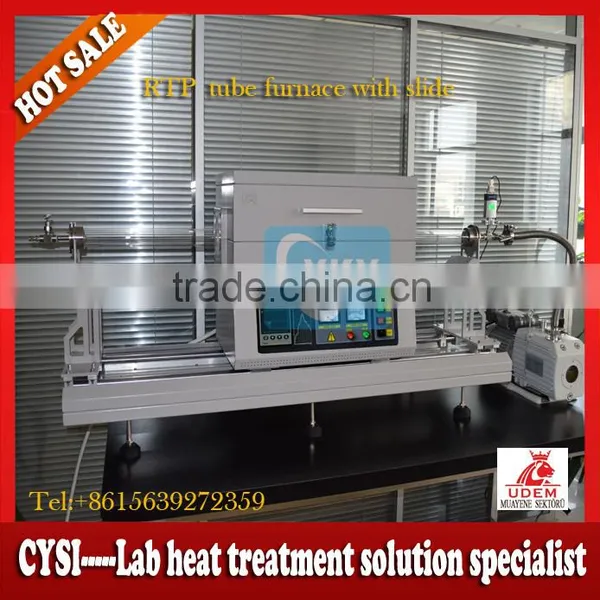

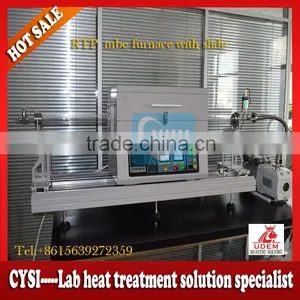

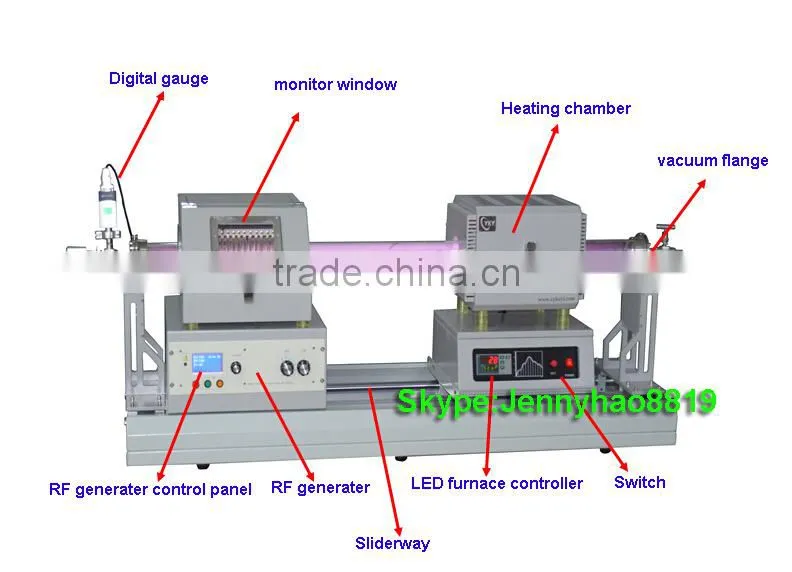

Picture of annealing vacuum tube furnace
For crystal annealing
For thin film coating
Packaging of annealing vacuum tube furnace
PLY wood box as below picture, or as customer request.
Shipping and transportation
As customer request. Generally, Our mode of transport are as by sea, by air or rail transport
Payment
T/T, L/C, WEST UNION, PAYPAL, ESCROW AND ETC
Warranty
Main product is 15 month, except wearing parts.
Factory show
Zhengzhou CY Scientific Instrument Co., Ltd is mainly engaged in the research and development, design, manufacturing and sales of equipment used in scientific researches. Independence and innovation is the company's tenet.
Show room
Contact information
Skype ID: jennyhao8819
Whatsapp/wechat/viber:008615639272359
Tel:0086-0371-55199322
Fax:0086-0371-86036875
Website:
We are always at our service in 24 hours
