Laboratory 1200C horizontal vacuum quartz tube furnace/tube furnace with touch controller
Application of tube furnace
1.CVD experiment
2.Preparation of carbon nanotubes
3.Growth of graphene
4.Crystalline silicon substrate coating
5.Diffusion welding for metal materials
6.Heat treatment under the vacuum of atmosphere surroundings
Features of tube furnace
1.Fast heating rate:20°c/min
2.Multi-function: CVD experiment, growth of graphene, crystalline silicon substrate coating and etc
3.LCD touch screen
4.50 steps programmable automatic control
5.Can connect with vacuum pump and atmosphere furnace.
6.Accept PC interface control
Technical parameters of tube furnace
Furnace parameters |
Furnace Construction |
•High purity ceramic fiber insulation (energy saving 30% and weight lighter about 30% than old furnace ). • Double layers steel casing with fan cooling, to ensure the surface of furnace below 50 °C. |
||||||||||
Chamber Size |
Φ50*1000mm, Φ60*1000mm,Φ80*1000mm,Φ100*1000mm or as customized |
|||||||||||
Power |
0.8KW ~10KW, base on the heating zone length |
|||||||||||
Max. Temperature |
1200 °C (< 2 hour) |
|||||||||||
Continuous Work Temp. |
1150 °C |
|||||||||||
Max. Heating Rate |
20 °C /min |
|||||||||||
Temperature Controller |
• PID automatic control and auto-tune function. |
|||||||||||
Temperature Accuracy |
+/- 1 °C |
|||||||||||
Heating Element |
Aludirome |
|||||||||||
Thermal Couple |
K type |
|||||||||||
Voltage |
AC 110V or AC 220V 50/60 Hz (please tell us when your place order.) |
|||||||||||
Vacuum Pump |
l AC 220V 50 Hz 1/2HP 375W l 2 Liter /S or 120 liter/m l Oil trap (inlet) and exhaust filter (outlet) are installed. l Max. vacuum: 10-2 torr l Option: For precise control of the vacuum pressure, we recommend you choose our turn-key solution EQ-VPC-MV. This is a vacuum pressure regulating system with motorized valve and gauge. It controls pressure range from 10^-6 torr ~ 760 torr.
|
|||||||||||
|
Accessories (free charge) |
|
|||||||||||
Warranty |
One year limited warranty (Consumable parts such as thermocouple, door block and heating elements are not covered by the warranty) |
|||||||||||

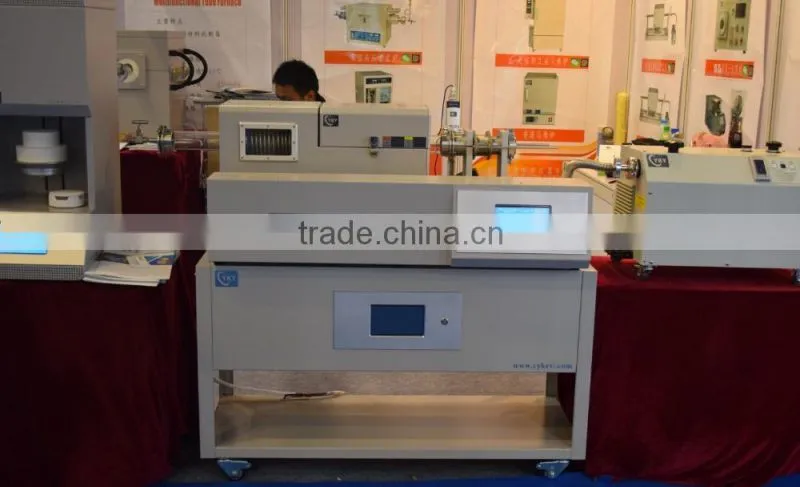

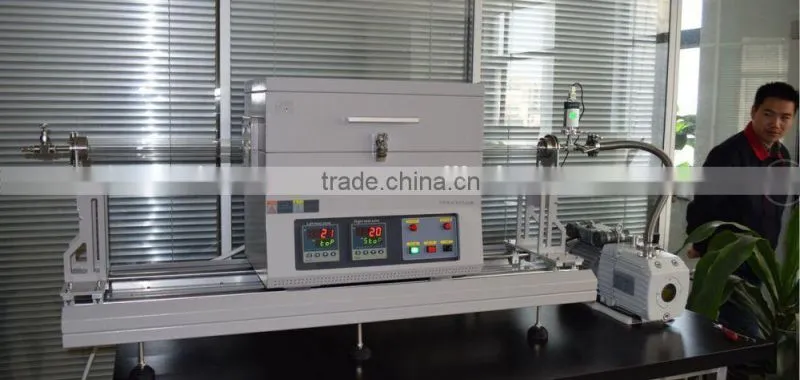

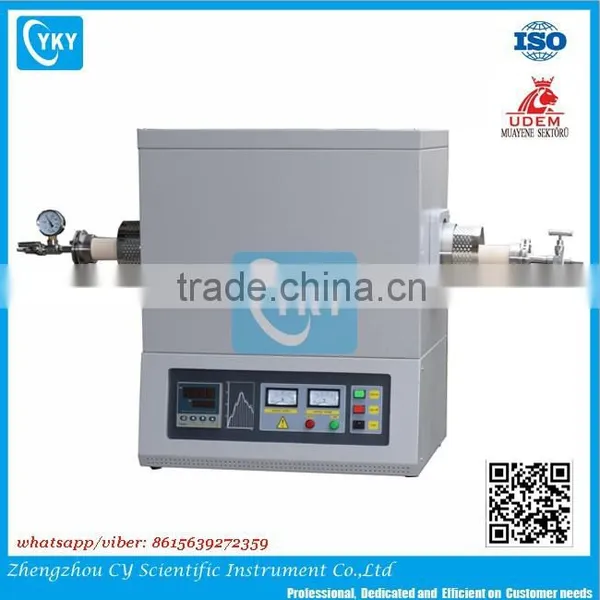

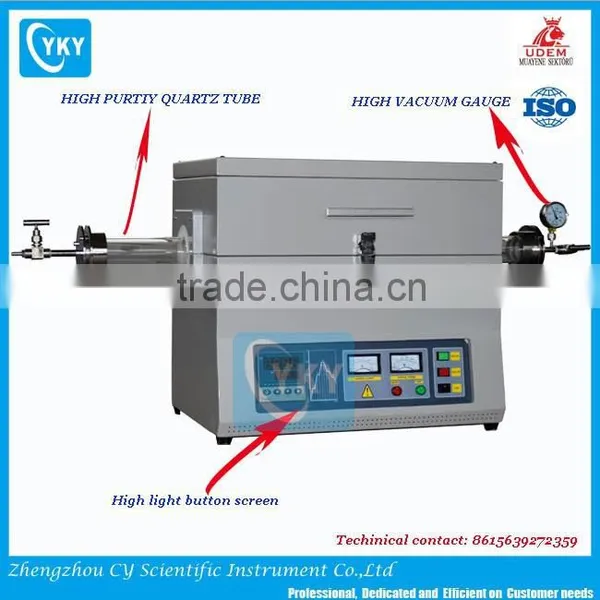

Picture of tube furnace
Packaging of tube furnace
Shipping and transportation
As customer request. Generally, Our mode of transport are as by sea, by air or rail transport
Do not hesitate, catch the chance, contact us via below"send" or via
