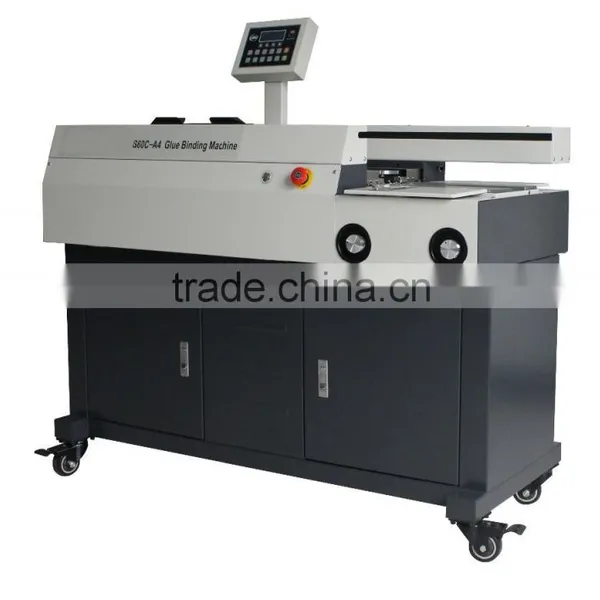

Electric A4 Three Roller With Side Gluing Perfect Binder

Hangzhou Caide Office Equipment Co., Ltd.

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Binding Machine

Computerized:

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI OR NINGBO

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Binding Machine

Computerized No

Place of Origin Zhejiang, China

Brand Name WD

Model Number WDS60CA4

Voltage 220V/110V

Power(W) 1.5Kw

Dimension(L*W*H) 1470*520*945mm

Weight 185

Warranty 1 year

WDS60C-A4

1. Feature of Automatic Perfect Book Binding Machine

1) Optimized struction design.

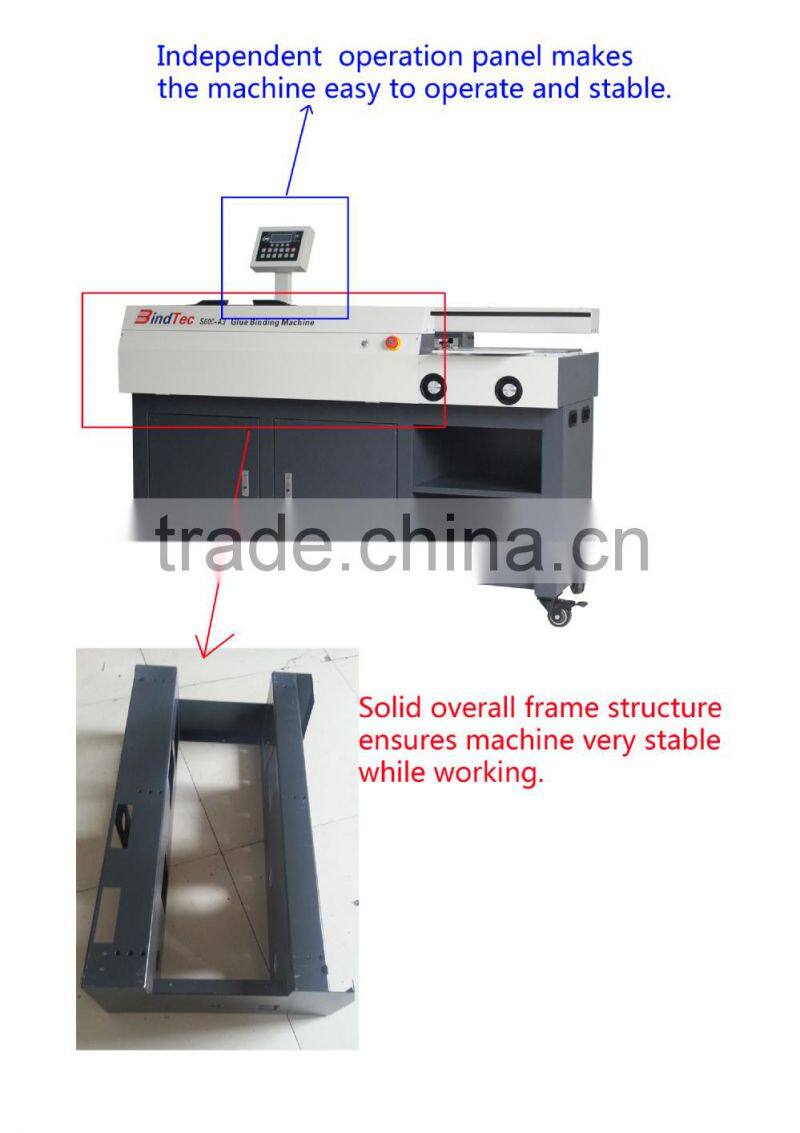

2) Simple operation panel makes the machine easy to operate.

3) LED display, multi-parameter setting.

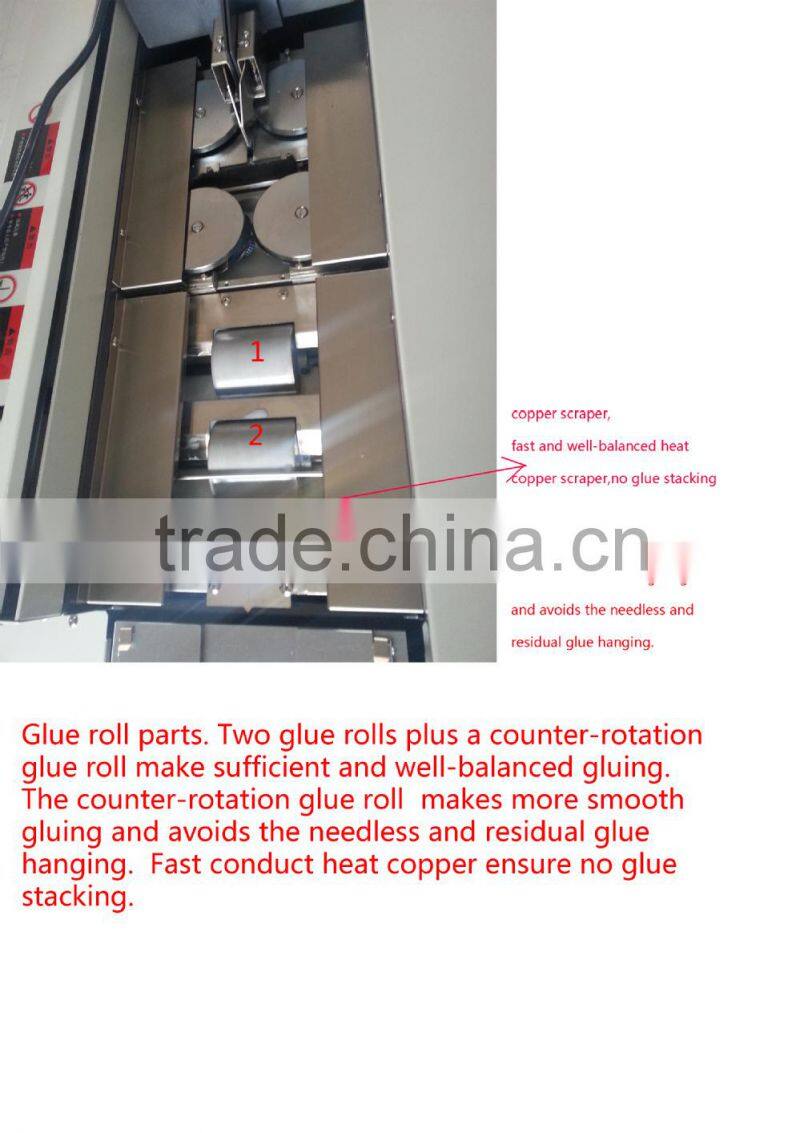

4) 3 rollers system and side glue ensure perfect and firm binding.

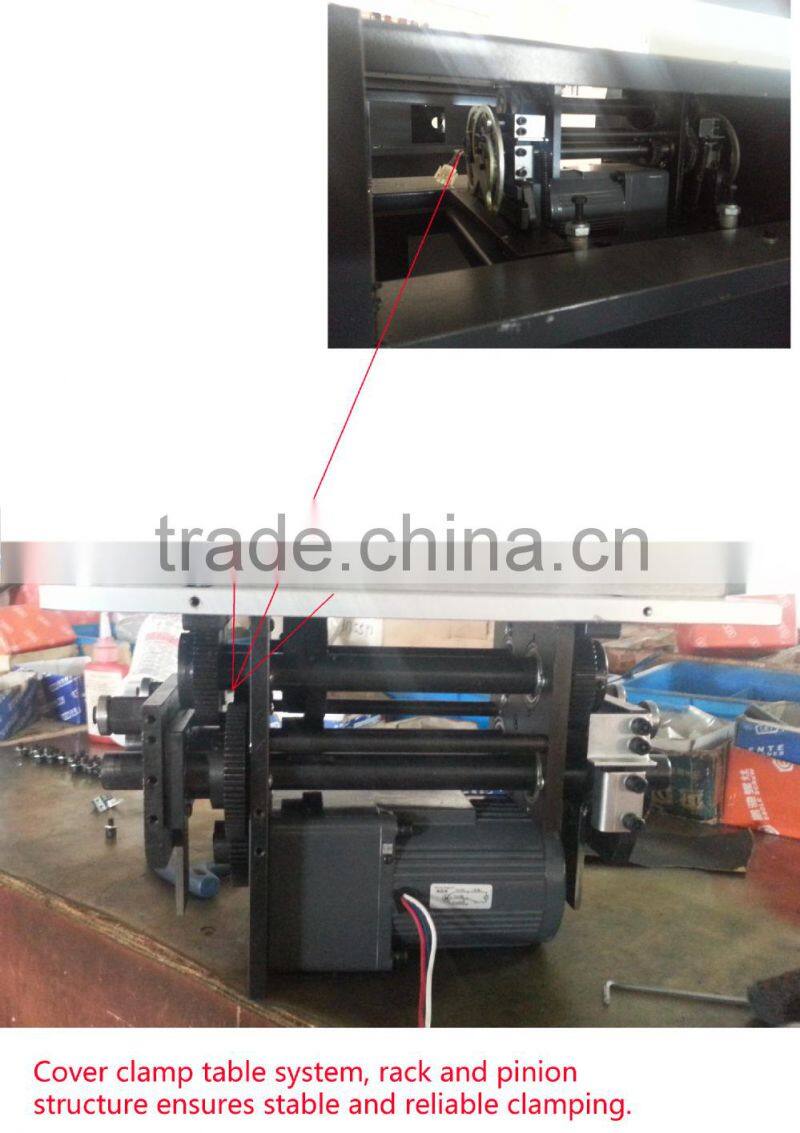

5) Adjustable function in clamp table can work on bookcover in different thickness.

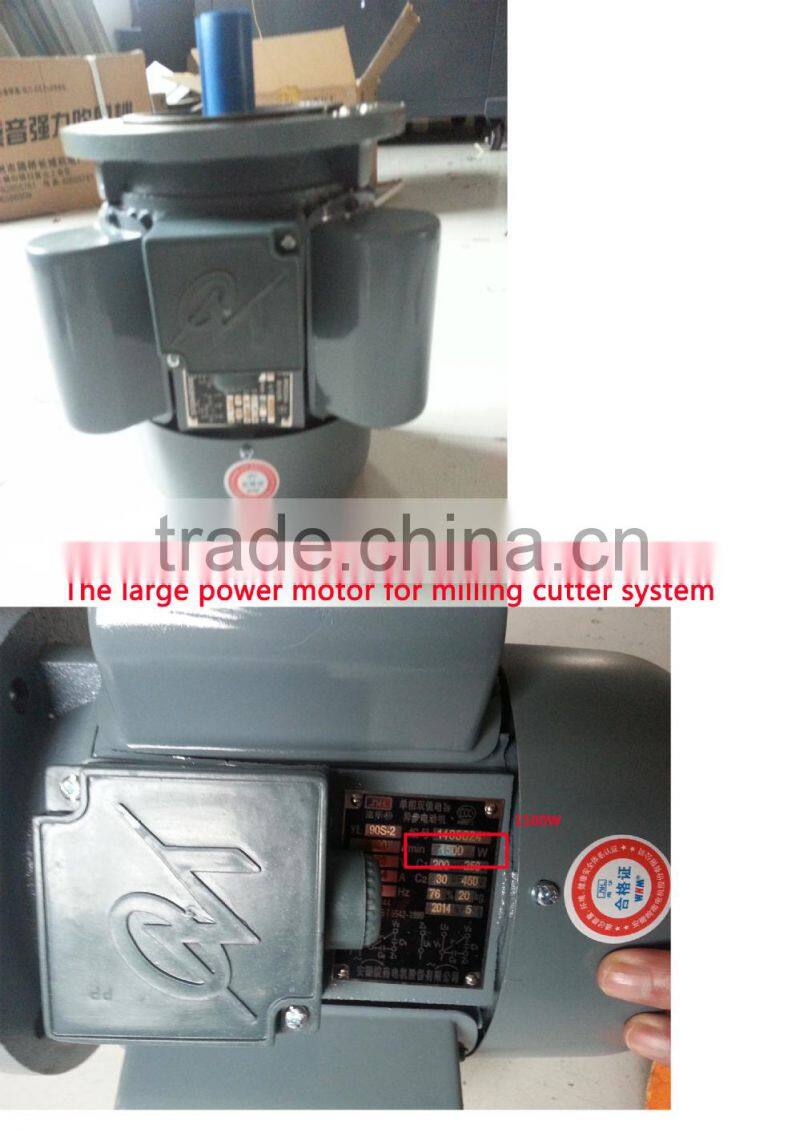

6) High-power motor, 20 teeth sun milling cutter make the perfect milling and book binding.

7) Creasing machine is optional. Independent creasing machine with 3 sets creasing rolls make easy page turning.

8) Smoke extraction device is optional. 90% smoke caused by the heated glue can be extracted.

2. Parameter of Automatic Perfect Book Binding Machine

Model	WDS60C-A3	WDS60C-A4
Max binding length	425mm	310mm
Max binding thickness	60mm	60mm
Binding Efficiency	200-400books/h	200-400books/h
Milling cutter	Sun knife+small milling cutter	Sun knife+small milling cutter
Duration for glue melt	< 35min	<35min
Glue Roller	Three rollers	Three rollers
Side Glue	YES	YES
Power	AC220V/110V±10%50HZ/60HZ 2.4KW	AC220V/110V±10%50HZ/60HZ 2.4KW
Dimension	15905201000mm	13705201000mm
Net Weight	200kg	170kg
