CY-P2L laboratory plasma surface treatment instrument
Featrues of plasma surface treatment instrument
1. Environmental technologies: plasma process is the role of gas - solid coherent reactor consumes no water resources, no need to add chemicals and no environmental pollution.
2. Wide adaptability: regardless of processing substrate type, such as metals, semiconductors, oxides, and most of the polymer material can be a good deal;
3. Low temperature: close to room temperature, particularly suitable polymer materials, have a longer retention time and a higher surface tension than the corona and flame method.
4. Multifunctions: it involves only a shallow surface of polymer materials (10 -1000A), while preserving the characteristics of the material itself can give it one or more new features;
5. Low cost: the device is simple, easy operation and maintenance, continuous operation,a few bottles of gas can replace thousands of kilograms cleaning fluid
6. The whole process technology can be controlled: all the parameters can be setted by the computer and data recording
7. Treated geometry Unlimited: Big or small, simple or complex, parts or textiles can be processed.
Technical parmaters of plasma surface treatment instrument
| Power supply: | AC220V |
| Working current: | Total working current not higher than1.2A (Not include the vacuum pump) |
| RF Power: | 200W |
| Radio frequency: | 40KHZ(offset less than 0.2Hz) |
| Frequency offset | Less than 0.2KHz |
| Characteristic impedance: | 50 Ohm,Automatic matching |
| Vacuum degree: | 30Pa—100Pa |
| Gas flow: | 10—100ml/min(Adjustable) |
| Process Control: | MCU Automatic and manual mode |
| Cleaning time: | 1-6000 secds adjustable |
| Power supply: | 10%-100% Adjustable |
| Inside chamber size | 100mm×270mm |
| Outside dimension: | 440*390*200mm |
| Weight: | 25Kg |
| Vacuum chamber temperature | Less than 65°C |
| Cooling type: | Forced cooling |
Application of plasma surface treatment instrument
1.Car industry: ignition coil engine oil seal film
2.Defense industry: Aerospace electrical connectors,Kevlar deal
3.Electronics industry: hard plastic parts, earphone, Cell phone cover
4.Medical industry: intravenous infusion, catheter treatment
5.Textile fiber,rubber and plastic industry and etc

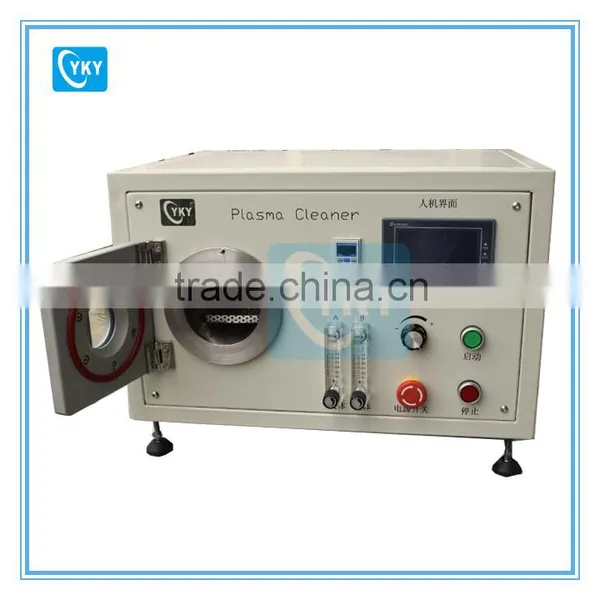

Pictures show of plasma surface treatment instrument
Packaging of plasma surface treatment instrument
PLY WOOD BOX as below picture show. or as customer request.
Shipping and transportation
As customer request. Generally, Our mode of transport are as by sea, by air or rail transport
Payment
T/T, L/C, WEST UNION, PAYPAL, ESCROW AND ETC
Warranty
Main product is 15 month, except wearing parts.
Factory show
Zhengzhou CY Scientific Instrument Co., Ltd is mainly engaged in the research and development, design, manufacturing and sales of equipment used in scientific researches. Independence and innovation is the company's tenet.
