1700C large chamber High temperature ceramic electric kiln
Application of High temperature ceramic electric kiln
1.ceramic sintering
2.vacuum sintering
3.fast annealing
ponent analysis
Featrues of High temperature ceramic electric kiln
1. Side door, easy to operate
2. high quality alumina fiber, resistance high temperature 1650 ℃
3. Programmable and PID automatic control
4. Metal key or touch panel operating interface for your option
Technical parmaters of High temperature ceramic electric kiln
| Model | CY-M1700-36L |
| Chamber model | Side Door |
| Display | LED or LCD |
| Limiting temperature | 1700℃ |
| Working temperature | ≤1650℃ |
| Heating rate | Suggestion 0~20℃/min |
| Temperature accuracy | ±1℃ |
| Inside chamber size | 600*600*600(mm) |
| Heating element | MoSi2 |
| Thermal couple | B Type |
| Temperature control | PID automatic control via SCR power control |
| Heating curves | 50 steps programmable |
| Chamber material | Alumina Fiber |
| Rated power | 9KW |
| Working voltage | AC 220V 50-60Hz |
| Packing | PLY wood box |
| Accessories | Door stopper 1 pc, glove 1pair, crucible tongs 1pc, manual book |

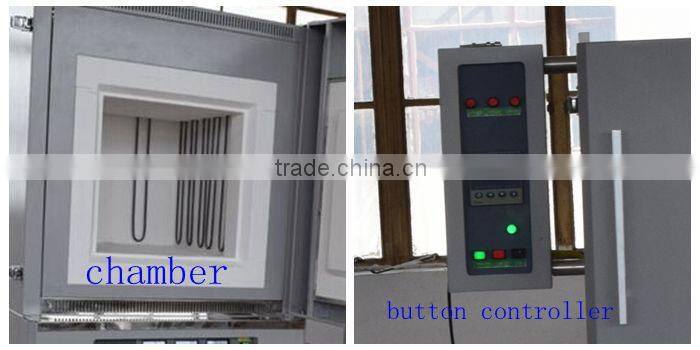

Pictures show of High temperature ceramic electric kiln
Packaging of High temperature ceramic electric kiln
PLY WOOD BOX as below picture show. or as customer request.
Shipping and transportation
As customer request. Generally, Our mode of transport are as by sea, by air or rail transport
Payment
T/T, L/C, WEST UNION, PAYPAL, ESCROW AND ETC
Warranty
Main product is 15 month, except wearing parts.
Factory show
Zhengzhou CY Scientific Instrument Co., Ltd is mainly engaged in the research and development, design, manufacturing and sales of equipment used in scientific researches. Independence and innovation is the company's tenet.
