1600 Degree MoSi2 element single phase Small furnace
Application of Small furnace
High purity fibrous alumina chamber, gas inlet and outlet ports and a 30-segment, programmable temperature controller. It is the ideal muffle furnace for preparing small-sized sample using temperatures up to 1100oC in material research and dental labs with maximum energy saving (500 - 700W only). In addition, the compact furnace can be placed into a glove box to sinter samples in a vacuumed or controlled atmosphere.
Featrues of Small furnace
1.Side door, easy to operate
2.High quality alumina fiber,good heat preservation performance
3.MoSi2 heating element, resistance high temperature 1650 ℃
4.Programmable and PID automatic control
5.Pc connection control is acceptable
Technical parmaters of Small furnace
| Model | CY-M1200-12LT |
| Chamber model | Side Door |
| Display | LED |
| Limiting temperature | 1700℃ |
| Working temperature | ≤1650℃ |
| Heating rate | Suggestion 0~20℃/min |
| Temperature accuracy | ±1℃ |
| Inside chamber size | 200×200×200(mm) |
| Heating element | MoSi2 |
| Thermal couple | B Type |
| Temperature control | PID automatic control via SCR power control |
| Heating curves | 30 steps programmable |
| Chamber material | Alumina Fiber |
| Rated power | 2.5KW |
| Working voltage | AC 220V single phase |
| Packing | PLY wood box |
| Accessories | Door stopper 1 pc, glove 1pair, crucible tongs 1pc, manual book |

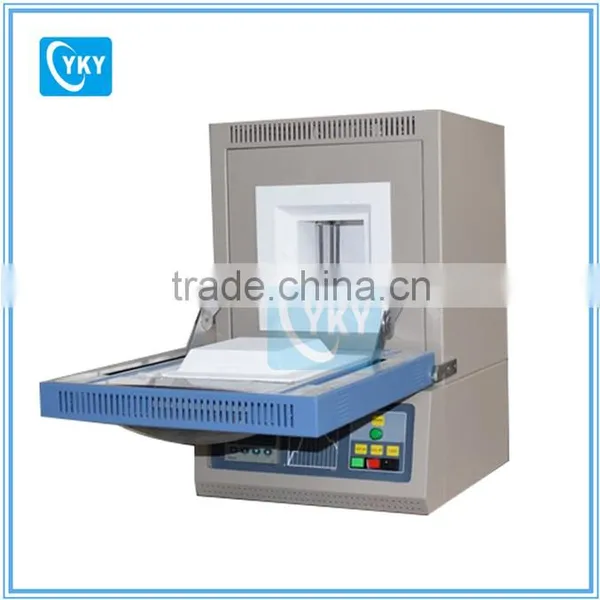

Pictures show of Small furnace
Packaging of Small furnace
PLY WOOD BOX as below picture show. or as customer request.
Shipping and transportation
As customer request. Generally, Our mode of transport are as by sea, by air or rail transport
Payment
T/T, L/C, WEST UNION, PAYPAL, ESCROW AND ETC
Warranty
Main product is 15 month, except wearing parts.
Wearing parts as below:
Door stopper 1 pc, glove 1pair, crucible tongs 1pc, manual book
Factory show
Zhengzhou CY Scientific Instrument Co., Ltd is mainly engaged in the research and development, design, manufacturing and sales of equipment used in scientific researches. Independence and innovation is the company's tenet.
