1200C Lift Porcelain Furnace with PID Touch Screen Programmable Control
Technical parameters of Lift Porcelain Furnace
Model |
CY-1200D |
Display |
LCD touch screen |
Limiting temperature |
1200℃ |
Working temperautre |
≤1100℃ |
Heating rate |
0-140℃/min |
Temperature accuracy |
±1℃ |
Chamber size |
Φ100*90mm |
Heating element |
Aludirome |
Thermal couple |
K type |
Temper. control |
PID automatic control via SCR power control |
Heating curves |
50steps programmable |
Sealing type |
bottom type door |
Max.power of furnace |
1.6kw |
Working voltage |
AC 220V 50/60Hz, or as customized |
Max.gas flow |
119L/min |
Limited vacuum degree |
-700mmHg; (-93kpa) |
Working power |
0.40kw |
Intake-exhaust size |
1/4" |
Noise |
58dB |

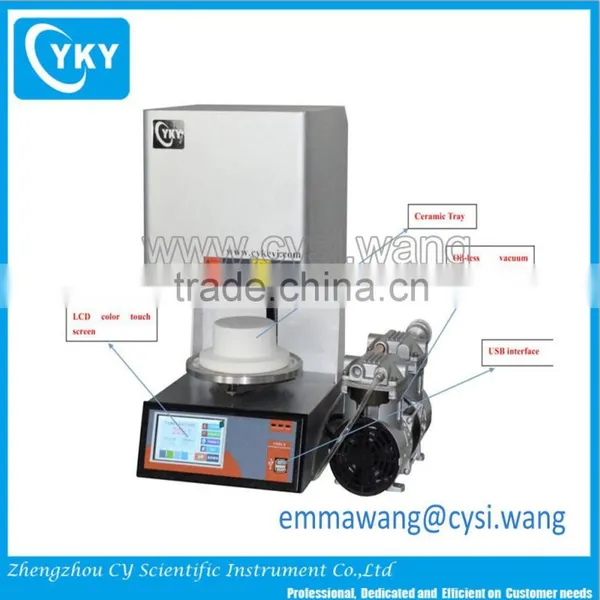

Detailed Images of Lift Porcelain Furnace
Quality certification
Details of our company
Zhengzhou CY Scientific Instrument Co., Ltd. is mainly provide regular furnace for lab.Our mainly products include high temperature furnace,include 1200/1400/1700 degree muffle furnace,1200/1400/1700 degreetube furnace, dental furnace, vacuum furnace,gold melting furnace, SiC heating element, MoSi2 heating element, alumina tubes and crucibles, and etc. We also do customized furnace and some other related accessories and equpments in high quality and low cost precision machines for material research and R&D lab.
Our other products
Our service
1.Reply your inquiry in 24 working hours.
2.We are a manufacturer so that we have the punctual delivery time.
3.Rich experience. We do OEM services.Our customers are all over the world like USA, UK, Russia, Korea, Southeast Asia, etc. so that we are quite experienced.
4.Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
Payment : T/T, L/C, WEST UNION, PAYPAL, CREDIT,CASH,ESCROW AND ETC.
Warranty : Main product is 12month, except wearing parts.
Packing
If you have any questions for our Lift Porcelain Furnace,please do not hesitate to contact us!
We are always at service in 24 hours!
