Featrues of metal melting electric furnace
1.The max. temperature is 1700℃, working temperature can be 1600℃.
2.Chamber material is imported fiber.
3.Side door,easy to operate.
4.Metal key and touch screen are optional.
5.PID automatic control and programmable.
Technical parmaters of metal melting electric furnace
| Model | CY-M1700 |
| Display | LED |
| Max. temperature | 1700°C |
| Working temperature | ≤1600°C |
| Heating rate | Suggestion 0-20°C/min |
| Temperature accuracy | +/-1°C |
| Inside chamber | 150*150*200mm |
| Heating element | 1850 type heating rod |
| Thermal couple | B Type |
| Tank capacity | 4.5L |
| Over temperature alarm | yes |
| Over current protection | yes |
| Chamber material | imported fiber |
| Temperature control | PID automatic control via SCR power control |
| Heating curves | 50 steps programmable |
| Rated power | 10KW |
| Working temperature | AC 110-480V 50-60Hz |
| Accessories | Door stopper 1 pc, bearing board 1 pc, glove 1pair, crucible tongs 1pc, crucible 2pcs, manual book |

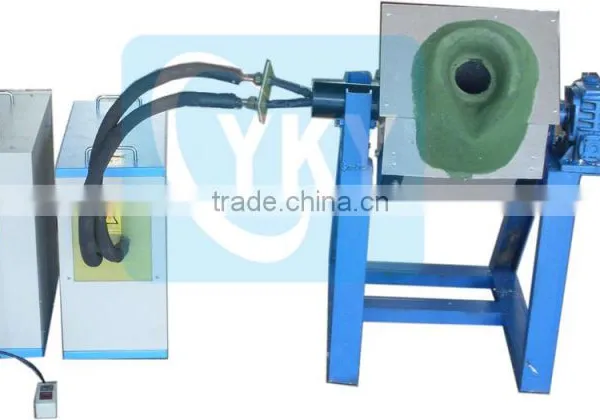

Pictures show of metal melting electric furnace
Payment
T/T, L/C, WEST UNION, PAYPAL, ESCROW AND ETC
Warranty
Main product is 12 month, except wearing parts.
Wearing parts as below:
Door stopper, glove, crucible tongs,crucible, bearing board.
Zhengzhou CY Scientific Instrument Co., Ltd is mainly engaged in the research and development, design, manufacturing and sales of equipment used in scientific researches. Independence and innovation is the company's tenet.
We are looking forward your order of metal melting electric furnace
