Vertical Bench-Top Lab Planetary Ball Mill 2L Small Ball Grinding Machine
Vertical Bench-Top Lab Planetary Ball Mill 2L Small Ball Grinding Machine
Features of Lab Planetary Ball Mill
1.Elegant design, easy to operate
2.Ideal for wet or dry grinding application
3.Automatic and programmable control with LED display
4.Multiple grinding modes to choose
5.High uniformity and excellent repeatability

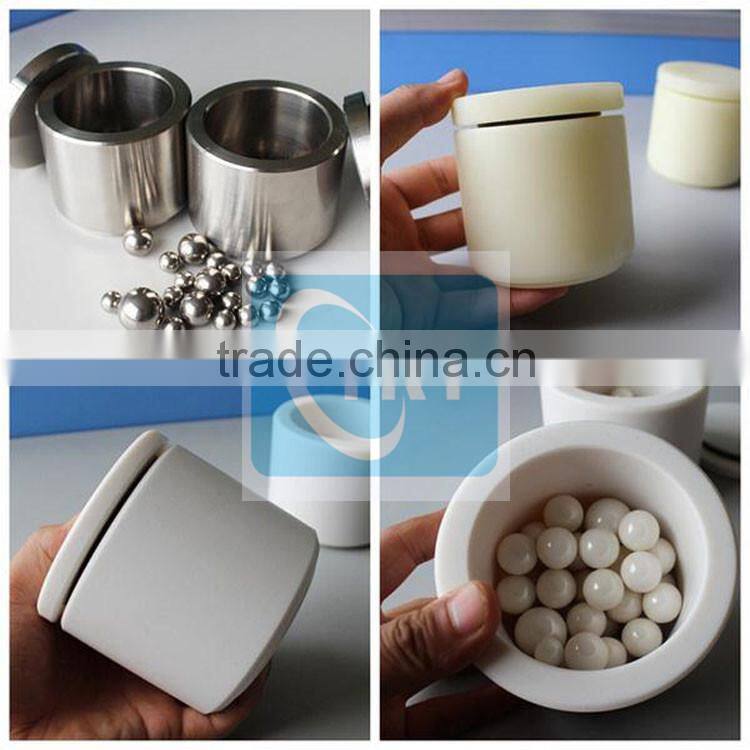

6. Large range of materials available for grinding media
7.Fast rotational speed, high efficiency and fine granularity
8.Programmable interval and pause times
9.Four samples with different sizes and materials in one experiment
10.Cooling of the grinding chamber with a built-in fan for long grinding times
Technical Data of Lab Planetary Ball Mill
Working Principle | impact and friction force |
Item No. | PBM-V-0.4L |
Compatible Grinding Jars | (250ml~500ml) * 4 |
Max Feeding Capacity | 2/3 capacity of the grinding jar |
Operation Mode | 2 or 4 grinding jars working simultaneously |
Feeding Granularity | Soil materials < 10mm, others materials < 3mm |
Discharging Granularity | down to 0.1μm |
Sample Type | hard, medium-hard, soft, fibrous, brittle, moist - dry or wet |
Rotational Speed of Grinding Jar | 960rpm |
Rotational Speed Ratio | 1 : 2 |
Drive Mode | gear drive and belt drive |
Speed Control | stepless speed regulation |
Electrical Details | 110V/220VAC, 50Hz, 0.75KW |
Max Continuous Grinding Time | 80hours |
Weight | 45/70KG |
Dimension (L*W*H) | 502*300*296mm |
Noise Level | <70dB |

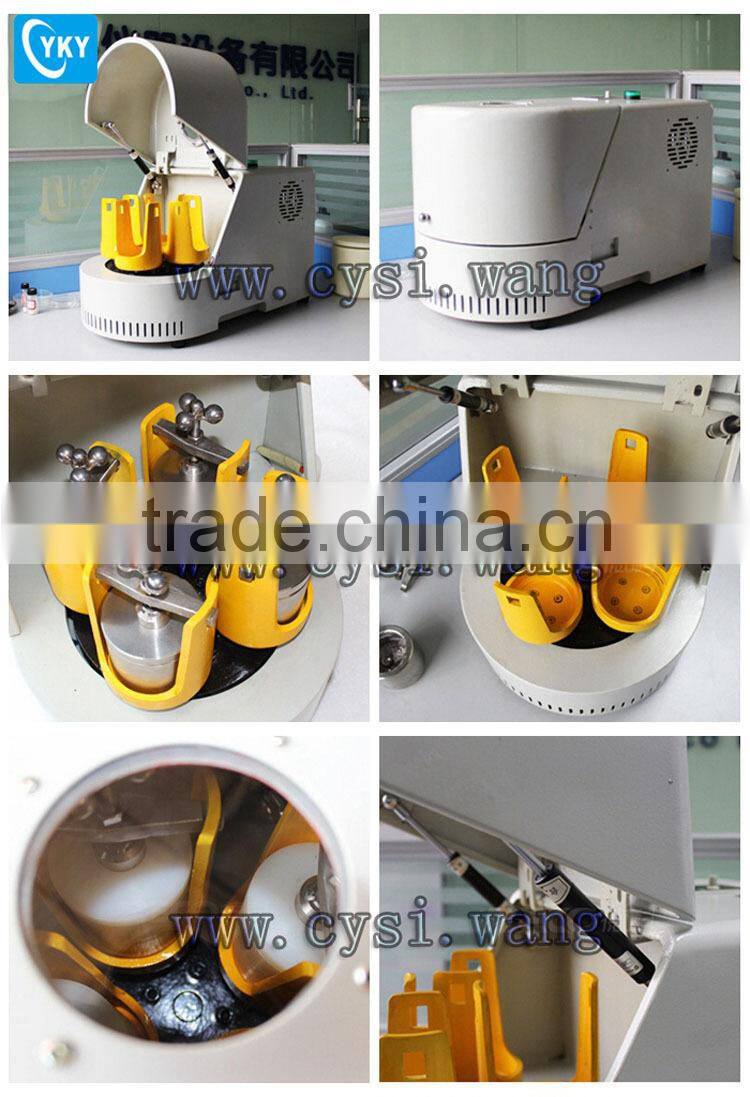

Detailed Images of Lab Planetary Ball Mill
Details of our company
Zhengzhou CY Scientific Instrument Co., Ltd. is mainly provide regular furnace for lab.Our mainly products include high temperature furnace,include 1200/1400/1700 degree muffle furnace,1200/1400/1700 degreetube furnace, dental furnace, vacuum furnace,gold melting furnace, SiC heating element, MoSi2 heating element, alumina tubes and crucibles, and etc. We also do customized furnace and some other related accessories and equpments in high quality and low cost precision machines for material research and R&D lab.
Our other products
Our service
1.Reply your inquiry in 24 working hours.
2.We are a manufacturer so that we have the punctual delivery time.
3.Rich experience. We do OEM services.Our customers are all over the world like USA, UK, Russia, Korea, Southeast Asia, etc. so that we are quite experienced.
4.Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
Payment : T/T, L/C, WEST UNION, PAYPAL, CREDIT,CASH,ESCROW AND ETC.
Warranty : Main product is 12month, except wearing parts.
Packing
If you have any questions for our Lab Planetary Ball Mill,please do not hesitate to contact us!
We are always at service in 24 hours!
