Home > Manufacturing & Processing Machinery > Mixing Equipment > Mixing Tank > Laboratory Automatic Vertical Powder Mixer

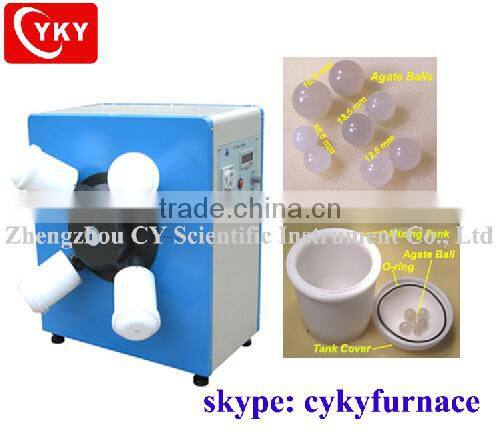

Laboratory Automatic Vertical Powder Mixer

Name: Laboratory Automatic Vertical Powder Mixer
Brand: CYKY
SKU: 112051097
Availability: InStock

Laboratory Automatic Vertical Powder Mixer thumbnail-1

Laboratory Automatic Vertical Powder Mixer photo-1

US$ 1,000 - 3,300 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Mixer Type:

Other, Automatic

Product Type:

Detergent Powder

Contact Supplier Request Quote Chat Now

Zhengzhou CY Scientific Instrument Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Mixer Type Other, Automatic

Product Type Detergent Powder

Application Powder

Additional Capabilities Milling

Place of Origin Henan, China

Brand Name CYKY

Model Number CY-MSK-SFM-2

Max. Loading Capacity 0.5 micron

Voltage AC220V, 50/60Hz

Power(W) 200W

Dimension(L*W*H) 450mm(L) x 490mm(W) x 530mm(W)

Certification CE

Warranty 1 year, 1 year

After-sales Service Provided Engineers available to service machinery overseas

laboratory automatic vertical powder mixer

Product Description

Discription of the desktop vertical automatic mixer:

CY-MSK-SFM-2 four-tank automatic mixer can wet mix any powder materials, such as ceramic powder, oxide powder, and other inorganic powders. It combines multiple movements, including master plate rotating, tank self-rotating and gravity, making mixing and grinding material very efficient at low speed without over-heated. Water-tight nylon tanks allow you to mix chemicals with liquid solution. The mixer/mill can grind powder to particle size below

0.5 micron by adding suitable milling balls inside tank.

Specification of the desktop vertical automatic mixer:

Voltage	Default AC220V, 50/60Hz. If using AC110V we will attach a 500W transfer in the package. Please select the voltage in the option bar. 220V AC Power plug is not included.
Power	200W
Movement	Efficient grinding and mixing via movement in three dimensions: major platen rotation, individual tank rotating, and up-down gravity
Speed	Adjustable by controlling DC motor
Convey	Low noise nylon gears
Final Partical Size	<0.5 micron
Rotary Rate	Main plate rotation in cycle: 0-100 rpm Mixing tank self-rotation: 0-300 rpm The ratio of main cycle speed and tank rotation speed: 1:3
Digital control	Digital display the speed of tank self rotation in rpm Running time can be set up from 1-999 minutes
Tank (Jar)	4 nylon tanks 1000ml (jar), water-proof by rubber O ring, are included in standard package Extra jar set (4 per set) is available on request
Milling balls	Four sets of agate milling balls included (96 balls in total) in standard package with various sizes as below:ZrO milling balls with different size are available upon request o 19.5 mm dia. ball, 16 balls included o 14.5 mm dia. ball, 16 balls included o 11.5 mm dia. ball, 16 balls included o 10.0 mm dia. ball, 48 balls included
Warranty	One year limited warranty with lifetime technical support Consumable parts are not covered by the warranty
Compliance	CE Certified
Product Dimensions	450mm(L) x 490mm(W) x 530mm(W) (17.7" x 19.3" x 20.9")
Net Weight	55 kg (121 lbs)
Application Notes	In order to mill efficiently, never fill sample more than 1/3 volume of jar Warning: Must place 2 jars or 4 jars with similar weight in the ball mill to keep balance during rotation, otherwise unbalance rotation, especially one jar, may damage the machine
Shipment Dimension	45" x30" x 38"
Shipment weight	180 lbs
