5L Electric Vacuum Mixer With Single Axis Helical Blade and Water Cold Tank CY- MSK-SFM-6E

Name: 5L Electric Vacuum Mixer With Single Axis Helical Blade and Water Cold Tank CY- MSK-SFM-6E
Brand: CYKY
SKU: 112051135
Availability: InStock

5L Electric Vacuum Mixer With Single Axis Helical Blade and Water Cold Tank CY- MSK-SFM-6E thumbnail-1

5L Electric Vacuum Mixer With Single Axis Helical Blade and Water Cold Tank CY- MSK-SFM-6E photo-1

US$ 1,000 - 4,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Mixer Type:

Agitator

Product Type:

Other, vacuum mixer

Contact Supplier Request Quote Chat Now

Zhengzhou CY Scientific Instrument Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Mixer Type Agitator

Product Type Other, vacuum mixer

Application Powder

Additional Capabilities Drying

Place of Origin Henan, China

Brand Name CYKY

Model Number CY-MSK-SFM-6E

Voltage 208-240VAC, 208-240VAC

Power(W) 750W

Dimension(L*W*H) 580mm(L) x 320mm(W) x 1340mm(H)

Certification CE

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

5L Electric Vacuum Mixer with Single Axis Helical Blade and Water Cold Tank CY- MSK-SFM-6E

Product Description

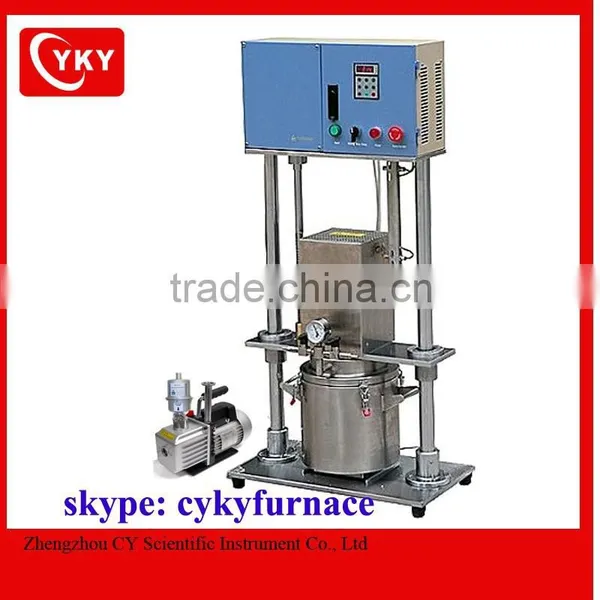

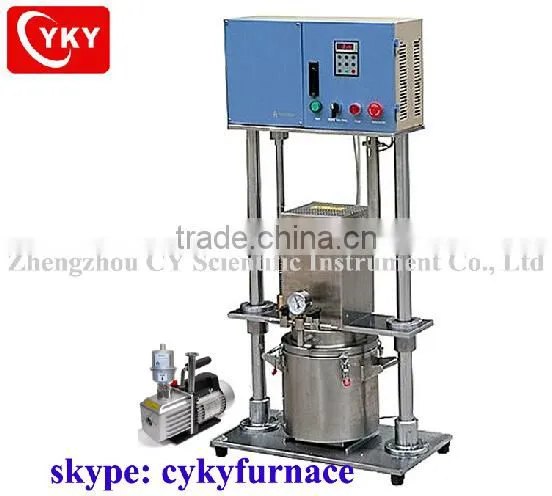

Brief introduction of the 5L Electric Vacuum Mixer with Single Axis Helical Blade and Water Cold Tank

MSK-SFM-6E (updated from MSK-SFM-6 from 10/20/03) is designed for making large batches (5 liters)

of chemical compounds via blending and mixing in a single container under vacuum driven only by electricity.

It is programmable in speed, time, and rotational direction, and has a stainless steel mixing tank implemented with water cooling to maintain an

efficient mixing process.

This instrument is excellent for preparing LiCoO3, LiFePO4, Phosphor and various ceramic slurries where gas bubbles must be kept at minimum.

The reduction of gas bubbles will result in better dispersion and uniformity of the processed materials.

Specification of the 5L Electric Vacuum Mixer with Single Axis Helical Blade and Water Cold Tank

Features	5-liter, 304 stainless steel container with dual layer water cooling jacket. Advanced sealing mechanism helps maintain vacuum pressure up to 12 hours. Container is opened and closed by an electric motor; the need for an additional pneumatically driven device is eliminated from this operation. Programmable controller for adjusting the time, speed, and rotational direction settings.
Input Power Requirements	208-240VAC single Phase, 50/60 Hz (built-in frequency converter to ensure compatibility with both frequencies) 30A Max
Motor Output	750 W ( 1 Hp)
Rotor Rod Speed	0 -1400 RPM variable
Mixing Blade Speed	10 - 110 RPM adjustable
Lifting Mechanism	Electric motor (no air compressor or pump needed )
Container & Blades	Three different mixing blades are included for immediate use: 1. Helical Mixing Blade (120mm H x160 mm Dia.) 2. Propeller Mixing Blade 3. Turbine Mixing Blade Mechanical Pressure Gauge and two 1/4'' gas inlet and outlet on the front for connection of gas source(s) - please click the last picture from above for details Container capacity: 5 Liter. Warning: MSK-SFM-6E is suitable for wet blending and mixing only is not suggested for use with dry mixing or ball milling.
Water Cooling Requirement	16 L/min water flow is required to cool mixing tank 1/4'' water cooling inlet and outlet - connected to built-in cooling jacket - on the back of the mixing tank for water hose connection A recirculating water chiller is recommended for saving water (not included)

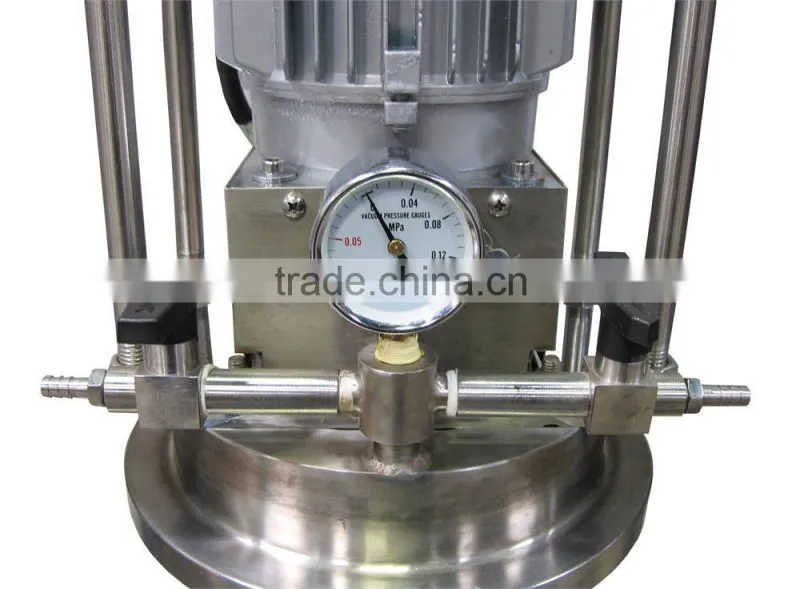

Vacuum Pump	Single Step Rotary Vane Vacuum Pump with advanced exhuast filter is included for immediate use Vacuum gauge is built in with minimum vacuum level -0.1 MPa
304SS Container Size	270mm O.D. x 210mm I.D. x 230mm H
Instrument Dimensions	580mm(L) x 320mm(W) x 1340mm(H)
Shipping Dimensions	700mm(L) x 600mm(W) x 1500mm(H)
Net Weight	119 kg (262 lbs)
Shipping Weight	140 kg (310 lbs)
