Laboratory Used 5L Electric Vacuum Mixer

Name: Laboratory Used 5L Electric Vacuum Mixer
Brand: CYKY
SKU: 112051149
Availability: InStock

Zhengzhou CY Scientific Instrument Co., Ltd.

US$ 1,000 - 4,000 MOQ: 1 Set

Key Specifications

Condition:

New

Mixer Type:

Agitator

Product Type:

Other, vacuum mixer

Payment & Shipping

Payment Methods:

Port of Shipment:

China port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Mixer Type Agitator

Product Type Other, vacuum mixer

Application Powder

Additional Capabilities Drying

Place of Origin Henan, China

Brand Name CYKY

Model Number CY-MSK-SFM-6E

Voltage 208-240VAC, 208-240VAC

Power(W) 750W

Dimension(L*W*H) 580mm(L) x 320mm(W) x 1340mm(H)

Certification CE

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

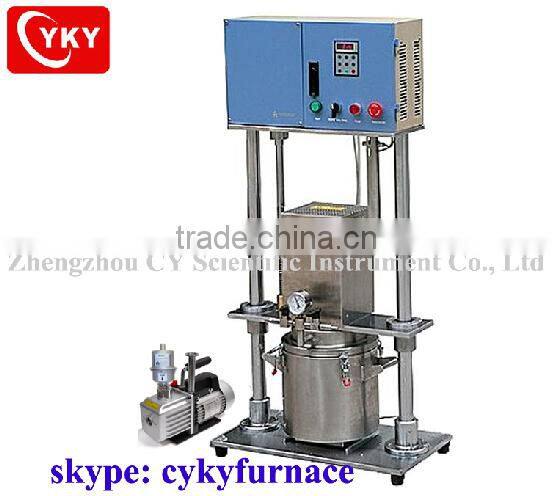

Laboratory used 5L Electric Vacuum Mixer

Product Description

Brief introduction of the 5L Electric Vacuum Mixer with Single Axis Helical Blade and Water Cold Tank

MSK-SFM-6E (updated from MSK-SFM-6 from 10/20/03) is designed for making large batches (5 liters)

of chemical compounds via blending and mixing in a single container under vacuum driven only by electricity.

It is programmable in speed, time, and rotational direction, and has a stainless steel mixing tank implemented with water cooling to maintain an

efficient mixing process.

This instrument is excellent for preparing LiCoO3, LiFePO4, Phosphor and various ceramic slurries where gas bubbles must be kept at minimum.

The reduction of gas bubbles will result in better dispersion and uniformity of the processed materials.

Specification of the 5L Electric Vacuum Mixer with Single Axis Helical Blade and Water Cold Tank

Model	Vacuum mixing machine CY-MSK-SFM-6E
Features	5 liter 304 stainless steel container with double layer water cooling jacket. Advanced T type sealing to keep vacuum pressure up to 12 hours. Double Step Rotary Vane Vacuum Pump, is included for immediate operation Container is opened or closed by electric motor (no air pump is required any more) Programmable controller to set time, speed, rotation direction.
Voltage	110-240V AC single Phase, 50/60Hz (build-in frequency converter to ensure the mixer can be used under 50 or 60 Hz)
Rate Power	750 W
Rotor Rod Speed	0 -1400 RPM variable
Lifting	Electric motor ( no compress are pump required any more )
Water Requirement	16 L/min water flow required to cool mixing tank Cooling water 1/4'' Inlet and outlet on the back of the mixing tank (with build-in cooling jacket) (water chiller is not included)

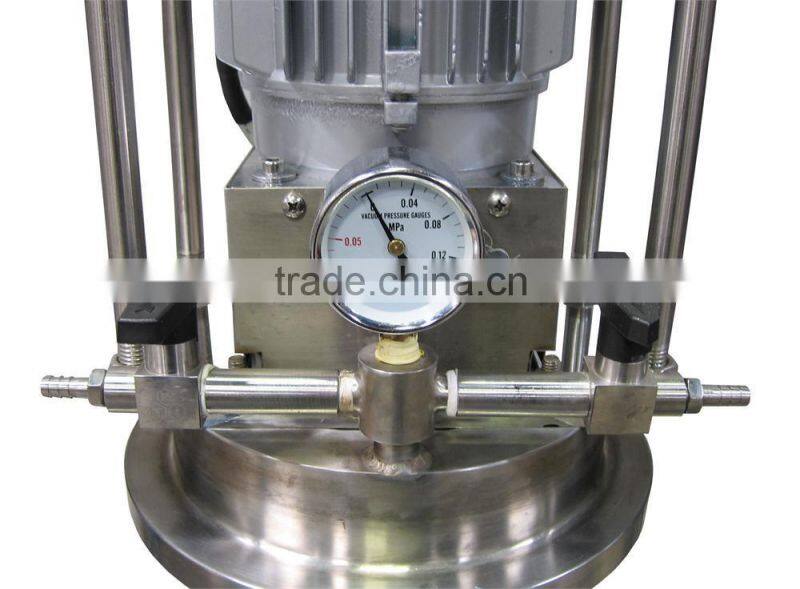

Vacuum Pump	Double Step Rotary Vane Vacuum Pump, is included Vacuum gauge is built in with minimum vacuum level -0.1 MPa
304SS Container Size	270mm O.D. x 210mm I.D. x 230mm H
Dimensions	580mm(L) x 320mm(W) x 1340mm(H)
Net Weight	119 kg (262 lbs)
Warranty	One year limited warranty with lifetime support
