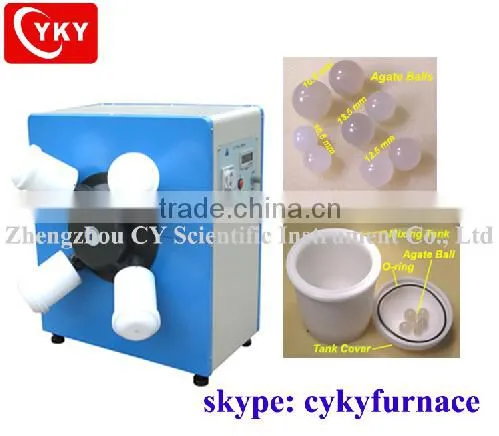

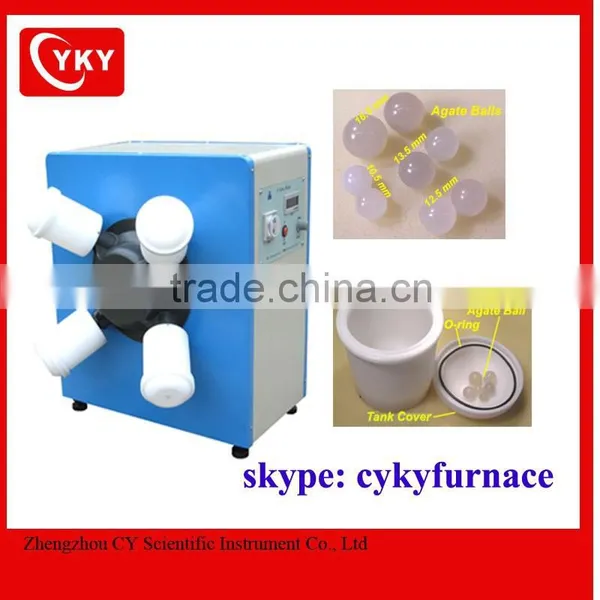

Desktop Vertical Automatic Mixer with 4 x 1 Liter Nylon Tank CY-MSK-SFM-2



Product Description

 Discription of the desktop vertical automatic mixer:

CY-MSK-SFM-2 four-tank automatic mixer can wet mix any powder materials, such as ceramic powder, oxide powder, and other inorganic powders. It combines multiple movements, including master plate rotating, tank self-rotating and gravity, making mixing and grinding material very efficient at low speed without over-heated. Water-tight nylon tanks allow you to mix chemicals with liquid solution. The mixer/mill can grind powder to particle size below

 0.5 micron by adding suitable milling balls inside tank.



Specification of the desktop vertical automatic mixer:




Voltage
  • Default AC220V, 50/60Hz. If using AC110V we will attach a 500W transfer in the package.
  •  Please select the voltage in the option bar.
  • 220V AC Power plug is not included.

Power

200W

Movement

Efficient grinding and mixing via movement in three dimensions: major platen rotation, individual tank rotating,

and up-down gravity

Speed

Adjustable by controlling DC motor

Convey

Low noise nylon gears

Final Partical Size

<0.5 micron

Rotary Rate
  • Main plate rotation in cycle: 0-100 rpm
  • Mixing tank self-rotation: 0-300 rpm
  • The ratio of main cycle speed and tank rotation speed: 1:3

Digital control
  • Digital display the speed of tank self rotation in rpm
  • Running time can be set up from 1-999 minutes

Tank (Jar)
  • 4 nylon tanks 1000ml (jar), water-proof by rubber O ring, are included in standard package
  • Extra jar set (4 per set) is available on request

Milling balls
  • Four sets of agate milling balls included (96 balls in total) in standard package with various
  • sizes as below:ZrO milling balls with different size are available upon request
    • o 19.5 mm dia. ball, 16 balls included
    • o 14.5 mm dia. ball, 16 balls included
    • o 11.5 mm dia. ball, 16 balls included
    • o 10.0 mm dia. ball, 48 balls included

Warranty
  • One year limited warranty with lifetime technical support
  • Consumable parts are not covered by the warranty

Compliance

CE Certified

Product Dimensions

450mm(L) x 490mm(W) x 530mm(W) (17.7" x 19.3" x 20.9")

Net Weight

55 kg (121 lbs)

Application Notes
  • In order to mill efficiently, never fill sample more than 1/3 volume of jar
  • Warning: Must place 2 jars or 4 jars with similar weight in the ball mill to
  • keep balance during rotation, otherwise unbalance rotation, especially one jar, may damage the machine
  • Desktop Vertical Automatic Mixer with 4 x 1 Liter Nylon Tank CY-MSK-SFM-2

Shipment Dimension

45" x30" x 38"

Shipment weight

180 lbs









Display of the desktop vertical automatic mixer:

Desktop Vertical Automatic Mixer with 4 x 1 Liter Nylon Tank CY-MSK-SFM-2

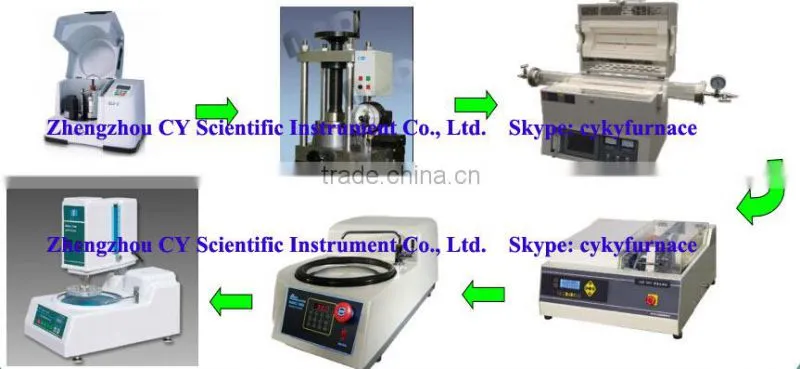

other related products to prepare material that we can supply :

Desktop Vertical Automatic Mixer with 4 x 1 Liter Nylon Tank CY-MSK-SFM-2

all kinds of furnace for sintering:

Desktop Vertical Automatic Mixer with 4 x 1 Liter Nylon Tank CY-MSK-SFM-2
