High temperature high vacuum tube furnace up to 10-3 pa
introduction of high temperature high vacuum tube furnace
CY-O1200-50IC is a compact and energy saving (1200W power consumption) split tube furnace with a max. working temperature of 1200°C and All electric parts are UL / MET / CSA certified. The furnace can be adopt either a 1", 2" quartz tube (optional) with a pair of stainless steel vacuum sealing flanges. The 1/4" barb fitting for rubber hose connection allows heating sample in vacuum or flowing gas. Built-in precision temperature controller can provide up to 30 segments of heating and cooling steps with +/- 1 °C accuracy
Technical parameters of high vacuum mini tube furnace / split tube furnace
Model | CY-O1200-50IC |
Display | LED |
Limiting Temperature | 1200℃ |
Usable Range | ≤1100℃ |
Heating Rate | Suggestion0~20℃/min |
Temperature Zone | Single |
Accuracy | ±1℃ |
heating zone length | 200 mm |
Tubing Size | Φ50×600(mm) |
Φ25×600(mm) | |
Heating Element | resistance wire |
Max. vacuum degree | 10-3 pa |
Thermocouple | K Type |
Max. Power | 1.2KW |
Working Voltage | AC 208V-240V single phase, 50/60 Hz |
Temperature Control | PID automatic control via SCR power control |
Heating curves | 30 steps programmable |
Chamber material | Alumina Fiber |
Outside Size and weight | 380×320×430(mm) 35 kg |
Warranty | One year limited warranty |

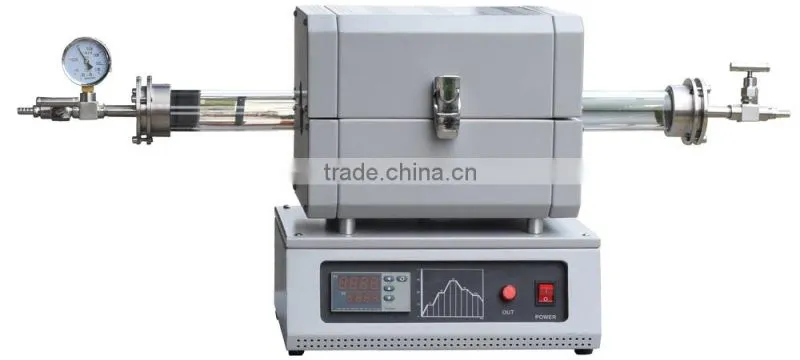

Mini tube furnace for high vacuum tube furnace
Molecular vacuum pump for high vacuum tube furnace

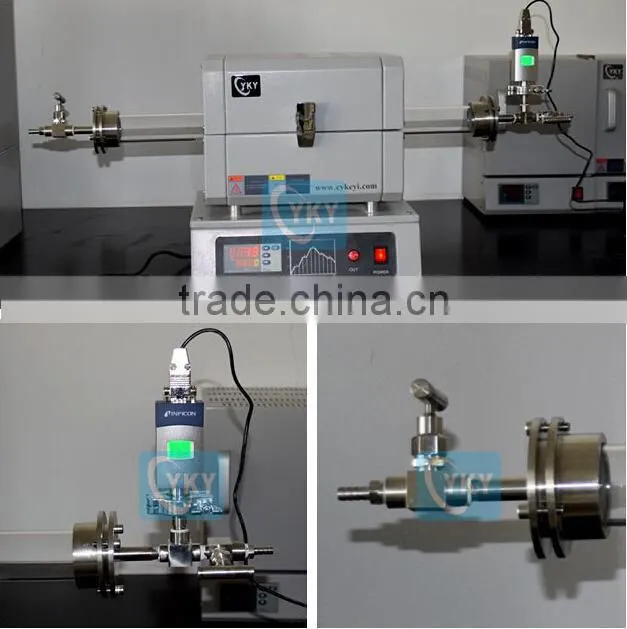

Details of high vacuum tube furnace
Other type high vacuum tube furnace
1.One year free warranty.
2.All machines are debugged before shipment.
3.Lifetime technical support and service.
4.24 hours on line or phone or by email technical support.
5.We offer detailed machine manual and software manual.
6.Our factory make a vivid training CD.
7.Life-long free maintenance.
8.Free training in our factory.
Zhengzhou CY Scientific Instrument Co.,Ltd locate in hi-tech zone, Zhengzhou city.It is a high-tech companies that engaged in the research and development, design, manufacturing and sales of equipment used in scientific researches.Mainly focus on Our main products include:microwave sintering furnace, dental porcelain furnace, tube furnace,muffle furnace,,zirconia sintering furnace,Phosphor powder sintering furnace,crystal sintering furnace, battery material sintering furnace, CVD system, relative accessories and etc. determined to do advanced materials preparation equipment manufacturers and suppliers of leader.
