Featrues of Single crystal growing furnace
EQ-SKJ-50CZ is a high quality Cubic Zirconia Crystal Growth Furnace for material research laboratories. This furnace has
been proven to be excellent for pulling various oxide crystals with melting point up to 2100 oC, including Sapphire, GGG, YAG, LaAlO3, Si, and Ge, etc. with diameter up to 3". CY provides technical training on installing and operating this furance to customers before shipping. CY also provides online video technical support worldwide.
Technical parmaters of Single crystal growing furnace
Working Voltage | 240V AC, 0.2-29 kHz, Three Phases |
Working Current | 100A |
Max. Power Consumption | 50 KW |
Melting Temperature | Max: 2100°C (3812°F) Accuracy: < +/- 0.2°C by Euro-thermo temperature controller |
Max. Vacuum Level | 10-3 torr by mechanical pump (included) 10-5 torr by diffusion pump (optional) |
Vacuum Chamber Size
| 500mm(Dia.) x 700mm(H) |
Water Cooling | Water flows through chamber jacket and crystal seed rod Water Pressure: 0.13 - 0.18 MPa Water Flowrate: 60 L/minute |
Controller | Electronic operation unit for controls of pulling, rotating, temperature |
Puller
| Driven by constant torque DC motors Pulling Rate: 0.1-20mm/h Max. Seed Rod Travel Distance: 400mm Rotating Rate: 0-40 RPM |
Crucible | Crucible Rod Raising Speed: Manual Crucible Rod Max. Travel Distance: 100mm Optional: Iridium Crucible and Refractory components are available upon request at extra cost. |
Product Dimensions | Crystal Growing Controller: 880mm(L) x 1250mm(W) x 2850mm(H) Control unit: 680mm(L) x 540mm(W) x 1700mm(H) RF Power supply: 800(L) x 500mm(W) x 1500mm(H) |
Pictures show of Single crystal growing furnace
Puller of crystal growing furnace
Vacuum pump for crystal growing furnace
Packaging of Single crystal growing furnace
Shipping and transportation
As customer request. Generally, Our mode of transport are as by sea, by air or rail transport
Payment
T/T, L/C, WEST UNION, PAYPAL, ESCROW AND ETC
Warranty
Main product is 15 month, except wearing parts.

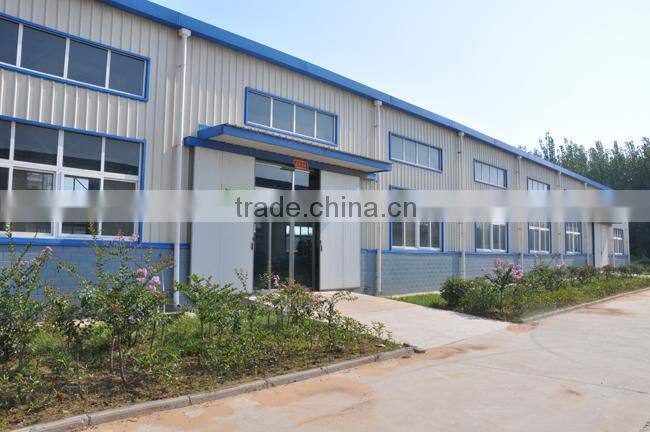

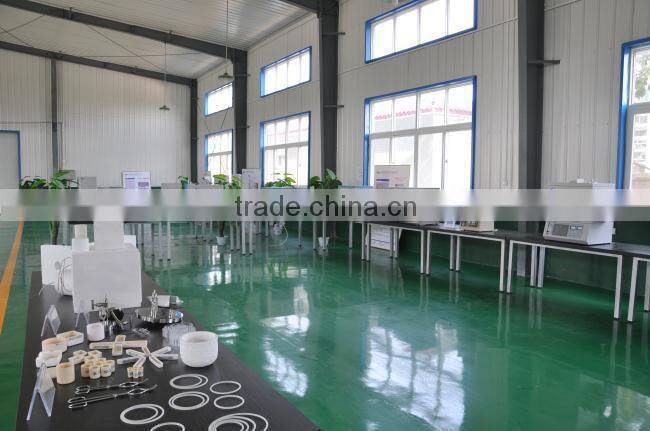

Factory show
Zhengzhou CY Scientific Instrument Co., Ltd is mainly engaged in the research and development, design, manufacturing and sales of equipment used in scientific researches. Independence and innovation is the company's tenet.
Contact Information
Name:Jane Rao
skypeID:raojane999
qq:2542331489
tel:8618134414225
Web site:
We are looking forward your order of Single crystal growing furnace
