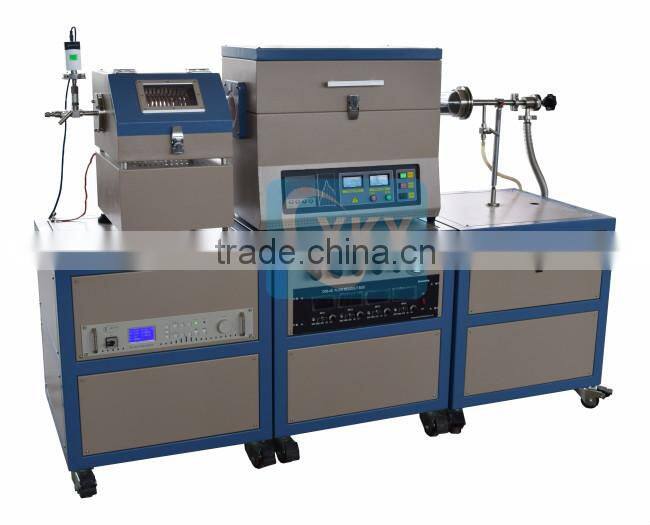

4 gas way mass flow controller single heating zone system/plasma sintering furnace
Featrues of plasma sintering furnace
1.Lower temperature processing compared to conventional CVD.
2.Film stress can be controlled by high/low frequency mixing techniques.
3.Control over stoichiometry via process conditions.
4.Offers a wide range of material deposition, including SiOx, SiNx, SiOxNy and
Amorphous silicon (a-Si:H) deposition.
Technical parmaters of plasma sintering furnace
| Plit Tube furnace | Input power: 208 – 240V AC, 1.2kW 1200°C Max. working temperature for < 60 minutes 1100°C Max for continuous heating High purity quartz tube 2"OD x 1.7"ID x 39.4" Length 30 segments programmable precision digital temperature controller 8" (200mm), single zone. 2.3" (60mm) (+/-1°C) @ 1000°C |
| Plasma RF Generator | Output Power:5 -300W adjustable with ± 1% stability RF frequency: 13.56 MHz ±0.005% stability Reflection Power: 200W max. Matching: Automatic RF Output Port: 50 Ω, N-type, female Noise: <50 dB. Cooling: Air cooling. Power : 208-240VAC, 50/60Hz |
| Vacuum Flange and Fittings | Vacuum flange set is made of stainless steel 304. Left flange assembly includes a KF-25 vacuum port, two KF-25 quick clamp, A KF-25 right angle valve, a KF-25 vacuum bellows, a flange Support 1/4 O.D Hose fitting, and a needle valve. Right flange assembly includes a digital pirani gauge, 1/4 O.D tube fitting, 1/4" Feedthrough and a needle valve. |
| Vacuum Pump | AC 220V 50 Hz 1/2HP 375W 2 Liter /S or 120 liter/m Oil trap (inlet) and exhaust filter (outlet) are installed. Max. vacuum: 10-2 torr |
| Warranty | 12 month (exclusive wearing part) |
Pictures show of plasma sintering furnace
Packaging of plasma sintering furnace
PLY WOOD BOX as below picture show. or as customer request.
Shipping and transportation
As customer request. Generally, Our mode of transport are as by sea, by air or rail transport
Payment
T/T, L/C, WEST UNION, PAYPAL, ESCROW AND ETC
Warranty
Main product is 12 month, except wearing parts.
Factory show
Zhengzhou CY Scientific Instrument Co., Ltd is mainly engaged in the research and development, design, manufacturing and sales of equipment used in scientific researches. Independence and innovation is the company's tenet.
