CY 1700C High Temperature bottom Furnace with factory price
Description of high temperature bottom furnace
Bottom lift Furnace is capable of operating at maximum temperatures up to 1200 degree in air. The furnace utilizes 1200°C resistance wire positioned on three sides of the internal chamber and adopt energy efficient insulation package consisting of graded ceramic-fiber, high temperature insulation.What's more, It has a evenly heating zone. Bottom lift furnace is an ideal tool for materials annealing and sintering.
Feature of high temperature bottom furnace
1.Lifting type
2.High temperature chamber material, resistance high temperature 1700 ℃
3.Programmable and PID automatic control
4.Touch panel operating interface for your option
5.Round heating zone, more uniform temperature field
6.Fast sintering speed, total sintering process time less than 120 minutes.
7. Special speed heating elements avoid green coloring
Technical parmaters of high temperature bottom furnace
| Model | CY-B1700 |
| Limiting temperature | 1700 °C (< 2 hour) |
| Working temperature | ≤1600 °C |
| Heating rate | ≤20℃(suggestion:10℃/min) |
| Temperature accuracy | +/- 1 °C |
| Temperature controller | • PID automatic control and auto-tune function. |
| • 51 programmable segments for precise control. | |
| • Built in protection for over-heated and broken thermal couple | |
| • Larger digital control panel (48 x 96 mm) for easy operation. | |
| Chamber size | 200x200x200mm |
| Heating element | MoSi2 |
| Thermal couple | BType |
| Working voltage | AC 220V 50-60Hz |
| Rated power | 6.5 KW |
| Warranty | 12 month (exclusive wearing part) |

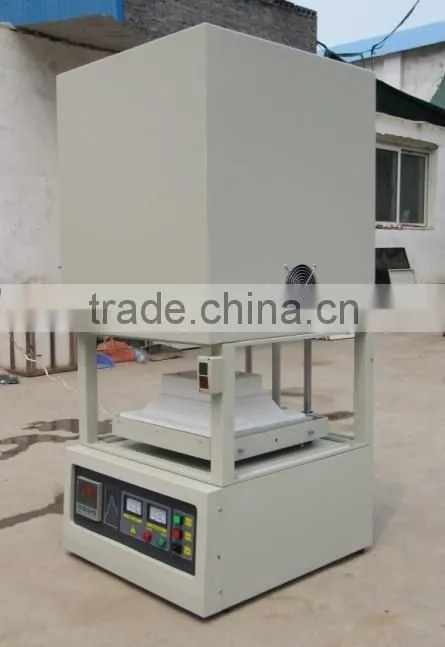

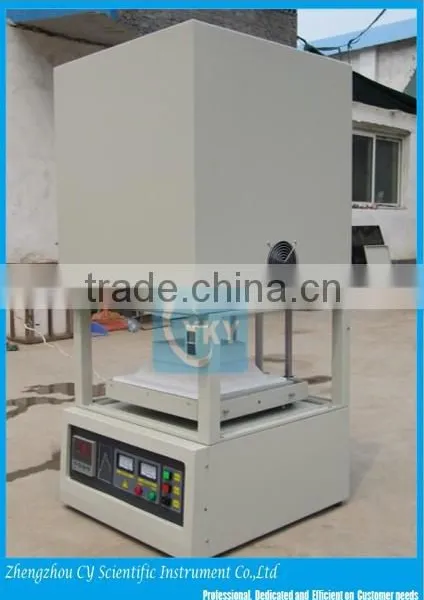

Pictures show of high temperature bottom furnace
Packaging of high temperature bottom furnace
PLY WOOD BOX as below picture show. or as customer request.
Shipping and transportation
As customer request. Generally, Our mode of transport are as by sea, by air or rail transport
Payment
T/T, L/C, WEST UNION, PAYPAL, ESCROW AND ETC
Warranty
Main product is 15 month, except wearing parts.
Wearing parts as below:
sensor, bottom, oven gloves, crucible tongs and crucible, zirconium oxide beads.
Factory show
Zhengzhou CY Scientific Instrument Co., Ltd is mainly engaged in the research and development, design, manufacturing and sales of equipment used in scientific researches. Independence and innovation is the company's tenet.
