Mini dental ceramic oven with lift tray & vacuum pump
Featrues of mini dental ceramic oven
1. lifting type
2. high temperature chamber material, resistance high temperature 1200 ℃
3. Programmable and PID automatic control
4. Touch panel operating interface for your option
5.Round heating zone, more uniform temperature field
6.Multi-function: can used for glazing and porcelain glazing furnace
Technical parmaters of mini dental ceramic oven
| Model no. | CY-1200D |
| Display | LCD touch screen |
| Limiting temperature | 1200℃ |
| Working temperautre | ≤1100℃ |
| Heating rate | 0-140℃/min |
| Temperature accuracy | ±1℃ |
| Chamber size | Φ100*90mm |
| Heating element | Aludirome |
| Thermal couple | K type |
| Temper. control | PID automatic control via SCR power control |
| Heating curves | 50steps programmable |
| Sealing type | bottom type door |
| Max.power of furnace | 1.6kw |
| Working voltage | AC 220V 50/60Hz, or as customized |
| Max.gas flow | 119L/min |
| Limited vacuum degree | -700mmHg; (-93kpa) |
| Working power | 0.40kw |
| Intake-exhaust size | 1/4" |
| Noise | 58dB |

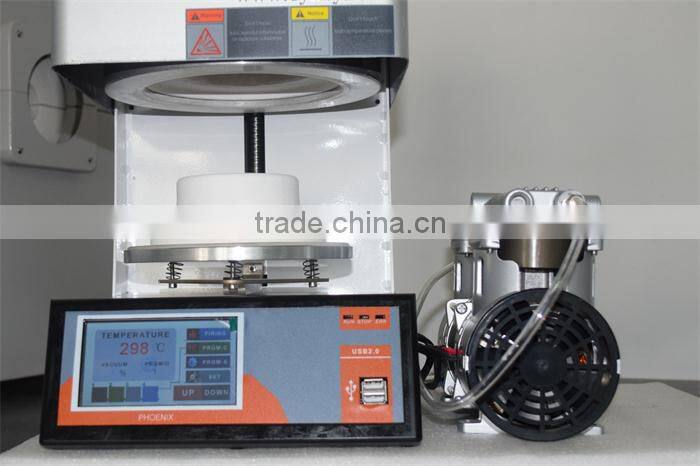

Pictures show of mini dental ceramic oven
Packaging of mini dental ceramic oven
PLY WOOD BOX as below picture show. or as customer request.
Shipping and transportation
As customer request. Generally, Our mode of transport are as by sea, by air or rail transport
Payment
T/T, L/C, WEST UNION, PAYPAL, ESCROW AND ETC
Warranty
Main product is 15 month, except wearing parts.
Wearing parts as below:
sensor, bottom, oven gloves, crucible tongs and crucible, zirconium oxide beads.
Factory show
Zhengzhou CY Scientific Instrument Co., Ltd is mainly engaged in the research and development, design, manufacturing and sales of equipment used in scientific researches. Independence and innovation is the company's tenet.
