Specifications
led light panel factory price1.Isolated constant current led driver
2.CE RoHS Approved
3.Fast Delivery
4.3years warranty

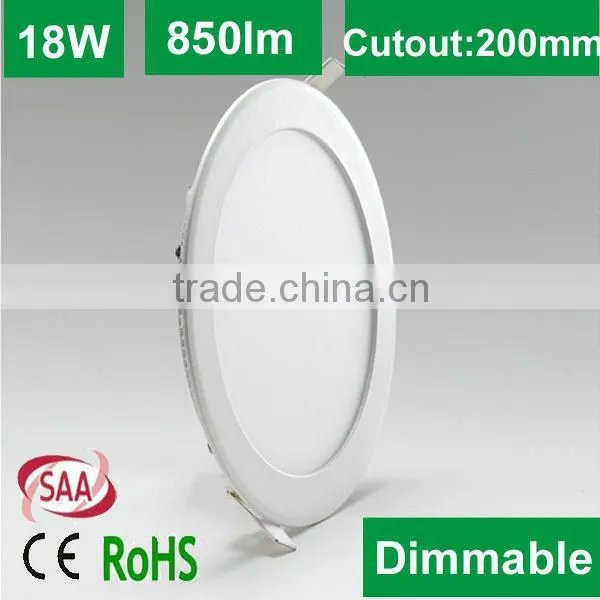

2014 80lm/w wholesale price factory direct sale square round led panel ceiling light
| Type | RP2218W | |
| Input voltage &frequency | AC85V-265V 50/60Hz | |
| Light source | SMD2835/90pcs | |
| Power consumption | 18W | |

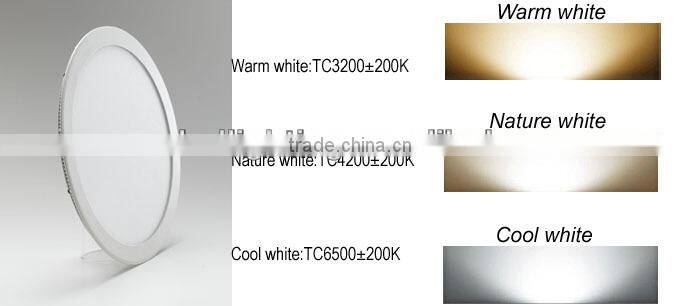

| Color temperature | WW:2800K~3200K | NW:4000K~4500K |
| LED luminous efficiency | 80lm/W | CW:6000K~6500K |
| Lamp Lumens | 1300lm | |
| CRI(Ra) | >75 | |
| Beam angle | 180° | |
| Working temperature | -40°C~60°C | |
| Housing material | Aliminium shell+PC cover | |
| Product size | 225*13mm,cutout:200mm |
|
| Light source life span | ≥50,000 hrs | |
Round led panel advantage:

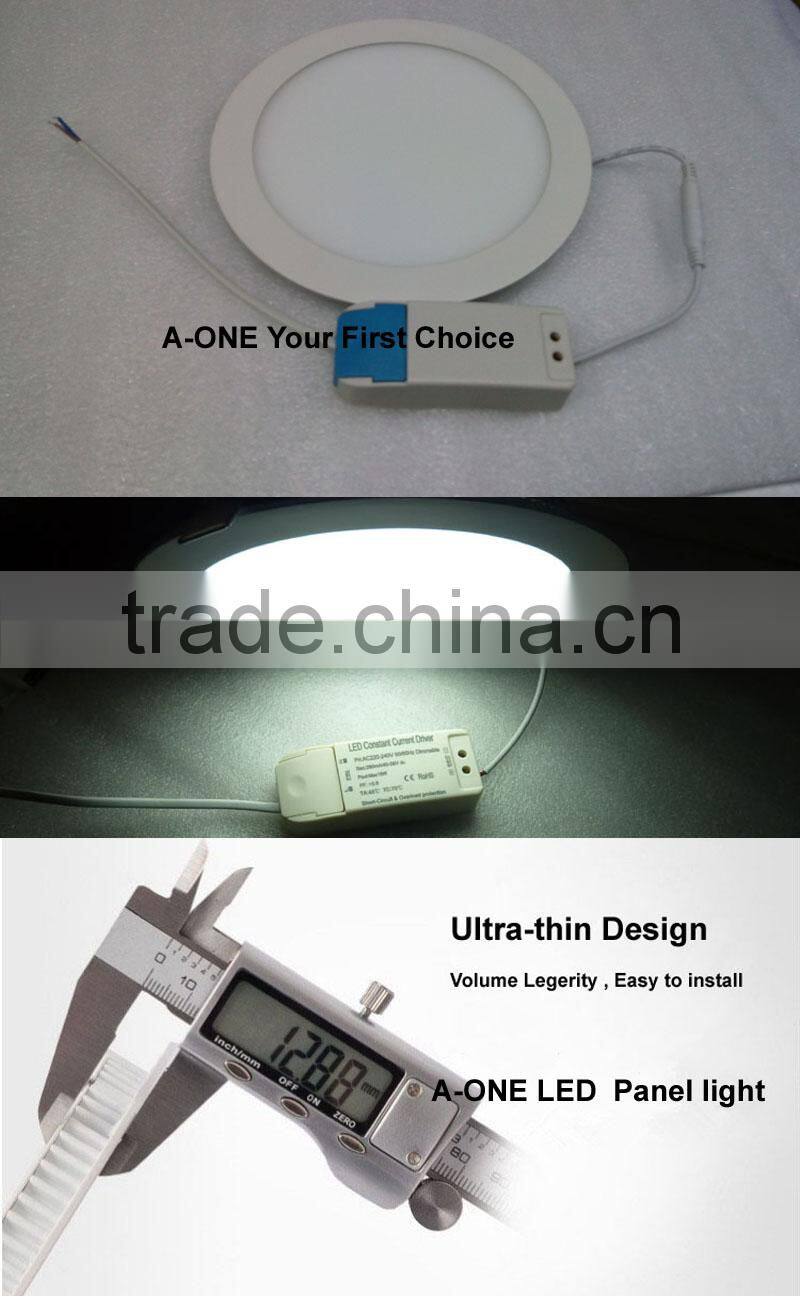

1, Simple design, 13mm thickness.

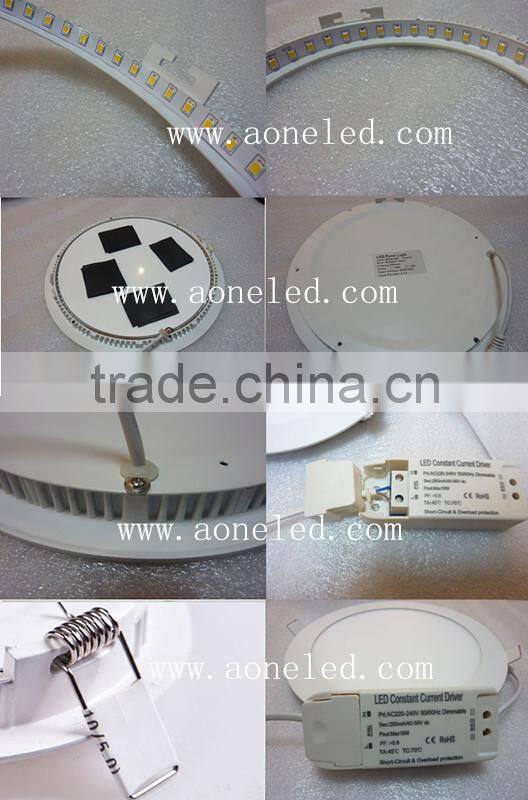

2, Isolated driver, with Phillips IC and Japan Rubycon capacitor.

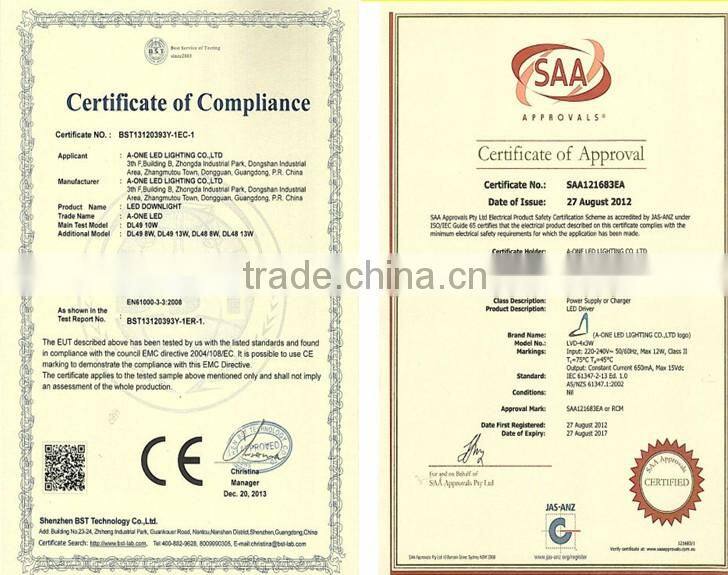

3, CE, RoHS approved.
4, Dimmable light control available
5, 3 years warranty.
Other round panel specification:
| Part No. | Input Voltage | Power Factor | LED Chip | LED QTY | Power | Dimension | Cutout size | Lumens |
| RP093W | AC85-265V | >0.65 | SMD2835 | 15 | 3W | 90*13mm | 70mm | 210lm ± 10%lm |
| RP114W | AC85-265V | >0.65 | SMD2835 | 20 | 4W | 110*13mm | 90mm | 280lm ± 10%lm |
| RP126W | AC85-265V | >0.65 | SMD2835 | 30 | 6W | 120*13mm | 100mm | 420lm ± 10%lm |
| RP159W | AC85-265V | >0.9 | SMD2835 | 45 | 9W | 150*13mm | 130mm | 630lm ± 10%lm |
| RP1712W | AC85-265V | >0.9 | SMD2835 | 60 | 12W | 170*13mm | 150mm | 840lm ± 10%lm |
| RP1812W | AC85-265V | >0.9 | SMD2835 | 60 | 12W | 180*13mm | 160mm | 840lm ± 10%lm |
| RP2015W | AC85-265V | >0.9 | SMD2835 | 75 | 15W | 200*13mm | 180mm | 1100lm ± 10%lm |
| RP2218W | AC85-265V | >0.9 | SMD2835 | 90 | 18W | 225*13mm | 200mm | 1300lm ± 10%lm |
| RP2420W | AC85-265V | >0.9 | SMD2835 | 100 | 20W | 240*13mm | 220mm | 1500lm ± 10%lm |
| RP3024W | AC85-265V | >0.9 | SMD2835 | 120 | 24W | 300*13mm | 280mm | 1800lm ± 10%lm |
International Colour temperature standard:
1. General indoor lighting
2. Hotels lighting
3. Conference room lighting
4. Factories, offices lighting
5. Business negotiation venues lighting
6. Housing, institutions and other buildings lighting
7. Schools, hospitals lighting
8. Places need to energy efficiency and high color developing index

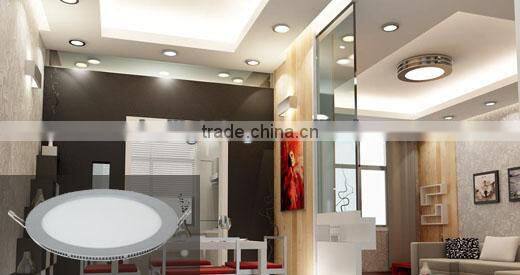

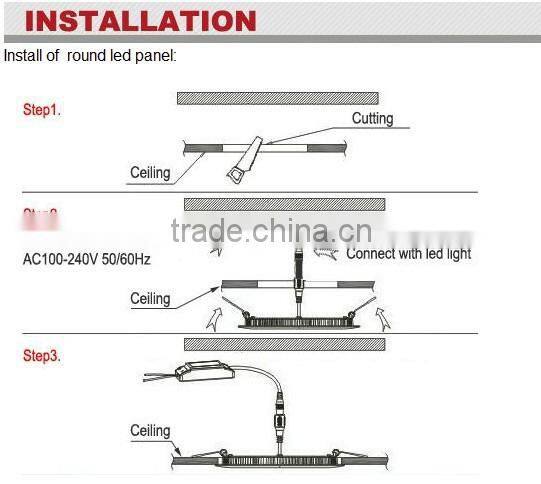

Install design:
Led ceiling light Packing:
1:Qty/ctn:28pcs
2:Gross Weight:23.5kg
3:Size of carton:64x51x29mm
Material Control:
We will check all outer ring one by one remove any stain of outer to protect smooth surface;

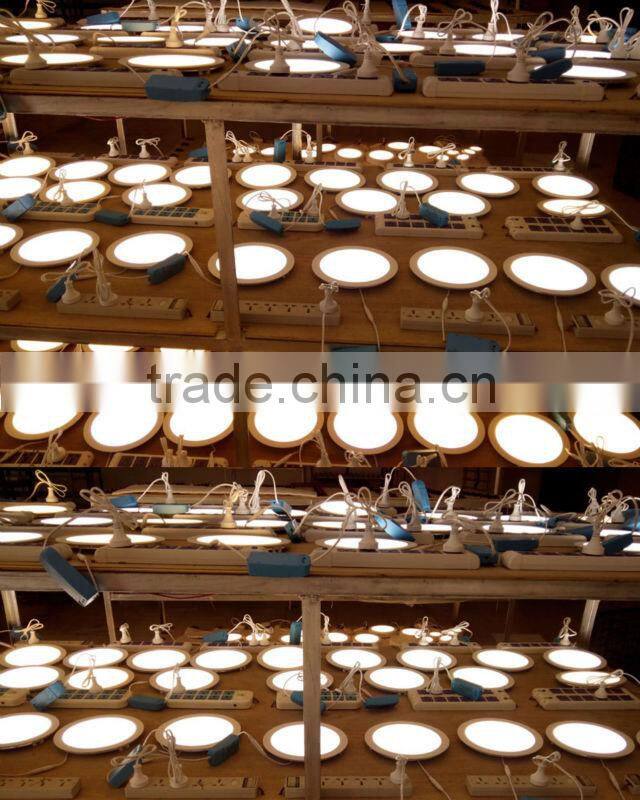

100% of the lamps will be tested and keep lighting for 48 hours to test its quality reliability , and we will also test its temperature after 24 hours’ lighting.
Then after it is cool we again test 100% of the lamps to see if it still work well . Each lamp should pass all these QC procedures before shipping to customer.
1. For all your inquires about us or our products,we will reply you in detail within 24 hours
2. We own well-tranied and passional sales & after –sale services who can speak fluent Engligh language
3. We offer OEM services. Can print your own logo on product, can customize the retail box packing and other things.
4. We have very experienced R&D engineers and we have strong ability to do ODM projects.
5.Protection of your sales area, ideas of design and all your private informaton.
6.We make color box free when QTY more than 500pcs
7.Our convenient payment and effective transportation service:
Quality, Promise and Value are the key of our success. If you are looking for a business partner supplying super quality products, welcome to contact A-ONE:
