high temperature nitrogen atmosphere furnace with low price for sale
1700C Atmosphere furnace can protect materials from oxidation and decarburization with flowing nitrogen and other inert gases. Atmosphere furnace is widely used in all kinds of colleges and universities laboratory, chemical laboratory, industrial and mining enterprises for chemical analysis, physical measures, as well as metal, ceramic sintering, such as piece of small steel heating, calcination, heat treatment.
Featrues of atmosphere furnace / nitrogen atmosphere furnace
1.Side door, easy to operate .
2.High quality imported fiber, perfect insulation property.
3.Programmable and PID automatic control
4.Heavy duty double layer structure with cooling fan and water cooling system.
5.Multi-function: Metal annealing, quenching atmosphere, surface cream, light treatment
6. Compact structure, can insert N2/Ar2 for special material sintering.
Technical parmaters of atmosphere furnace / Laboratory Nitrogen Atmosphere Furnace
| Model | CY-A1200 | CY-A1400 | CY-A1600 |
| Controller | LED/LCD for optional | ||
| Standard Furnace Hearth | 150*150*150mm; 200*200*200mm; 300*300*300mm; 400*400*400mm ; 500*500*500mm; 600*600*600mm | ||
| Maximum Temperature | 1200℃ | 1400℃ | 1600℃ |
| Rated Temperature | 1100℃ | 1300℃ | 1500℃ |
| Standard chamber size | |||
| Heating Rate | 0-20℃ (suggestion 10℃/min) | 0-20℃ (suggestion 10℃/min) | 0-15℃ (suggestion 10℃/min) |
| Temperature Control | 30 programmable and PID automatic control ( customized) | ||
| Temperature uniform | ± 5℃ | ±5℃ | ±5℃ |
| Heating Element | Aludirome | SiC | MoSi2 |
| Thermocouple | K Type | S type | B type |
| Furnace Shell Structure | Double furnace shell and is equipped with cooling fan | ||
| Atmosphere acceptable | nitrogen, argon and other inert gases. Insert reduction gas is prohibited | ||
| Voltage | AC 110 -380V,50/60Hz, as customor require | ||
| Quality Guarantee | One year | ||

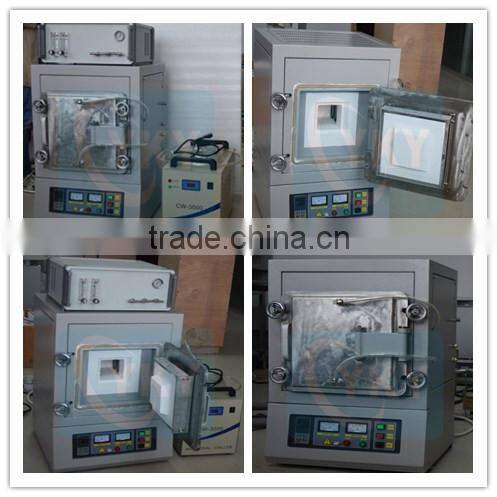

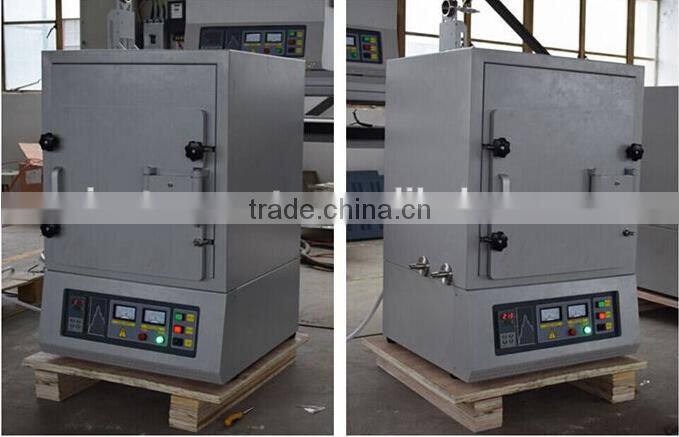

Detailed photos of the atmosphere furnace / atmosphere heat treatment furnace with water cooling system
other atmosphere furnace that we have :
