gas controlled atmosphere protective atmosphere furnace with water coolling method
1700C Atmosphere furnace can protect materials from oxidation and decarburization with flowing nitrogen and other inert gases. Atmosphere furnace is widely used in all kinds of colleges and universities laboratory, chemical laboratory, industrial and mining enterprises for chemical analysis, physical measures, as well as metal, ceramic sintering, such as piece of small steel heating, calcination, heat treatment.
Outstanding features high temperature atmosphere furnace
1. Max. energy efficiency is achieved by surrounding the chamber with thermal-efficient alumina fiber ceramic insulation.
2. Heavy duty double layer structure with cooling fan. Lower temperature in outside case.
3. PID automatic control via current limiting phase angle fired the resistor,e.g SCR (Silicon Controlled Rectifier)
Technical parameters of the atmosphere furnace
| Model | CY-A1700 |
| Display | LED |
| Max. temperature | 1700°C |
| Working temperature | ≤1600°C |
| Heating rate | Suggestion 0-20°C/min |
| Temperature accuracy | +/-1°C |
| Standard chamber size | 200*200*200mm; 300×300×400mm;300*300*300mm (the chamber size is customized) |
| Working enviroment | Argon, Nitrogen, inert gas, etc atmosphere, low vacuum no more than 10 Pa |
| Heating element | MoSi2 rods |
| Thermal couple | B Type |
| Temperature control | PID automatic control via SCR power control |
| Heating curves | 30 steps programmable |
| Rated power | 5 KW |
| Working temperature | AC 110-480V 50-60Hz |
| Warranty | 12 month (exclusive wearing part) |

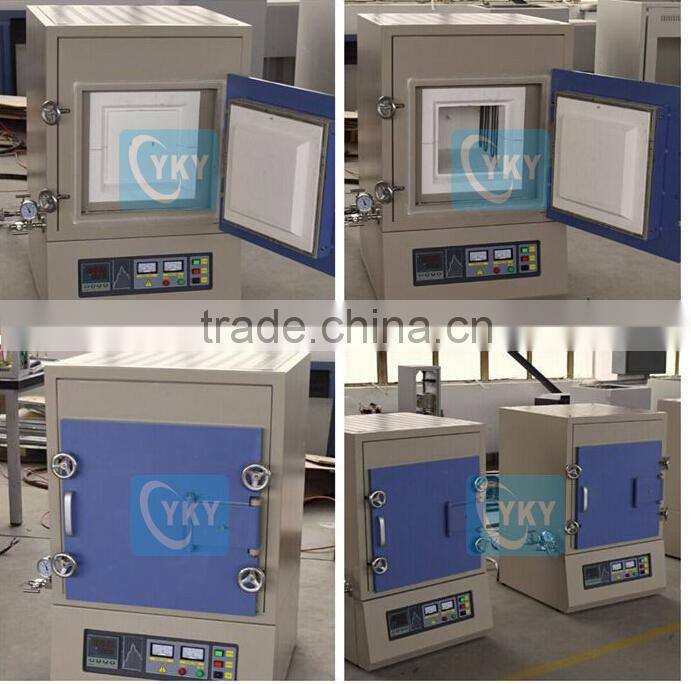

Detailed photos of the atmosphere furnace / atmosphere heat treatment furnace with water cooling system
other atmosphere furnace that we have :
