Laboratory heating equipment large capacity atmosphere muffle furnace with CE

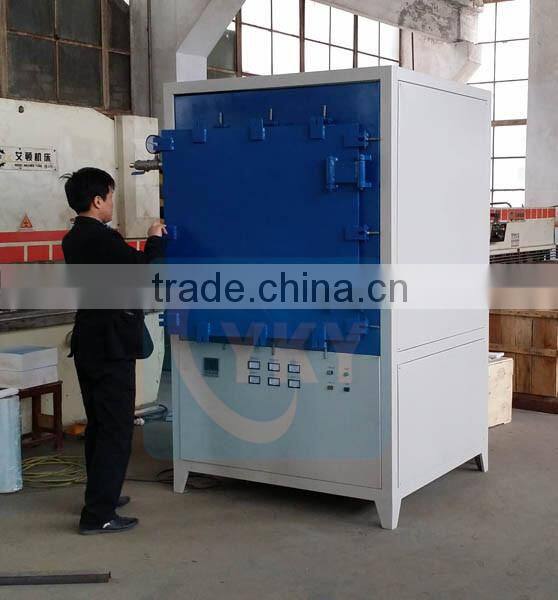

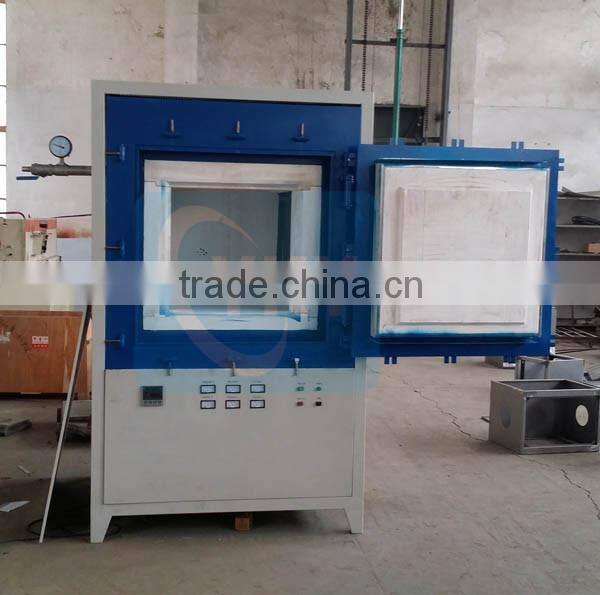

Pictures show of atmosphere muffle furnace
Featrues of atmosphere muffle furnace
1.Side door, easy to operate
2.High quality imported fiber, resistance high temperature 1700 ℃
3.Programmable and PID automatic control
4.Heavy duty double layer structure with cooling fan. Lower temperature in outside case
5.Multi-function: Metal annealing, quenching atmosphere, surface cream, light treatment
6. Compact structure, can insert N2/Ar2 for special material sintering.
Technical parmaters of atmosphere muffle furnace
| Model | CY-A1700-36L |
| Display | LED |
| Max. temperature | 1700°C |
| Working temperature | ≤1650°C |
| Heating rate | Suggestion 0-20°C/min |
| Temperature accuracy | +/-1°C |
| Inside chamber | 300*300*400mm |
| Heating element | MoSi2 |
| Thermal couple | B Type |
| Temperature control | PID automatic control via SCR power control |
| Heating curves | 30 steps programmable |
| Rated power | 9.5 KW |
| Working voltage | AC 220V, 50/60HZ |
| Warranty | 12 month (exclusive wearing part) |
Packaging of atmosphere muffle furnace
PLY WOOD BOX as below picture show. or as customer request.
Shipping and transportation
As customer request. Generally, Our mode of transport are as by sea, by air or rail transport
Payment
T/T, L/C, WEST UNION, PAYPAL, ESCROW AND ETC
Warranty
Main product is 12 month, except wearing parts.

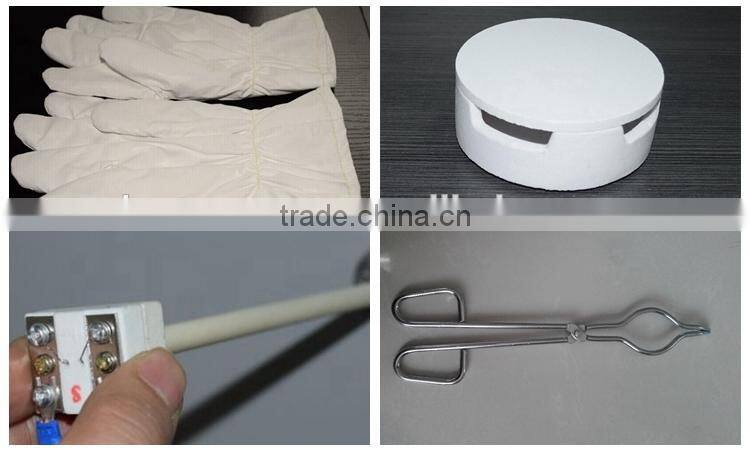

Relative accessories
Factory show
Zhengzhou CY Scientific Instrument Co., Ltd is mainly engaged in the research and development, design, manufacturing and sales of equipment used in scientific researches. Independence and innovation is the company's tenet. Welcome you come to visit us.
