WANTE BRAND QT40-1 China products mold concrete manual block machine
- 300 Set / Sets per Month
- Qingdao China
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
WANTE BRAND QT40-1motor engine manual block machine for small business
-
WANTE BRAND small manufacturing manual concrete block machine QT40-2
-
WANTE BRAND QT40-1vibrating manual block machine for small business
-
WANTE BRAND QT40-1 manual block machine for sale in usa Supplier's Choice
-
WANTE BRAND QT40-1high production manual block machine
-
WANTE BRAND QT40-1 Manual cement block machine
Product Details
Condition | New | Type | Hollow Block Making Machine | |
Brick Raw Material | Cement | Processing | Brick Molding Machine | |
Method | Other | Automatic | Yes | |
Capacity | 2800-22550 pcs/day | Place of Origin | Shandong, China | |
Brand Name | Wante | Model Number | QT40-1 | |
Voltage | 220V/380V | Power | 8.8KW | |
Dimension(L*W*H) | 1680X1100X2700MM | Certification | ISO9001&CE | |
Warranty | 1 Year | After-sales Service Provided | Engineers available to service machinery overseas |

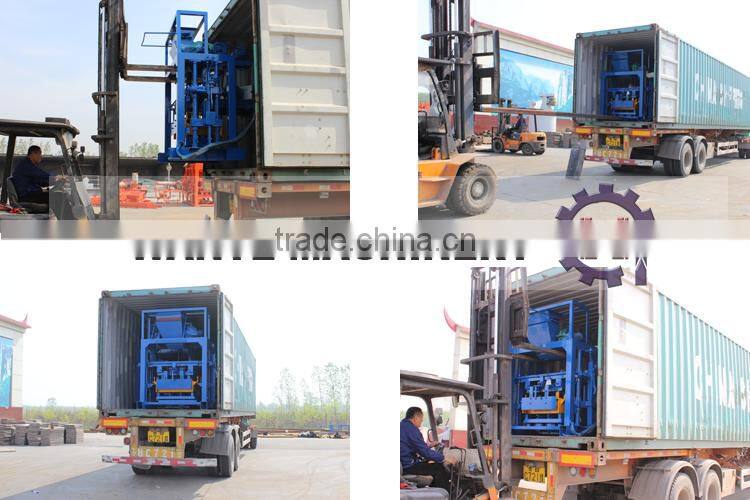

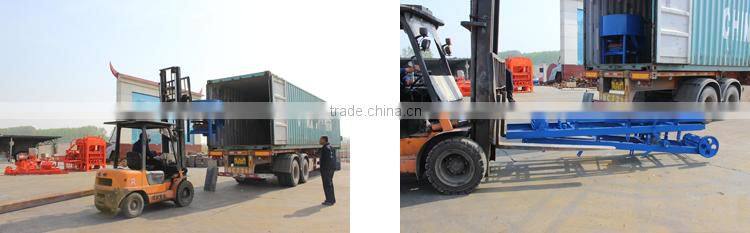

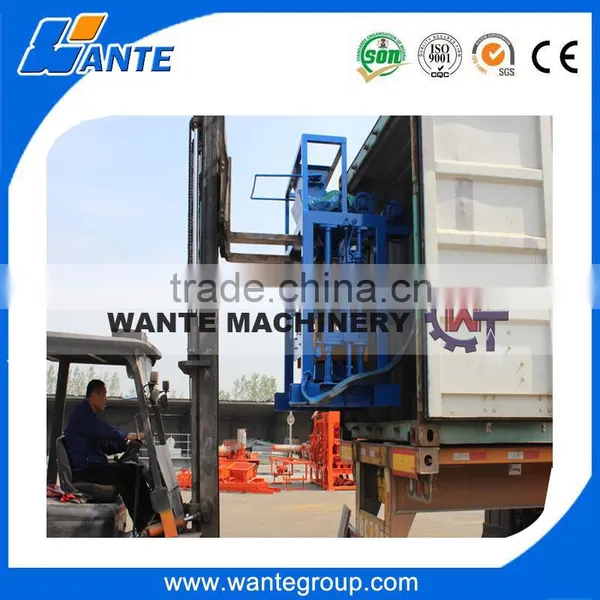

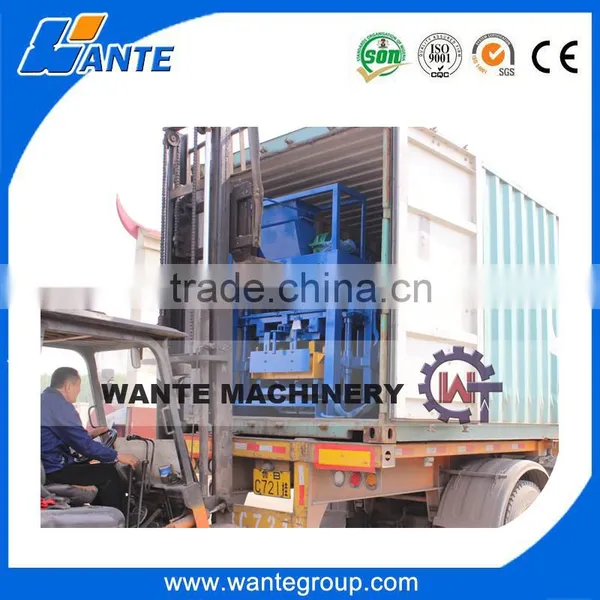

1.Nude package in one container
2,Plywood package in less one container
Product Description

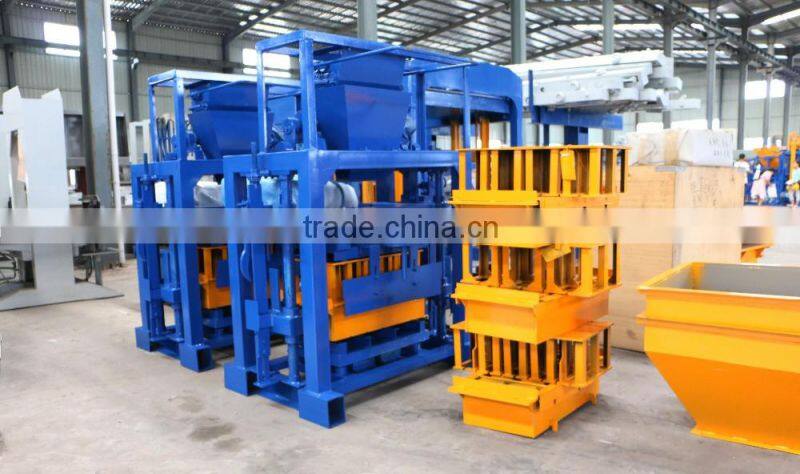

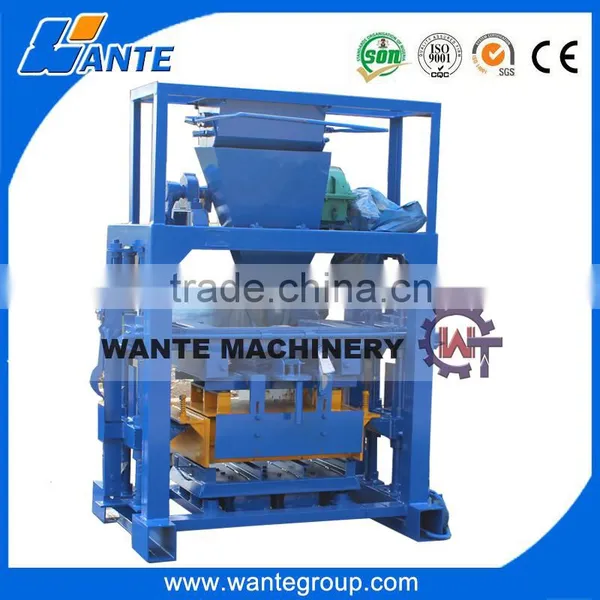

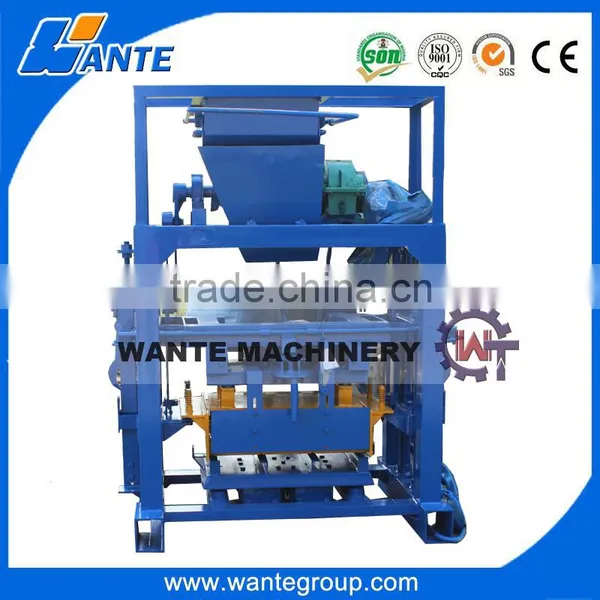

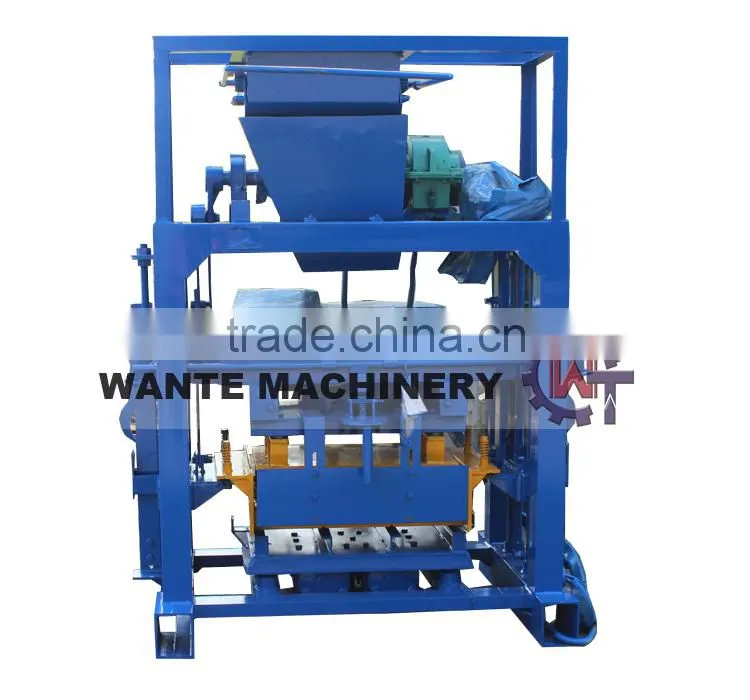

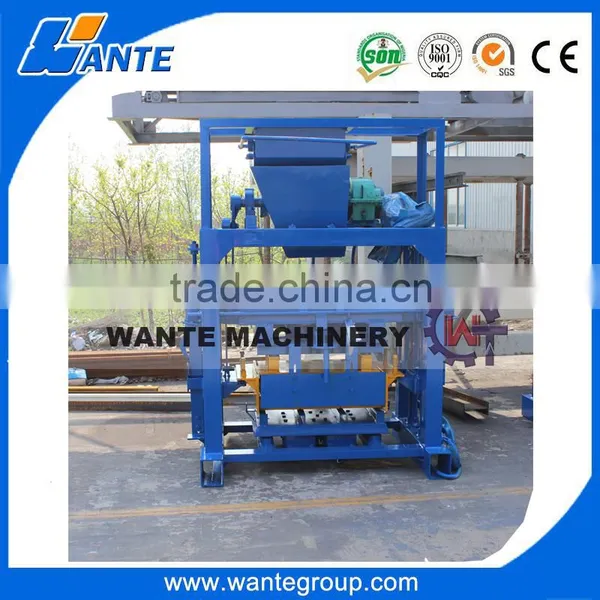

QT40-1 small scale but high profit manual block machine
QT40-1 small scale but high profit manual block machine line includes three parts: QT40-1 manual block machine; Belt conveyor; JD350 mixer.Brief introduction
QT40-1 block machine is a kind of semi-automatic type based on the original medium and small-scale block machine by us .It adopts fourlead ,channel steel stander making the equipment more firm and the mould and the squeeze head Orentation more precise ,and bed mould orientation vertical vibration and upper mould compression vibration ,which improves the efficiency greatly and manufactures blocks with more average density and higher strength.
Main techinical parameters
Dimension of host machine | 1650*1380*2100mm | Power of host machine | 8.8 kw |
Weight of host machine | 2T | Vibration force | 30kn |
The size of the pallet | 850*450*25mm | Models of mixer | JD350 |
Rated Voltage | 380V/220V | Forming period | 30-35s |

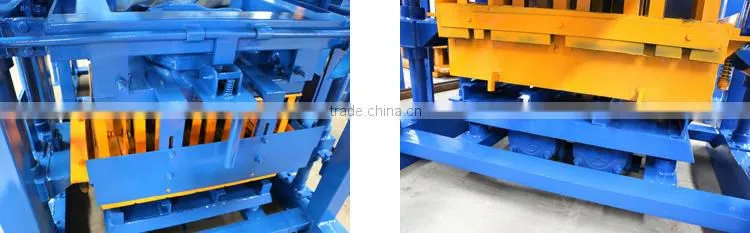

Details of the machine

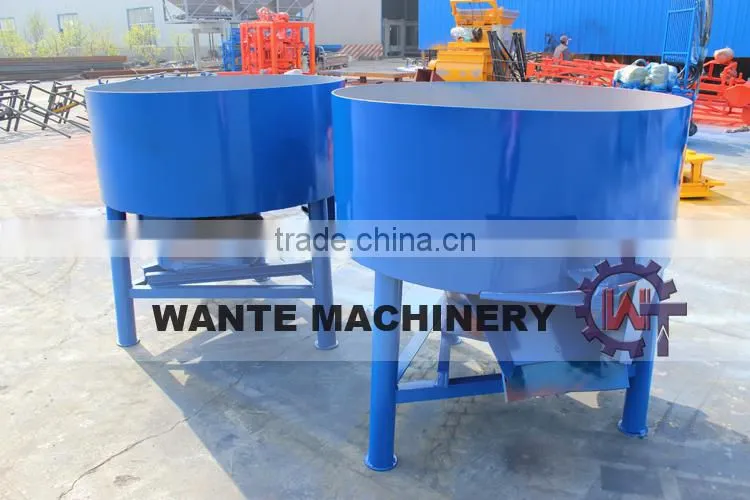

JD350
JD350 Mixer main technical parameters
Model | JD350 | Cycle time | 150 |
Charging capacity | 500 | Overall size | 1200*1200*1500 |
Discharding capacity | 350 | Mixer pan size | 1200*500 |
Production capacity | 6-8 | Total mass | 400 |
Max aggregate | 30-60 | Electric power | 380V/220V |

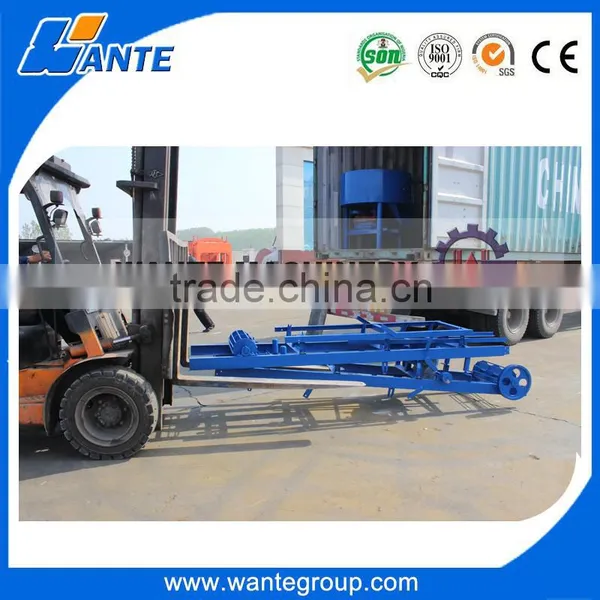

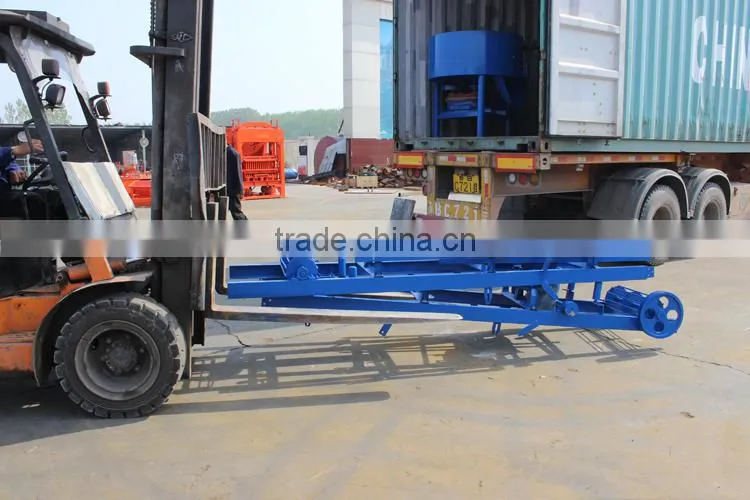

Belt conveyor
Main parameters
Belt width (M) | 6 | |
Belt length (M)/KW | 6/2.2 | |
Belt speed (M/S) | 2 |
Company information
Linyi Wante Machinery Co.,Ltd was bulit in 1996, its main products are all kinds of brick making machines and crushing machines. We are dedicated producers and professional sellers of all these machines, keeping best quality in the same price and the best price with the same quality. Our company can also produce machines based on your design if you need tailored machinery. This is Taber Jiang, contact me online or by phone and email if youhave any need about brick machines or crushing machines, we will never disappoint you.
Just input your requirements in the following blank and then click"Send", you can also contact me by phone or WhatsApp.
Skye Fan, WhatsApp:0086 17853995660.

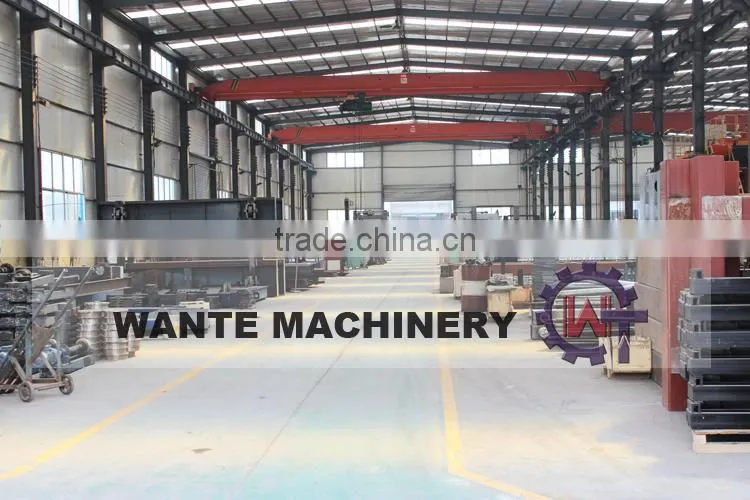

Company Profile

Linyi Wante Machinery Co., Ltd. has long engaged in the research, production and sales of block making machines. There is state-of-the-art equipment, superb technology and high-standard test bases. Our company has always been adhering to the "integrity, pragmatism, innovation, development" spirit of enterprise, constantly absorbing domestic and foreign advanced technologies and mature experience. After 10 years of unremitting efforts, we have rapidly developed into a leading enterprise in the industry. Our main products: aerated concrete production lines, concrete block making machines, hydraulic paver block machines, cement pipe machines, widely used in building materials, roads and bridges, energy and others. On the foundation of the domestic market, we focus on the development of international market. Our products have been exported to more than 100 countries and regions, such as Africa, Southeast Asia, the Middle East and South America, with frequent international business dealings. We have established a good market reputation. Our company has a perfect quality management system, and has passed the ISO9001:2000 international quality management system certification. Besides, our company has established our own sales network in many countries around the world, and has set up sales branches and service outlets in major cities across the country. So we are able to provide our clients with timely and convenient service. We adhere to the brand philosophy that "excellence, do first-class products, creating a model for the industry", and enhance the brand ideology of "building the brand quality, service, innovation, positive enterprising, noble professionalism" to drive our company forward to a first-class enterprise.
