Product Description
QT4-24 high efficient semi-automatic hollow block making machine
QT4-24 is mechanical vibration type baking-free brick machine,push-pull mould by electric.dosing material at a time,easily operated,save labour with small workforce.Regular production use 5 workers,one worker control mixer,one operate the host machine,two take charge of transporting formed blocks.Main technical parameters
| Overall size | 2060(L)×1730(W)×2580(H)mm | power of host machine | 13.45kw |
| Total weight | 3000 KGS | vibration force | 35.5kn |
| Pallet size | 850*550*25mm |
models of mixer | JD350 |
| Electricity | 380V/220V/ (adjustable) | forming period | 24S |

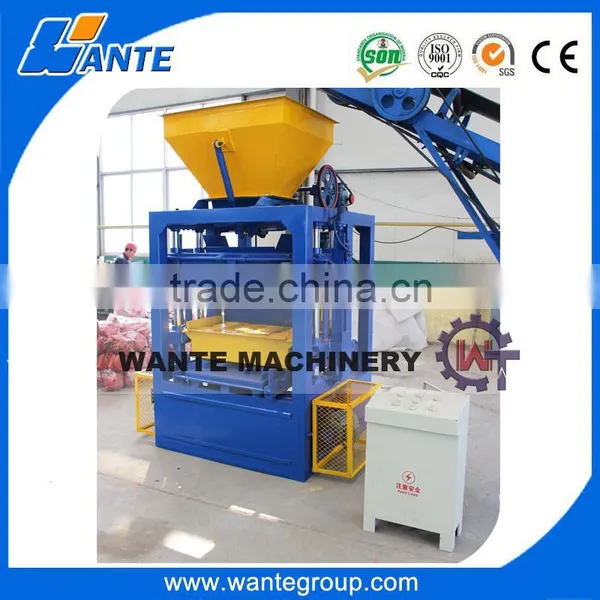

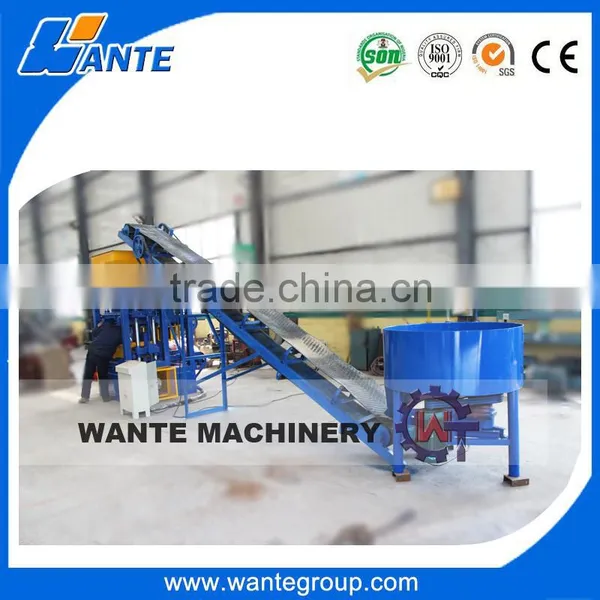

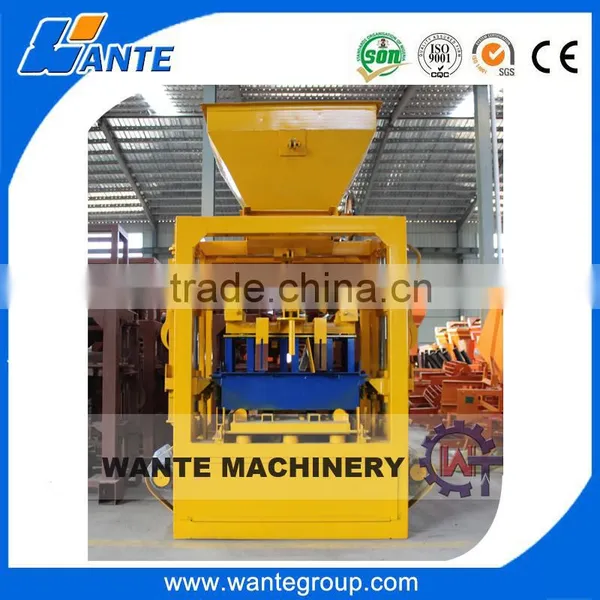

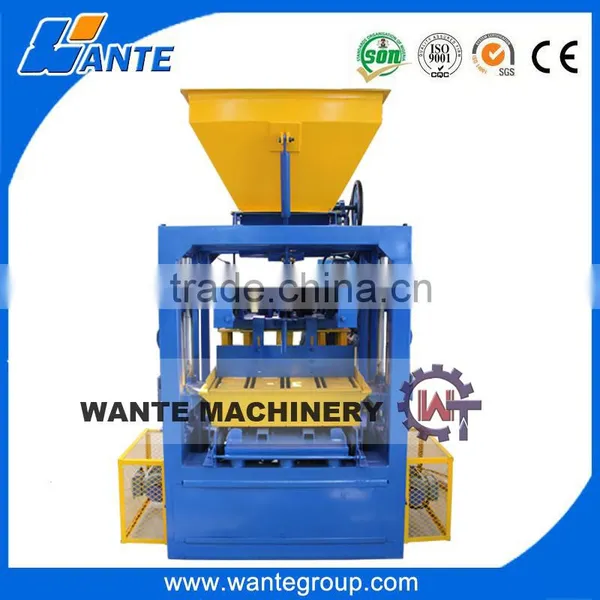

Details of machine
Theoretical production capacity
| size(L*W*H) | Pcs/Mould | Pcs/Hr | Pcs/8Hr |
| 400*100*200 | 8 | 1152 | 9216 |
| 400*150*200 | 5 | 720 | 5760 |
| 400*200*200 | 4 | 576 | 4608 |
| 400*250*200 | 4 | 576 | 4608 |
JD350 Main technical parameters
| charging capacity(L) | 500 | overall size(mm) | 1200*1200*1500 |
| dischardig capacity(L) | 350 | mixer pan size(mm) | 1200*500 |
| production capacity(m3/h) | 6-8 | total mass | 400 |
| max aggregate diameter(mm) | 30-60 | electric power(kw) |
380V/220V |
Stacker machine
Conveyor belt
Pallet
Packaging and shippingOur services
Pre-sale
(1) Professional suggestions (raw material matching, machine selection, planThe condition of building factory, feasibility analysis for brick machine production line)(2) Device model choice (recommend the best machine according to the raw material, capacity
and the size of brick)
(3) 24 hours on-line service
(4) Welcome to visit our factory and production line anytime,if you need, we can Make inVitation
card for you.
(5) Introduce the company file, product categories and production process.
Sale:(1) Update the production scheduling in time
(2) Quality supervision
(3) Product acceptance
(4) Shipping on time
After-sale:(1) The engineer will guide to carry out the plant at the clients side if needed.
(2) Set up, fix,and operate
(3) offer training to the operator until they are satisfied at clients side.
(4) Skill support the whole using life.
(5) Recall clients regularly ,get feedback in time,keep well communication with each other
