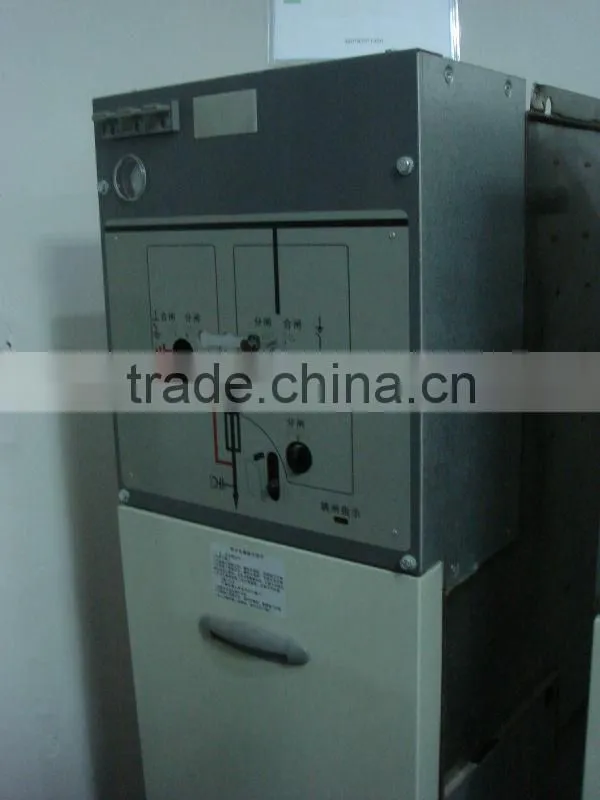

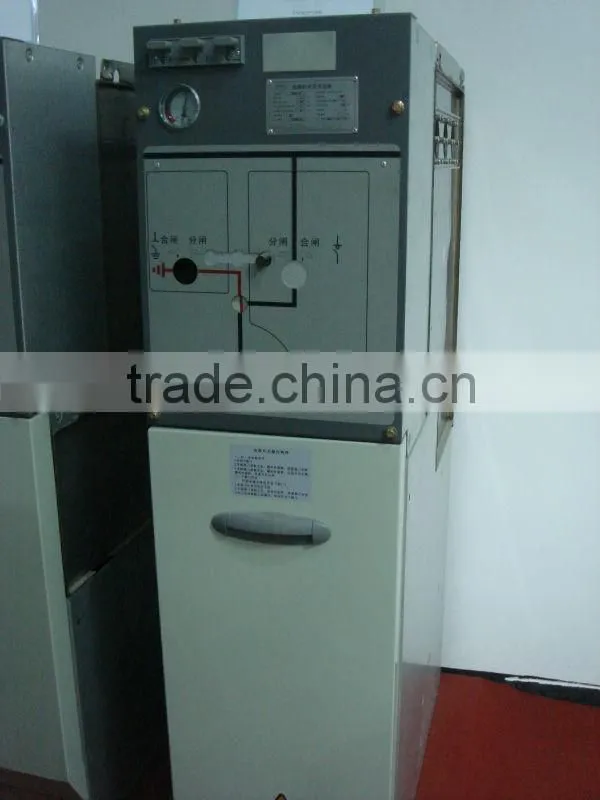

Help Center12kv mv Sf6 Ring Main Unit Switchgear
Related Products
-
11kv Sf6 Ring Main UnitUS$ 1,500 - 3,000MOQ: 1 Set -
Medium Voltage Electrical SwitchgearUS$ 1,500 - 3,000MOQ: 1 Set
-
11kv Sf6 Gas Insulated SwitchgearUS$ 1,500 - 3,000MOQ: 1 Set
-
24kv Sf6 Ring Main Unit RmuUS$ 1,500 - 3,000MOQ: 1 Set
-
Kyn Series 11kv Metal Enclosed SwitchgearUS$ 1,500 - 3,000MOQ: 1 Set
Specifications
1.3 to 24kv are available2.standard: IEC,GB,DIN
3.modular design,maintenance free,
4. SF6 insulated,whole sealed
Our K series switchgear can be divided into two types: common box type and unit-combination extendable type. With perfect corrosion resistant enclosure and sealing, it can be used in various places.
It is widely used in 6-24kv power distribution network, such as indoor/outdoor switch station, box-type transformer substation, residence district, business center, buildings.
Our switchgear meets the following standards:
-International standard:
IEC60376 IEC60129 IEC60298 IEC60265-1 IEC60420 IEC60694 IEC60282 IEC60056 DINVDE0670 (German standard)
-National standard:
GB11022 GB3906 GB1984 GB3804 GB16926
K series switchgears can also be called:
SF6 gas insulated ring main unit(RMU)
SF6 gas insulated switchgear(GIS)
ring main unit switchgear, switchgear
whole sealed ring main unit switchgear
Other types switchgears are also available.
Specification:
|
Cable incoming and outgoing line K unit |
Transformer outgoing line T unit |
Circuit breaker V unit |
Rated voltage KV |
6-24 |
6-24 |
6-24 |
Rated frequency Hz |
50/60 |
50/60 |
50/60 |
Rated insulation level |
|
|
|
1minpower frequency withstand voltage KV |
50/60 |
50/60 |
50/60 |
Lightning impulse withstand voltage KV |
125/145 |
125/145 |
125/145 |
Rated current A |
630 |
≤200 note 1) |
630 |
Breaking /making capacity |
|
|
|
Rated active load breaking current A |
630 |
|
630 |
Rated closed loop breaking current A |
630 |
|
630 |
5% active load breaking current A |
31.5 |
|
31.5 |
Rated cable charging breaking current A |
50 |
|
50 |
Rated transfer breaking current note 2) A |
|
1700/2700 |
|
Rated short circuit breaking current KA |
|
Note 3) |
20 |
Rated short circuit making current KA |
50 |
|
50 |
For more detailed specifications, pls contact us.
Our products are packed in export wooden boxes or cartons.
We can arrange sea shipment or air shipment for you.
we can supply paid samples for test.
Usually we will offer a 12 months warranty.
If any problems resulted from quality and mal-manufacturing, our after-sales service will help you solve these problems.
We will help you with technical problems during installation and marketing.
Combining manufacturing experience, new technology and industrial knowledge, TENLEE aims to build advanced power distribution and protection systems.
TENLEE is specialized in manufacturing a comprehensive range of solutions from 12kv to 36kv for indoor/outdoor systems: complete medium voltage switchgear
vacuum circuit breakers
reclosers
load break switches
disconnector switches
cast-resin transformers from
power automation systems
We have several years of exporting experience. Our customers are all over the world, including Europe, Asia, Africa, America, Middle East. Most of our products export to Europe and are well recognized by them.
Our equipments
1. What is the payment term?
T/T, wire transfer, west union
2. How about the warranty period?
Usually we offer a 12-month warranty period.
3.Do you have type test?
Yes, we have type test in China and we have also passed type test in Europe.
4.How can I order?
Please contact us and tell us your detailed request. Then we will send you our plan
