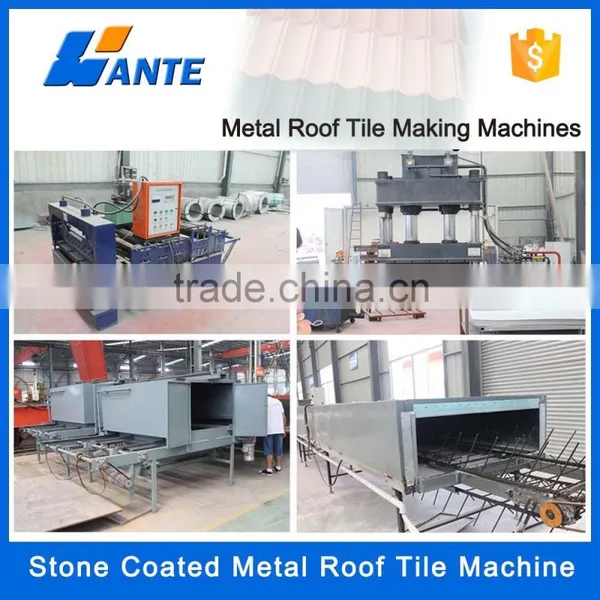

Trade Assurance Stone Coated Roof Tile Roll Forming Machine,stone Coated Steel Roof Machine Quality Choice

Advantage

The equipment is primer spary spraying,the sand blasting adopt PLC control.You can touch the screen to adjust(automatic and manual function).

• save a lot of glue consumption. This equipment uses an encoder to accuratelly detect the location of the tile movement.Turn on automatically when meet tile,turn off automatically when complete the spraying and wait the next tile.It is no glue when no tile. so it saves glue consumption.
• Drying channel capacity increase,save energy,increase speed.Ordinary baking the tiles by longgitudinal direction.while we are now using horizontal and inclined into the drying tunnel.This increases the number of baking. Laterally into the drying tune can accommodate 5 tiles if calculated 7 waves tiles.while longgitudinal direction into which just can accommodate 2 tiles.So our tiles stay longer and drying more thorough in drying tunnel by the same speed.

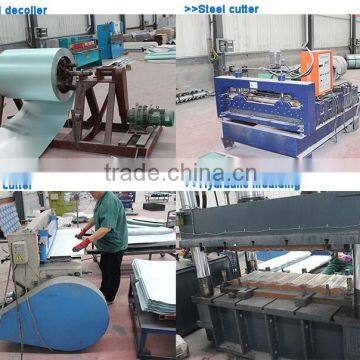

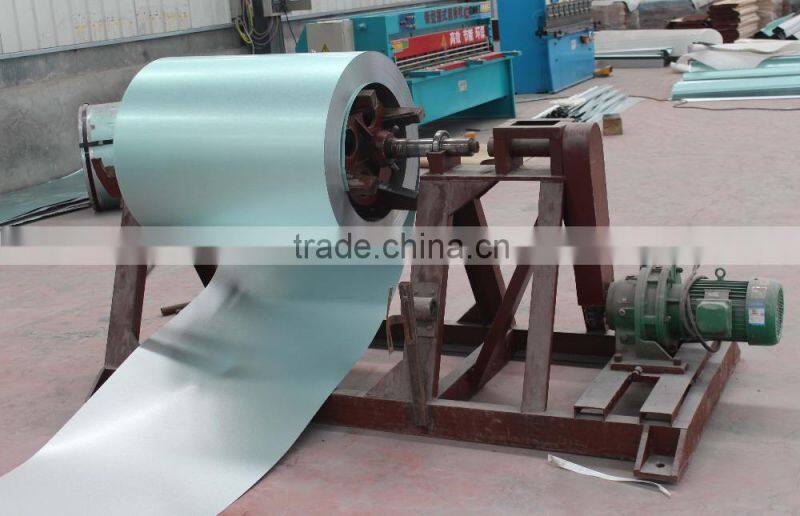

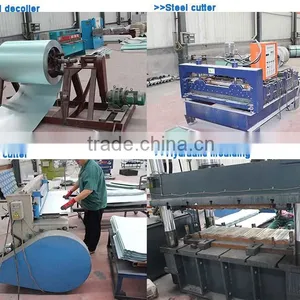

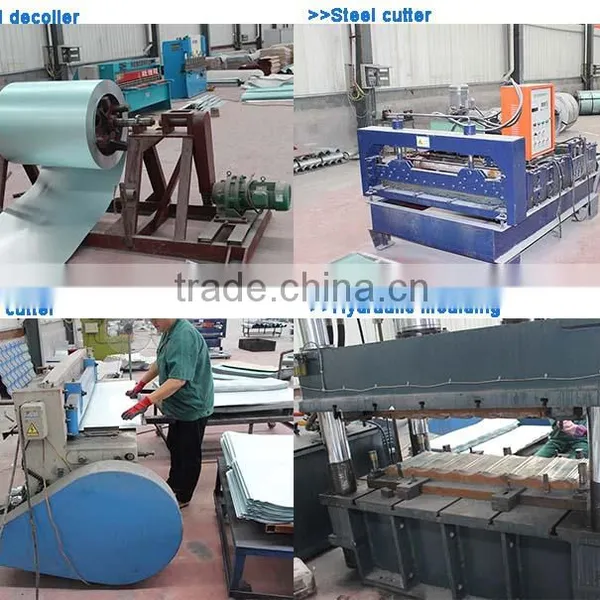

1.Automatic decoiler parts

Outside diameter

1600mm

Inside diameter coil

450 - 550 mm

Max coil width

1250 mm

Coil carrying load

5 ton

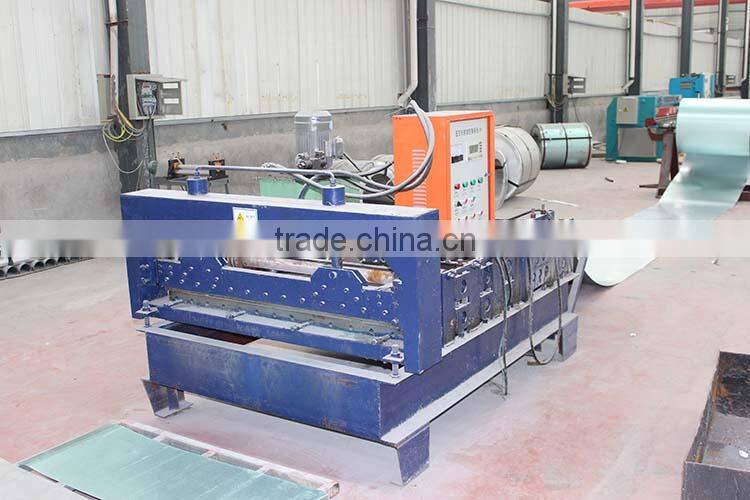

2. Galvanized steel shearing machine part

Appearance size

   2400*1570*1420mm

Shearing machine motor

   1kw,0.55kw

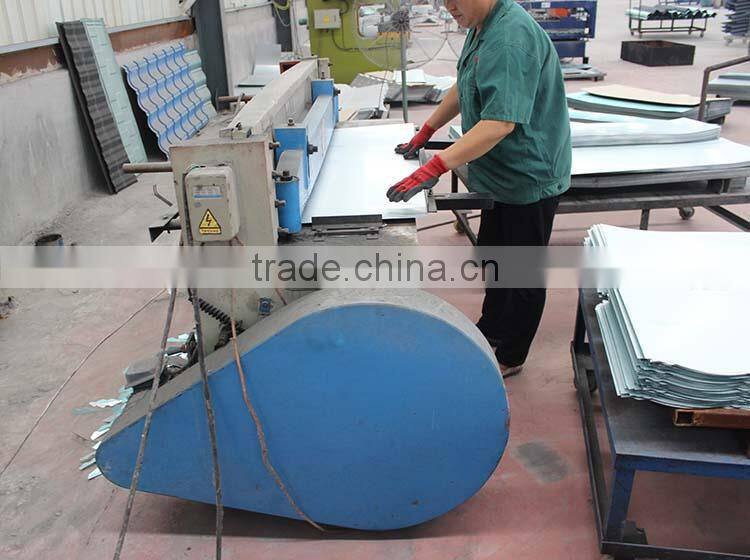

3.  Lace cutting machine part

Appearance size

 2250*900*1100mm

Lace cutting machine motor

3kw

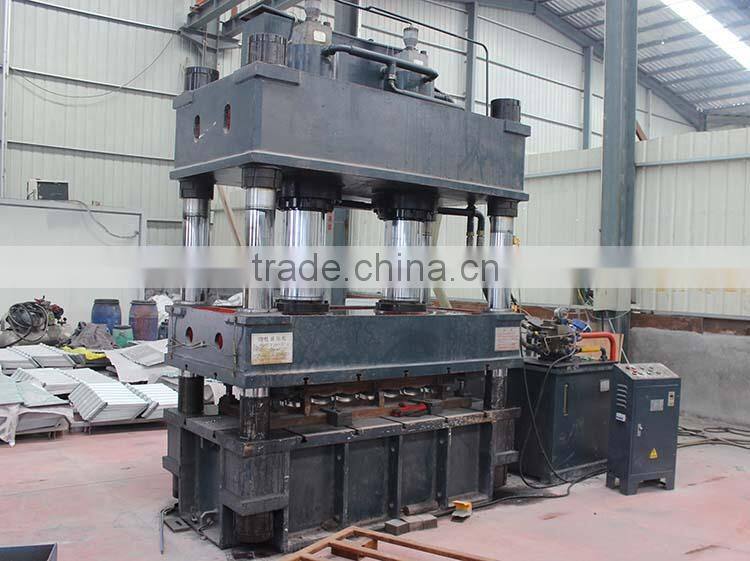

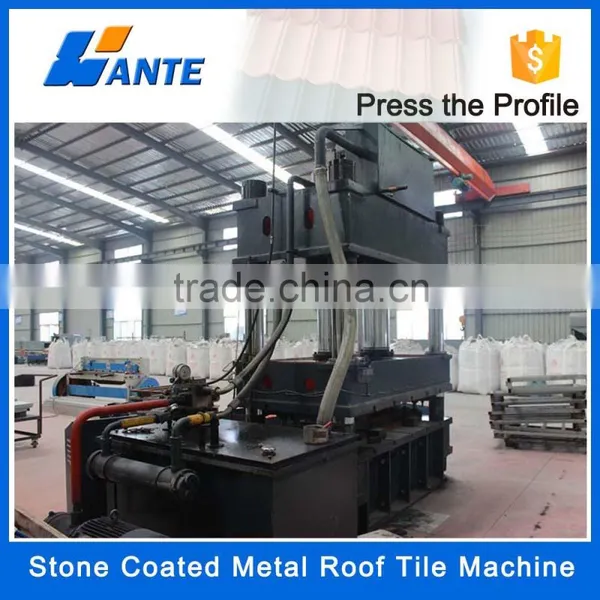

4.  Hydraulic moulding machine

Appearance size

2120*1100*3200

Hydraulic moulding machine motor

22KW

Pressure

25MPa

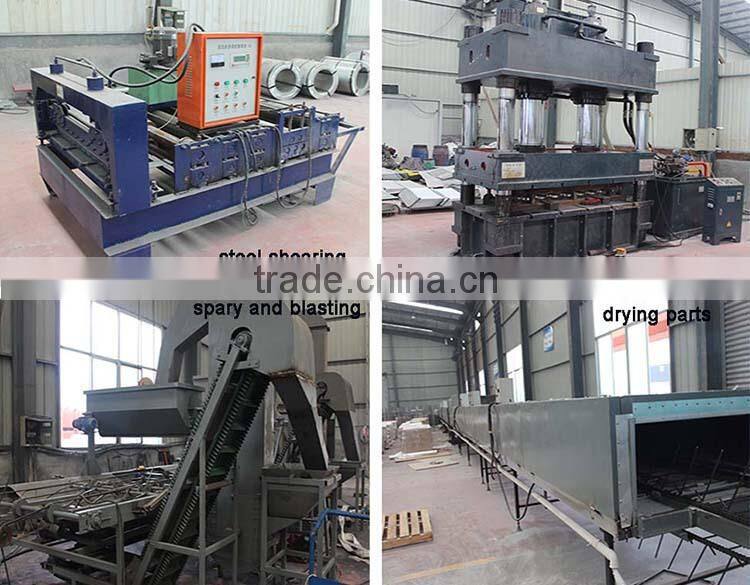

6.auto stone chips blasting part

Appearance size

 3000×3300×2300mm

Framework

 Steel welding

Conveying device

 Chain reciprocating

Automatic sand device

 1 set capability:200kg

Bucket lift

 1 set

Manual sandblast gun

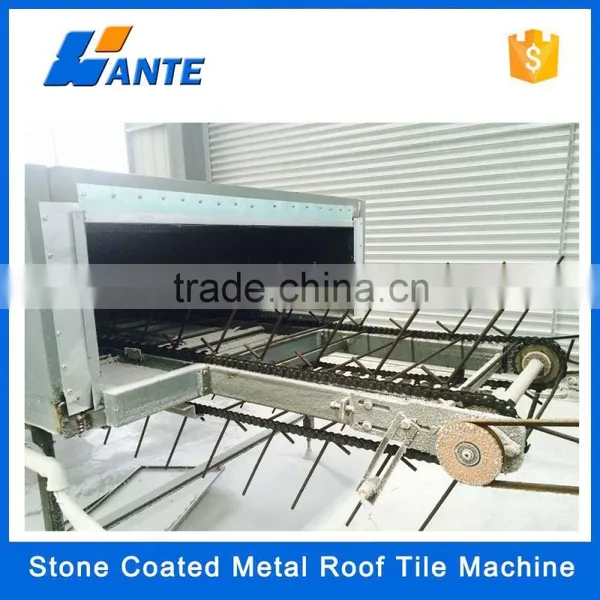

 7.auto drying device

32000×1650×1500mm

Framework

Steel welding

Frame type thermal insulation wall

1.2mm cold steel with Rock wool

Automatic temperature controller

4set  Range:0°~160°

Infrared heating tube

30pcs   Power:30kw

Conveying device

Chain reciprocating

Air cooling device

1 set  Power:200w

8.auto face glue spraying device

3000×850×2200mm

Framework

Steel welding

Damp proof lamp

1 pc Power:100w

Automatic pressure spray tank

1set  capability:200kg

Range :0.6-1Mpa

Conveying device

Chain recirocating

Automatic spray gun

4 sets(spare parts)

Munual patch glue gun

4sets

Dust control of axial flow fan

1 set  power:200w

Automatic glue machine motor

Servo motor,power 750w
