QT4-24 cement brick making machinery,concrete paving blocks philipplines, concrete block equipment

Name: QT4-24 cement brick making machinery,concrete paving blocks philipplines, concrete block equipment
Brand: wante
Price: USD $4,600 - 4,800 / Set

FOB Price

USD $4,600 - $4,800 / Set

1 Set(Min.Order)

Supply Ability 200 Set / Sets per Month
Port Qingdao port or any port of China
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Type:	Hollow Block Making Machine	Brick Raw Material:	Concrete
Processing:	Brick Production Line	Method:	Vacuum Extruder	Automatic:	No
Capacity:	6000 pcs/day	Place of Origin:	Shandong, China	Brand Name:	wante
Model Number:	QT4-24	Voltage:	220v/240v/380v/440v/adjsustable	Power:	12kw
Dimension(LWH):	2060x1730x2580mm	Certification:	ISO9001&CE	Warranty:	1 year
After-sales Service Provided:	Engineers available to service machinery overseas

Packaging Details

The package divided
The full line need packed in small package
Some big parts will divided into small part of loading

Product Description

QT4-24 cement brick making machinery,concrete paving blocks philipplines, concrete block equipment

Advantages:

1>Machine for making block
2>Low investment
3>Multi-function machine for making block
4>Low price, high capacity

QT4-24 cement brick making machinery,concrete paving blocks philipplines, concrete block equipment

(1)The model of the Small machine for making block QT4-24 is a new custom-designed model aimed to the domestic porous brick, standard brick production.
(2)Small machine for making block QT4-24 uses a special double-ended output vibration technology to optimize vibrators so that the vibration force within the uniform will be distributed equably.
(3)Small machine for making block QT4-24 with the use of advanced adjustable hydraulic technology, Small machine for making block QT4-24 the system pressure and flow could be real-time controlled conveniently to meet production requirements of different raw materials.
(4)Small machine for making block QT4-24 with both advanced vibration technology and arch-breaking devices using,Small machine for making block QT4-24 achieved material-scattering and forming vibration controlling respectively, and made material-scattering equable.

QT4-24 cement brick making machinery,concrete paving blocks philipplines, concrete block equipment

QT4-24 small brick making machine Overall size	2060(L)×1730(W)×2580(H)mm
Shaping cycle	24-30 seconds
Pallet size	850×450×25mm (bamboo)
	850×450×20mm (Plastic)
Vibration frequency	Max.4000 R/Min
Upper vibrator	2.2KW
Nether vibrator	6kw
Electricity	380V/220V/ (adjustable)
Total weight	3000 KGS

Detailed parts of QT4-24 cement brick making machinery,concrete paving blocks philipplines, concrete block equipment

JD350 mixer of QT4-24 cement brick making machinery,concrete paving blocks philipplines, concrete block equipment

JD350 mixer
Overall size	1200(L)×1200(W)×1300(H)mm
Shaping cycle	5 mins
Volume	350L (25Kgs Cement)
Electricity	380V/220V/ (adjustable)

Conveyor belt of QT4-24 cement brick making machinery,concrete paving blocks philipplines, concrete block equipment

Conveyor belt
Belt width (M)	6
Belt length (M)/KW	6/2.2
Belt speed (M/S)	2

Capacity table of QT4-24 cement brick making machinery,concrete paving blocks philipplines, concrete block equipment

No.	Block photo	Block size	Pcs/mould	Pcs/hour	Pcs/day
1		400x200x200mm	4	450-500	2500-3500
2		400x150x200mm	5	500-600	3500-4000
3		240x115x53mm	24	3600	20000

Molds of QT4-24 cement brick making machinery,concrete paving blocks philipplines, concrete block equipment

Stacker machine of QT4-24 cement brick making machinery,concrete paving blocks philipplines, concrete block equipment

Bamboo pallets of QT4-24 cement brick making machinery,concrete paving blocks philipplines, concrete block equipment

Delivery photos of QT4-24 cement brick making machinery,concrete paving blocks philipplines, concrete block equipment

Our factory of QT4-24 cement brick making machinery,concrete paving blocks philipplines, concrete block equipment

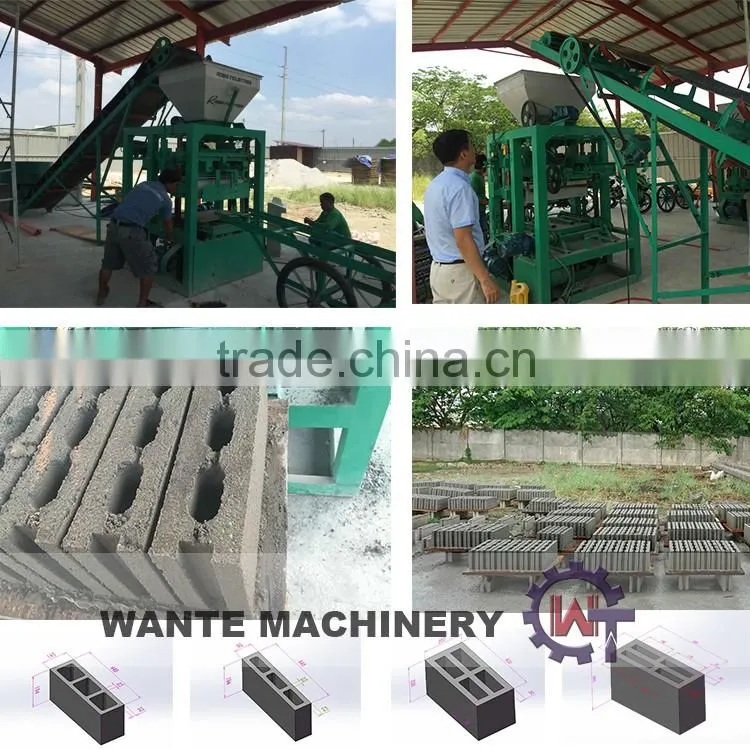

Working site of QT4-24 cement brick making machinery,concrete paving blocks philipplines, concrete block equipment
