QT6-15 Machines for Bricks Making Blok Machine

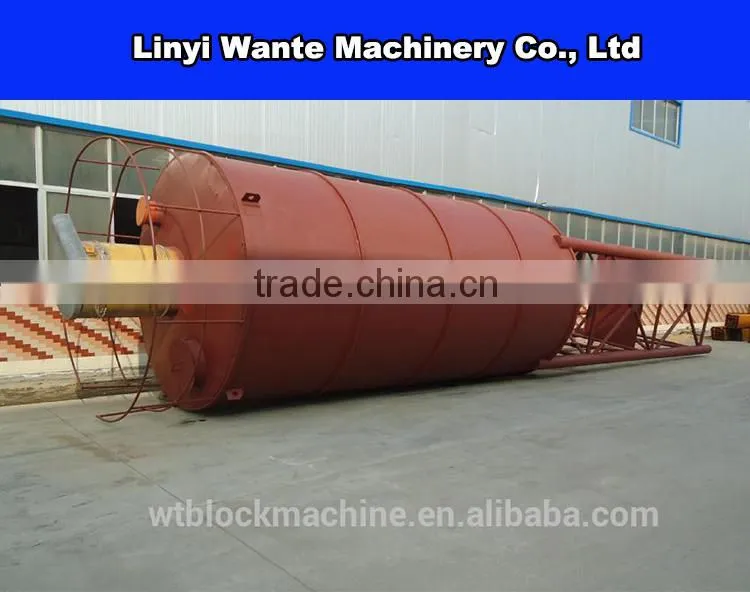

 Cement silo

Length

11M

capacity

50T

Diameter

2.15M

Total weight

5T

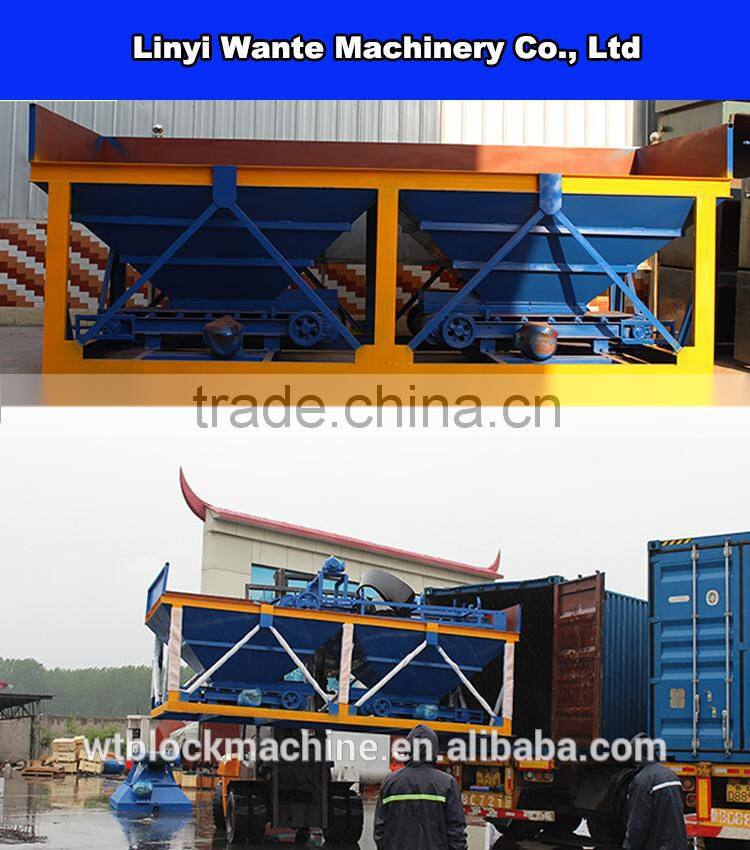

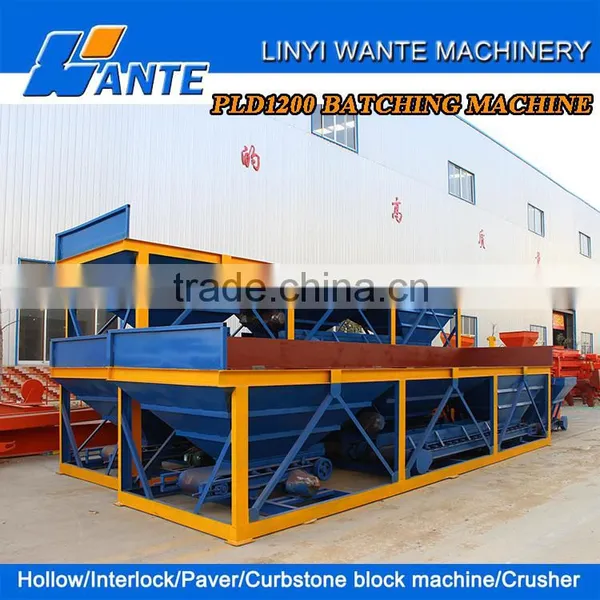

 PLD1200 Batching machine

Weigh bucket capacity (L)

1200

Productivity (m3/h)

56

Batching precision

±1blok machine

Max weighing capacity  (kg)

3000

Number of material matching

3

Work loading height   (mm)

3000

Feeding belt speed   (m/s)

1

Power (kw)

12

Gross weight (kg)

4000

Dimension (mm)

9000*2200*3500

JS500 mixer

Charging Capacity  (L)

800

Discharging Capacity (L)

500

Production Capacity  (m3/h)

≥25

Max Aggregate Diameter mm

≤40/60

Cycle Time  (s)

72

Stirring Vane

Rev Speed  (r/min)

31

Quantity

2×7

Stirring Motor

Model

Power  (KW)

18.5

Lifting Motor

Model

Power  (KW)

5.5

Pump Motor

Model

Power  (KW)

0.75

Dimensions ( mm)

Travel State

3030×2520×2880

Operation State

5025×3100×5680

Total weight (Kg)

3500

 (QT6-15) Conveyor belt

Belt width (M)

6

Belt length (M)/KW

6/2.2

Belt speed (M/S)

2

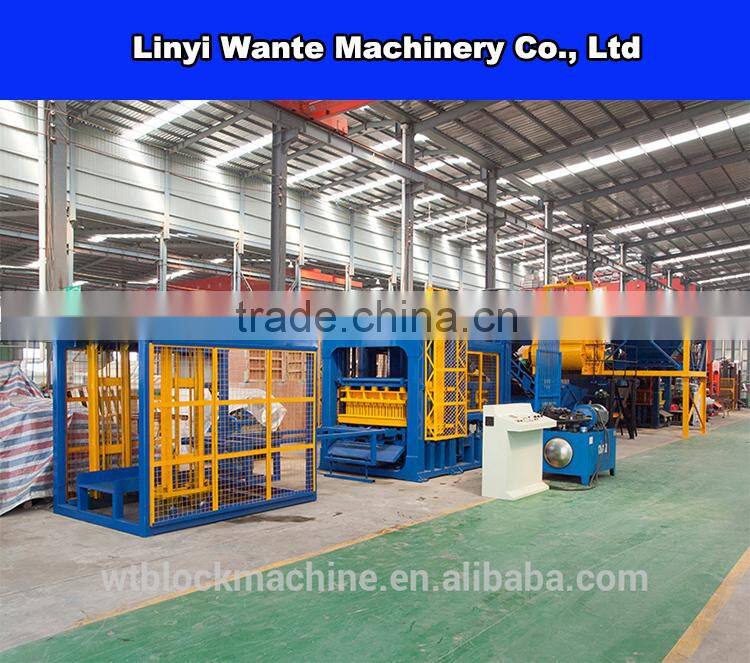

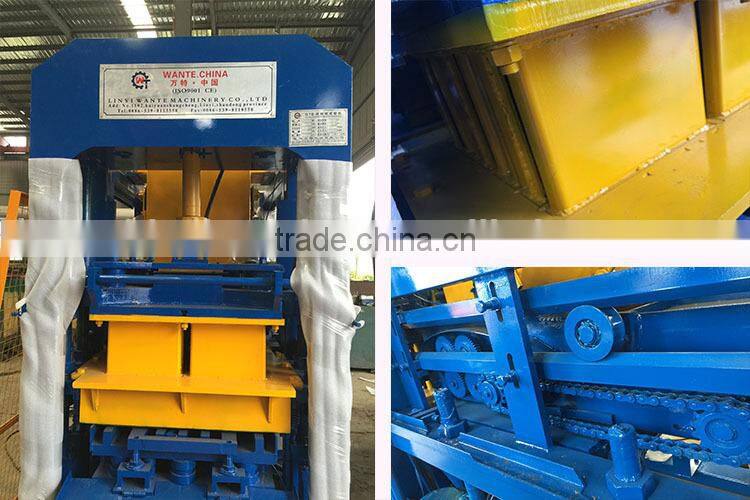

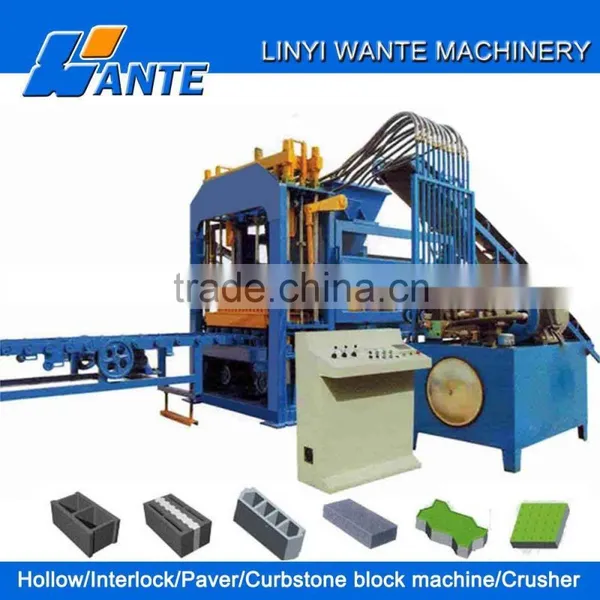

QT6-15  block machin

Overall size

2850x2100x2600mm

Shaping cycle

15-18 seconds

Pallet size

850x750x25mm (bamboo)

850x750x20mm (plastic)

Vibration frequency

Max.5500 R/Min

Electricity

380V/220V/ (adjustable)

Vibration force

55KN

Total weight

7000 KGS

Block sweeper of TOP Quality fully automatic concrete block making machine with Lower price concrete block machine (QT6-15)

Overall size

2100(L)×1200(W)×600(H)mm

KW

0.75

Electricity

380V/220V/ (adjustable)

Total weight

230KGS

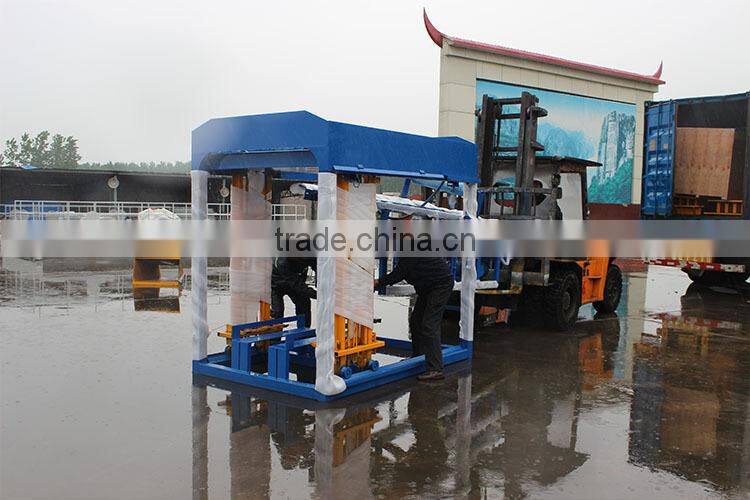

TOP Quality fully automatic concrete block making machine with Lower price concrete block machine (QT6-15) Stacker machine

Overall size

2100(L)×1800(W)×2300(H)mm

Power (KW)

3KW

Electricity

380V/220V/ (adjustable)

Stacker layer

3 floor

Speed

0.5M/S

Total weight

2000KGS
