1.It's a full automatic production line, the host machien can work perfectly with mixer, conveyor belt,
color materail feeder and stacker, the efficiency is very high.
2.From this machine, we strat using hydraulic pressure as main pressure source,so the pression is
very good,the vibration force can be 40-50 kn, this guaranteeing the density and uniform of blocks.
3.QT4-15 is equiped with isolate hydraulic statioin, it's cooling system working well and stablely,
reduces the risk of high temperature of hydraulic oil.

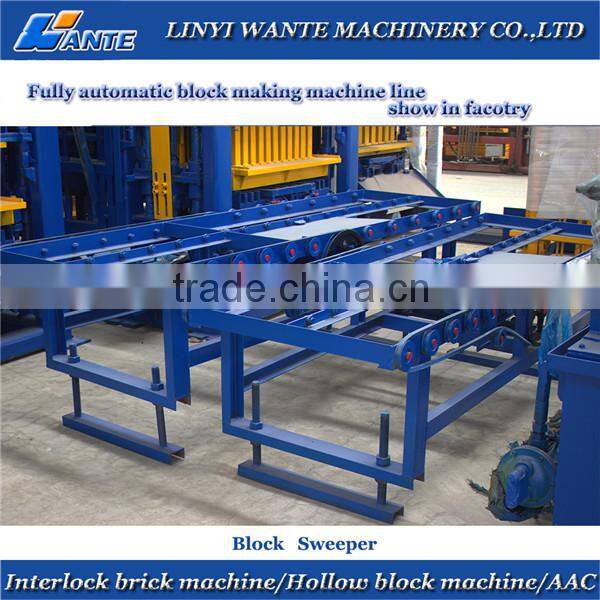

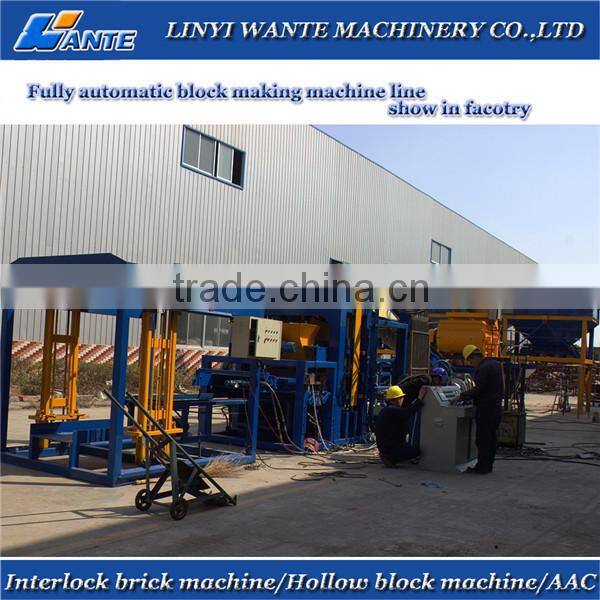

Whole line of QT6-15
Machines and specific parameters

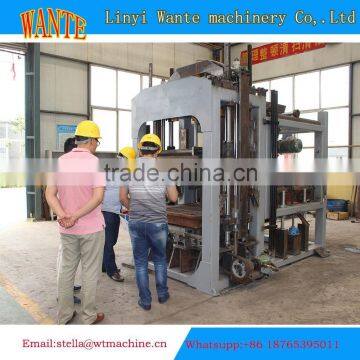

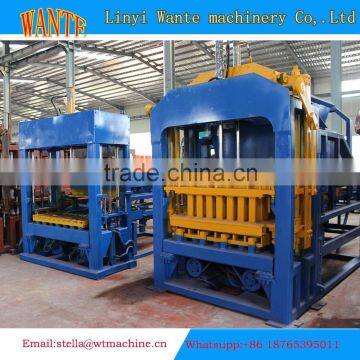

Main machine
Main specification and technical parameters | |
Overall size | 2100(L)×1800(W)×2300(H)mm |
Power (KW) | 3KW |
Electricity | 380V/220V/ (adjustable) |
Stacker layer | 3 floor |
Speed | 0.5M/S |
Total weight | 2000KGS |

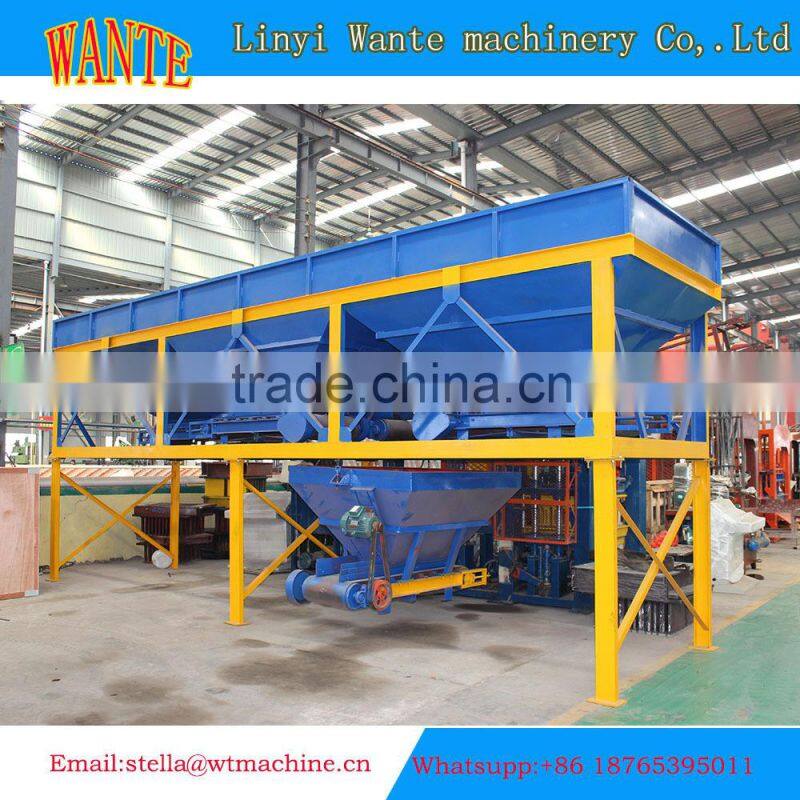

Batching machine----PLD1200
Model | PL1200 |
Weigh bucket capacity (L) | 1200 |
Productivity m3/h) | 56 |
Batching precision | ±1% |
Max weighing capacity (kg) | 3000 |
Number of material matching | 3 |
Work loading height (mm) | 3000 |
Feeding belt speed (m/s) | 1 |
Power (kw) | 12 |
Gross weight (kg) | 4000 |
Demission (mm) | 9000*2200*3500 |
Mixer--JS500
Model | JS500 | |
Charging Capacity (L) | 800 | |
Discharging Capacity (L) | 500 | |
Production Capacity (m3/h) | ≥25 | |
Max Aggregate Diameter (mm) | ≤40/60 | |
Cycle Time (s) | 72 | |
Stirring Vane | Rev Speed (r/min) | 31 |
Quantity | 2×7 | |
Stirring Motor | Model |
|
Power (KW) | 18.5 | |
Lifting Motor | Model |
|
Power (KW) | 5.5 | |
Pump Motor | Model |
|
Power (KW) | 0.75 | |
Dimensions ( mm) | Travel State | 3030×2520×2880 |
Operation State | 5025×3100×5680 | |
Total weight (Kg) | 3500 | |
Main specification and technical parameters | |
Overall size | 2100(L)×1200(W)×600(H)mm |
KW | 0.75 |
Electricity | 380V/220V/ (adjustable) |
Total weight | 230KGS |
Stacker
Main specification and technical parameters | |
Overall size | 2100(L)×1800(W)×2300(H)mm |
Power (KW) | 3KW |
Electricity | 380V/220V/ (adjustable) |
Stacker layer | 3 floor |
Speed | 0.5M/S |
Total weight | 2000KGS |

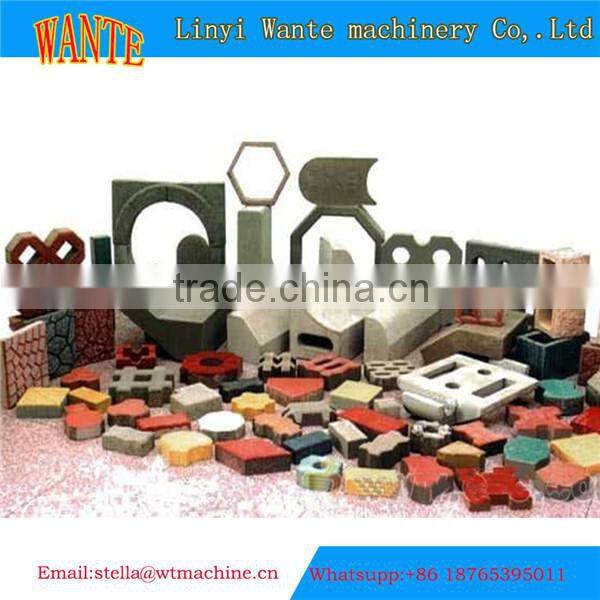

Brick samples

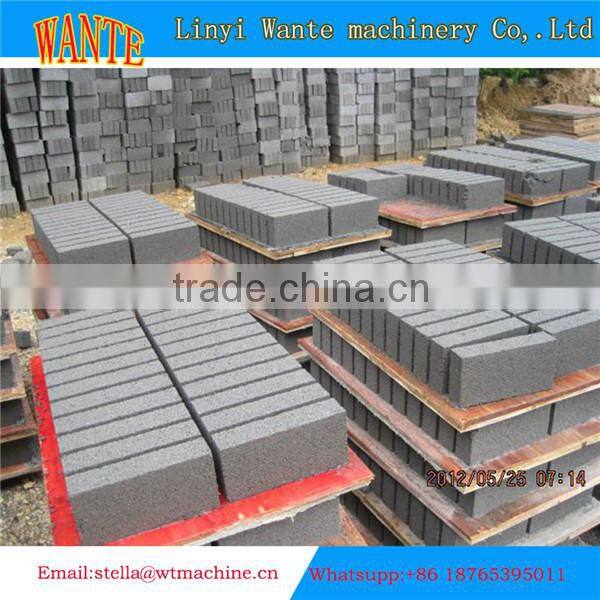

Real blocks showing
Solid bricks
Pavers

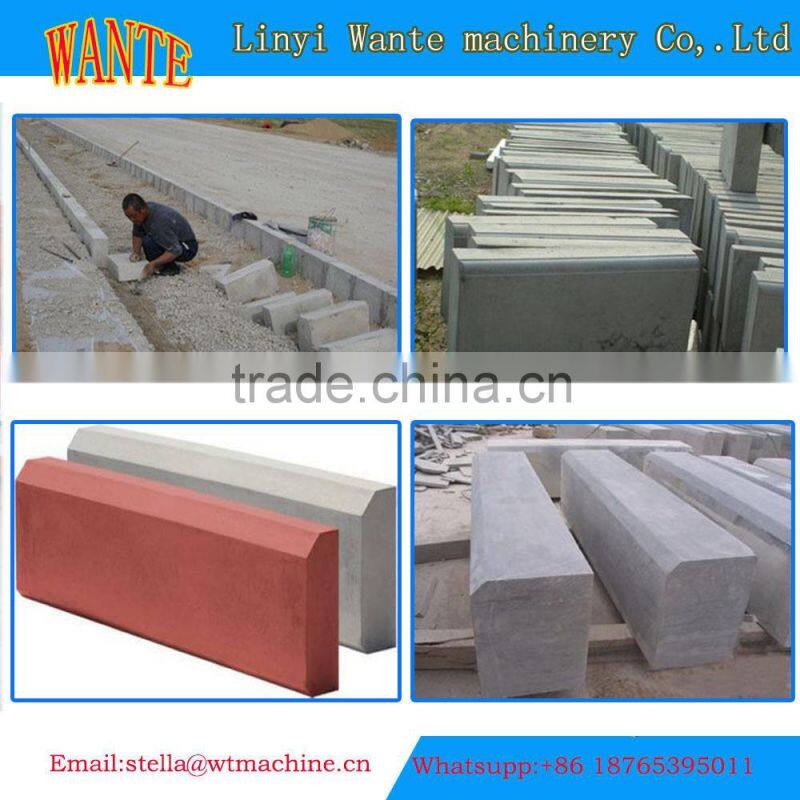

Curbstone
Capacity of QT6-15
