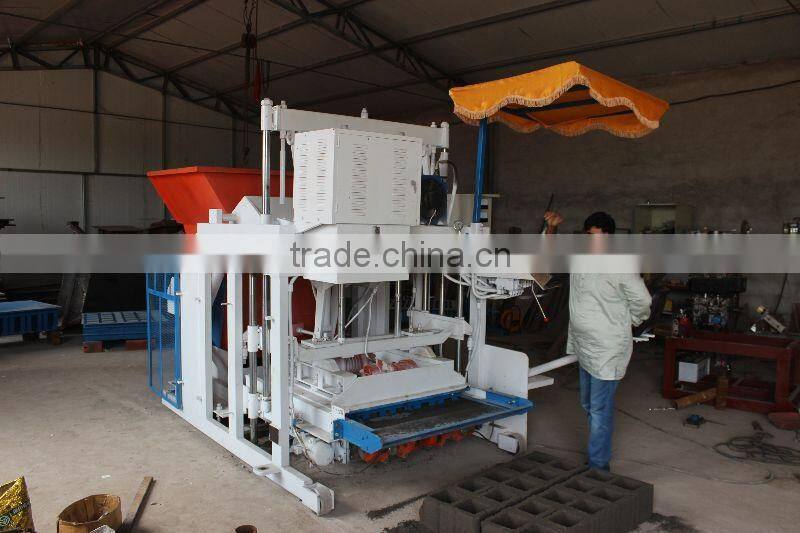

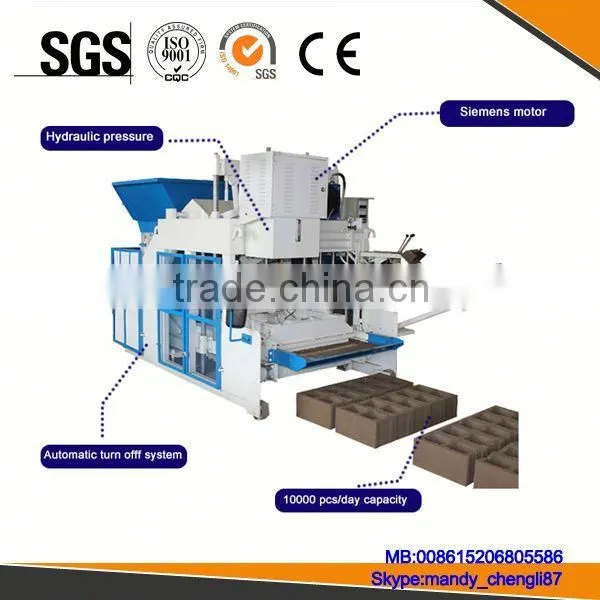

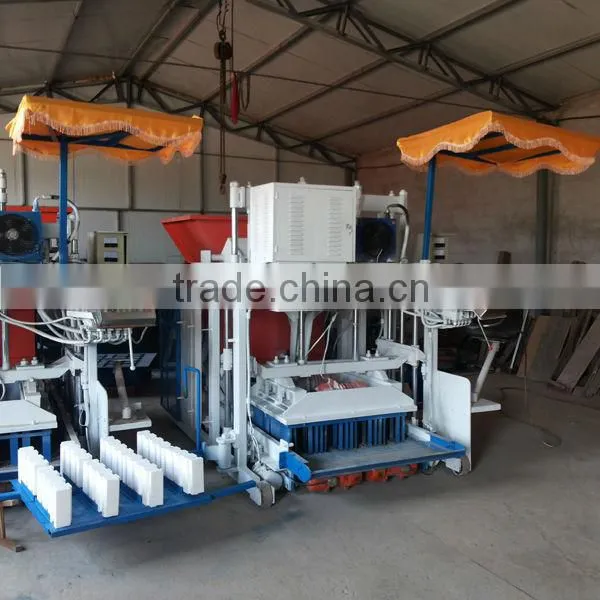

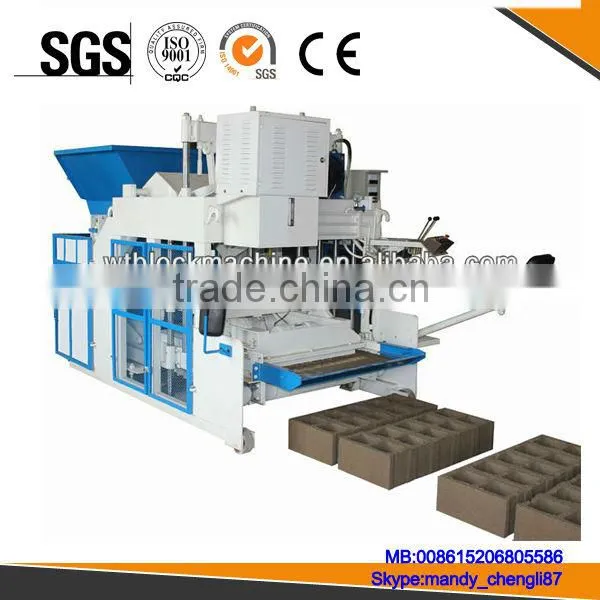

1.Introduction of QMY10-15 bloc de la pose mobil torky
Based on foreign advanced technology and processes, our company research and development the largest Mobile Hydraulic brick making machine.
A.WT10-15 bloc de la pose mobil torky has the largest productivity than any other mobile block machines, which with considerable strength with the fixed QT10-15 block machine.
This kind of brick machine is manufactured on the base of technical modifications to the original block shaping machines, that is changing the former one-time-vibration into twice-vibrations of molding core. So the block density becomes higher, shaping speed quicker and block strength more even. This model of machine can be suitable to the customers who have any kinds of existing cement working sites.
B. Advanced techniques made the host machine designed reasonably, and achieved box vibration, hydraulic stripping, multidirectional automatically movement.WT10-15 works faster because of automatically feeding system. High quality of steel and precision welding made the machine a longer service life and hydraulic system made less fault during work.
C. WT10-15 mobile concrete block making machine has several function features, such as low price, reliable performance, easy operated, stable , lower power consumption. Mass raw material can be used during production, for concrete, cement, small stone , powder ,san ,coal gangue, slag , construction waste and so on.
D.WT10-15 mobile concrete block making machine. Some other main features: 1.the largest mobile machine in China; 2.can produce hollow and solid block; 3.with a HZC35 concrete mixing plant, block and concrete can be the two main products for your fortuned. with mobile concrete mixer you can take the production line to your construction pot or be a lessor for your customer.
WT10-15 bloc de la pose mobil torky specification and parameters
Overall dimension | 3150*1800*2400mm |
Demold method | Hydraulic |
Turning method | Hydraulic |
Hydraulic system pressure | 16-20Mpa |
Excitation frequency | 3200Hz |
Total power | 16KW |
Total mass | 4200KG |
Molding cycle | 10-15S |
Molding | 10 Pcs/mould(400*200*200/390*190*190 mm) |
Capacity | 2000-9000Pcs/hour |

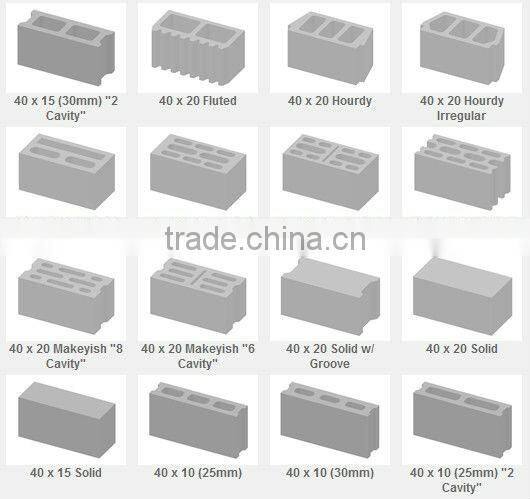

Types of bricks can be made | 390*240*190/390*190*190/390*115*190All kinds of moulds can be made by customers' drawings |
Moving method | Automatically move and hydraulic steering |
Excitation way | Three-dimensional box excitation |
Raw material | Crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes. |
If you have any need or question ,Please contact me freely
I will do my best to help you
Contact person :Mandy Skype:mandy_chengli87 MB :008615206805586
...
