Home > Instruments & Meters > Meter for Liquid & Gas > Flow Meter > Fixed Ultrasonic Flow Meter TFM5100

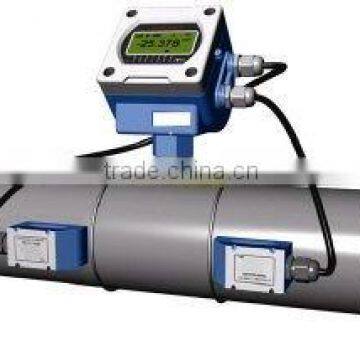

Fixed Ultrasonic Flow Meter TFM5100

Name: Fixed Ultrasonic Flow Meter TFM5100
Brand: AKTEK
SKU: 112018381
Availability: InStock

Fixed Ultrasonic Flow Meter TFM5100 thumbnail-1

Fixed Ultrasonic Flow Meter TFM5100 photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

AKTEK

Model Number:

TFM5100

Contact Supplier Request Quote Chat Now

Aktek Endustriyel Ekipman Ve Enstrumantasyon Limited Sirketi

Payment & Shipping

Payment Methods:

Port of Shipment:

Istanbul

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name AKTEK

Model Number TFM5100

Specifications

Electronics composed of single board:high precision,high fidelity,high competitivity. Not necessary stop flow to install sensors

The Transit Time Flow Meter TFM5100-NG measures flow rate by calculating the spreading time of an ultrasonic wave in a liquid, going upstream and downstream into a pipe. This flow meter is mostly used to measure the flow rate of homogeneous fluids, also with a quite high percentage of suspended solids.

High Accuracy measuring

Linearity: better than 0.5%

Repeatability: better than 0.2%

Accuracy: better than ±0.5% (for speed >0.5 mt/sec)

Wide measuring range: Several types of transducer to be selected, measuring pipe size from DN15mm to DN6000mm with four different types of sensors.

Internal data Logging: Automatic record of :

- the flow data of the last 512 days/128 Months/10 years.

- the power on/off time and corresponding flow rate of the last 32 times.

- working status of last 512 days

Battery Life: From 5 months to 5 years depending on the measurement cycle

Power Supply: 36 VDC BY BATTERY or 8….36VDC, 50 mA

Size/Protection Grade: 96×96×129 mm – IP68

Set-Up: By external keypad or by software via RS485

Output: OTC/4-20mA/RS485 output

Protocol: M-BUS, MODBUS, extended protocol
