Home > Instruments & Meters > Meter for Liquid & Gas > Flow Meter > Portable Flow Meter PT500

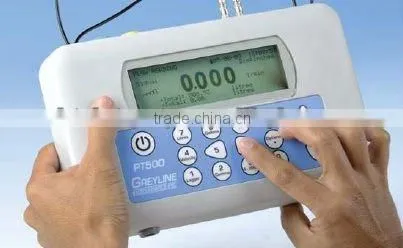

Portable Flow Meter PT500

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Model Number:

PT500

Contact Supplier Request Quote Chat Now

Aktek Endustriyel Ekipman Ve Enstrumantasyon Limited Sirketi

Payment & Shipping

Payment Methods:

Port of Shipment:

Istanbul

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Model Number PT500

Specifications

Measures Flow of Clean Fluids in Full Pipes with NonContacting
Ultrasonic Sensors, Records Values with Data Logger (98000 data)

Portable Ultrasonic Flowmeter Non-Invasive with Clamp-on Sensors for Spot Checks, Troubleshooting and to Balance Flow

Recommended for clean fluids like water, glycol, oil and most chemicals. Portaflow ultrasonic sensors strap-on the outside of pipes from 1/2 to 78 (13 to 2000 mm) diameter. The ultrasonic signal penetrates all common metal and plastic pipe materials. Sensors can be mounted without shutting down flow and there is no obstruction or pressure drop.
Calibration is easy with the onscreen menu system. Enter the pipe diameter, wall thickness and pipe material, and the Portaflow indicates the optimum mounting method and separation distance for the
sensors. Calibration parameters can be stored for up to twenty different sites so that operators can recall calibration setups from the Portaflow memory.
The Portaflow is powered by an internal, rechargeable NiMH battery or can be operated continuously with AC power input. Use it for spot checks or for extended operation as a 4-20mA flow transmitter. Each
Portaflow includes a carrying case, transducer set, mounting track, cables and accessories.

Portaflow PT500 with Data Logger and Sensors for a Wide Range of Pipe Sizes

With two pairs of Transducers, the PT500 works on a wide range of pipe sizes from 0.51 to 78” (13 to 2000
mm) pipe diameters. It includes a 98,000 point data logger with USB and RS232 outputs.The simple, quick-start calibration system calculates sensor separation distance based on pipe diameter and pipe wall material. Flow is displayed in your choice of engineering units. Data can be stored in selectable intervals from 5 seconds to 1 hour and displayed on the instrument in text or graph format.
The PT500 includes a watertight IP67 rated carrying case with foam padded compartments for the flowmeter components. Compact, rugged and reliable, the PT500 is designed for accurate performance in a wide range of industrial applications and environments.
