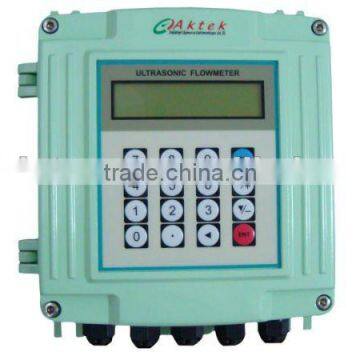

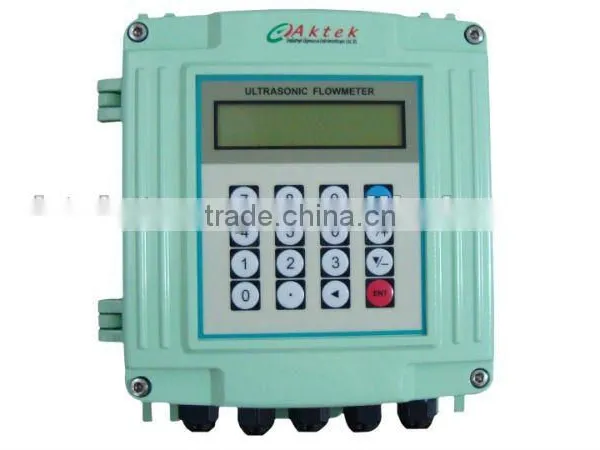

Help CenterUltrasonic Flowmeter TFM2100-NG
US$ 400 - 900
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
AKTEK
Model Number:
TFM2100-NG
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Brand Name
AKTEK
Model Number
TFM2100-NG
Specifications
Electronics composed of single board:high precision,high fidelity,high competitivity. Not necessary stop flow to install sensors
The Transit Time Flow Meter TFM2100-NG measures flow rate by calculating the spreading time of an ultrasonic wave in a liquid, going upstream and downstream into a pipe. This flow meter is mostly used to measure the flow rate of homogeneous fluids, also with a quite high percentage of suspended solids.
Clamp-on sensors: it is not necessary to stop the flow to install them; Wetted sensors.
The time difference during the measuring process could be 0.2 ns.
The time difference during the measuring process could be 0.2 ns.
High accuracy measuring: Linearity - better than 0.5%, Repeatability - better than 0.2%,
Accuracy - better than ± 1%
Wide measuring range: Several types of transducers to be selected, measuring pipe sizes from DN15 to DN6000
Accuracy - better than ± 1%
Wide measuring range: Several types of transducers to be selected, measuring pipe sizes from DN15 to DN6000
Turkish or English menu: The TFM2100-NEW GENERATION can support Turkish or English display, easy to operate, in the near future other languages will be implemented.
Power supply: 24VDC and/or 85-264VAC
Power supply: 24VDC and/or 85-264VAC
Dimensions / Protection Grade: 176mm x 171mm x 70mm / IP66
Data Logger: 4Mb Built-In memory capacity, can be extended 4 GB by an SD card (option)
Data Logger: 4Mb Built-In memory capacity, can be extended 4 GB by an SD card (option)
Outputs: Relay OCT/4-20mA/RS485
Protocols: M-BUS, MODBUS
Protocols: M-BUS, MODBUS
All the measures could be driven to the RS485 in order to save data into a PC remotely transmitted by telemetry.
FIELDS OF APPLICATION
Water treatment,
Slurry and process water pumping
Flow balancing
Hydro-electric, cooling, anti-fire stations
Water District
Oil and chemical industries
Extraction industries
Food, paper and pharmaceutical industries
Car industries
