100 liter Cylindrical Double Layer Glass Chemical Reactor
Double layer Chemical glass reactor,Jacketed glass reactor system specification
1. volume:1L 2L 3L 5L 10L 20L 30L 50L 80L 100L 150L 200L
2. Reacting temperature: - 80~300℃
3. GG17, SS,PTFE sealing,TOPTION Brand
4. University brands designated
5. Explosion-prood device is optional
6. Ac motor,brushless,no sparkle
7. Constant rotationg speed
8. Reflow and distillation system
9.chemical laboratory use
10.reaction mixing vessel
The advantage of TOPTION Jacketed glass reactor
TOPTION Glass vacuum reactor is with double glass design, the inner layer placed reaction solvent can do the mixing reaction, the inner layer can be added with the different hot and cold sources (frozen liquid, hot water or hot oil) to do loop heating or cooling reaction. This jacketed glass reactor can be used to do high temperatureexperiment(max temperature is 280°C),as well aslow temperature experiment(min temperature is -80°C) and vacuum tests. It is an ideal equipment for chemistry small and medium-sized experiment,bio-pharmaceuticals and new materials synthesis. It also is used for extraction of gold.
The most important is that “the design of TOPTION reactor is unique,which can guarantee experiments of more convenient and safer.
Double layer jacketed Glass Reactor product description
Double layer glass reactor main sealing parts pure PTFE material, guarantee absolute vacuum system.
Double layerglass reactor double glass design, inner into reaction menstruum do stirring reaction, interlayer can pass different cold sources (cryoprotectants, hot water or hot oil) do cycle heating or cooling reaction. Setting thermostat conditions, in confined glass reactor, can use require atmospheric or negative pressure conditions conducted stirring response and do reaction solution reflux and distillation is modern Fine Chemical Factory, biopharmaceuticals and new materials synthesized ideal test production equipment.
Double layer jacketed Glass Reactor Key Features:
1. Double glass reactor using VVVF, AC Induction Motor. Speed constant, no brush, no sparks, security staTOPTe, continuous working.
2. Complete glass reactor adopts GG17 high borosilicate glass production good chemical, physical properties.
3. Glass interlayer Interface communication on hot oil through cycle do Heating Reaction, Tung on cryoprotectants can be hypothermia reaction.
4. Can normal temperature reaction, pass last tap namely quickly will reflect heat away.
5. Decentralization material mouth with flange mouth and PTFE valve, container no dead corner detachaTOPTe easy solid materials outfeed.
6. 5 reactor lid, large mouth design easy clean standard mouth socket selectaTOP Te assem TOPT reflux, distillation synthesis device
Double layer Jacketed Glass Reactor Technical parameters :
|
type
|
volume (L) |
Motor power (W) |
Speed (r/min)
|
Stirring torque(1300r/min) |
Inside/outside tube diameter (mm) |
Reactor vessel cover relevant opening size |
||||
center |
left |
right |
later |
before |
||||||
TOPT-200L |
200 |
450 |
10-680
|
38000g.cm |
600*550 |
60# |
50# |
25#/15# |
100# |
25# |
TOPT-150L |
150 |
370 |
28000g.cm |
600*550 |
50# |
40# |
34# |
34# |
29# |
|
TOPT-100L |
100 |
250 |
22000g.cm |
460*500 |
50# |
40# |
34# |
34# |
29# |
|
TOPT-80L |
80 |
250 |
22000g.cm |
460*500 |
50# |
40# |
34# |
34# |
29# |
|
TOPT-50L |
50 |
180 |
15000g.cm |
360*405 |
50# |
40# |
34# |
34# |
29# |
|
TOPT-30L |
30 |
180 |
15000g.cm |
315*360 |
50# |
40# |
34# |
34# |
29# |
|
TOPT-20L |
20 |
120 |
12000g.cm |
315*360 |
50# |
40# |
34# |
34# |
29# |
|
TOPT-10L |
10 |
120 |
12000.g.cm |
245*260 |
50# |
40# |
34# |
34# |
29# |
|
TOPT-5L |
5 |
90 |
9000.g.cm |
200*230 |
50# |
29# |
24# |
24# |
19# |
|
TOPT-3L |
3 |
60 |
5000.g.cm |
200*230 |
50# |
29# |
24# |
---- |
19# |
|
TOPT-2L |
2 |
60 |
5000.g.cm |
150*180 |
50# |
29# |
24# |
---- |
19# |
|
TOPT-1L |
1 |
40 |
2400.g.cm |
150*180 |
50# |
29# |
24# |
---- |
14# |
|

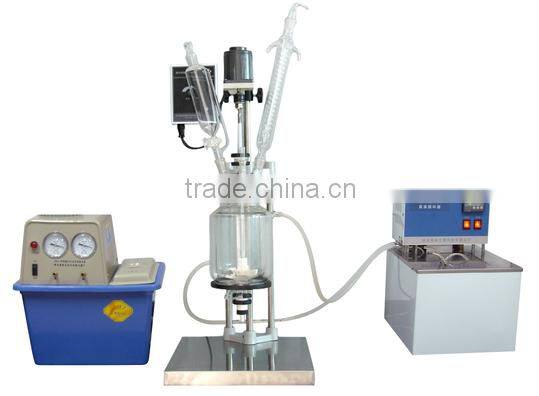

The of the 100L 80L 50L 30L 20L 10L 5L jacketed glass reactors :

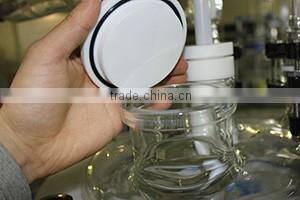

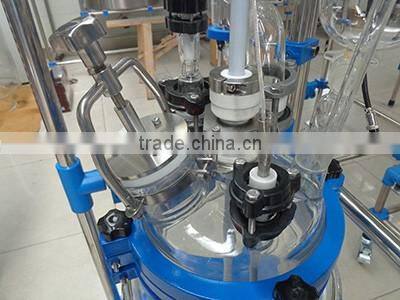

Details information of structure glass reactor:
The CE & ISO certification for jacketed glass reactor:
