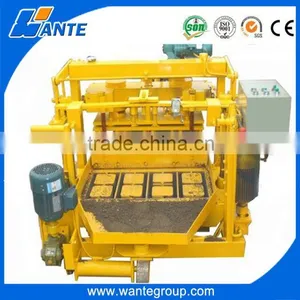

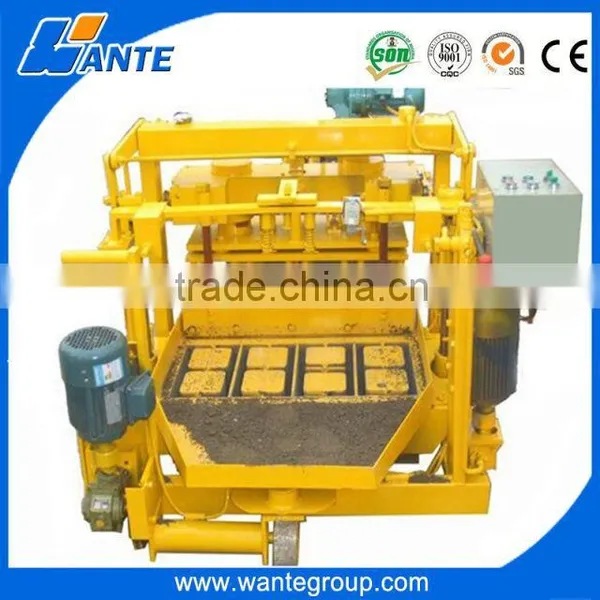

QT40-3 small size movable egg laying hollow block machine from Wante Machinery
advantages:
<1>Small investment, good choice for a new business
<2>Small scale, do not need big space
<3>Hydraulic demoulding and electrical moving, reducing labor
<4>No need pallets, can save a lot of money
<5>pushing mold by electrical motor
Brief introduction
QT40-3A was formed in advanced design, reasonable structure and high technology content. Using molding vibration
and hydraulic transmission, it can walk both automatically and manual. The machine is small shaped,
low energy consumption and easily handled, but with big output and high efficiency. And because of its
simple operation, two workers are sufficient, that also can save labor investment.
Technical parameters
Main specification and technical parameters | |
Overall size | 1800(L)×1400(W)×1100(H)mm |
Shaping cycle | 25-30seconds |
Pallet size | No need pallet |
Vibration Force | 35.5KN |
Vibration style | molding vibration |
Electricity | 380V |
Total weight | 800 KGS |
Specific operation of QT40-3 egg layer hollow block making machine
Details of famous motor
Block capacity of QT40-3 egg layer hollow block making machine
Size(LxWxH) | Pcs/Mould | Pcs/ Hr | Pcs/ 8 Hr |
400X150X200mm (6 inch) | 5 | 600 | 4800 |
400X200X200mm (8 inch) | 4 | 480 | 3840 |
400X250X200mm (10 inch) | 3 | 360 | 2880 |
We design the mould as client's need,this kind block machine is moving one, no need pallets. Different mould size is available. | |||
Block sample
Finished products of QT40-3 egg layer hollow block making machine
Our customers
Packing and shipping
Thanks for your attention, have a good day!!
