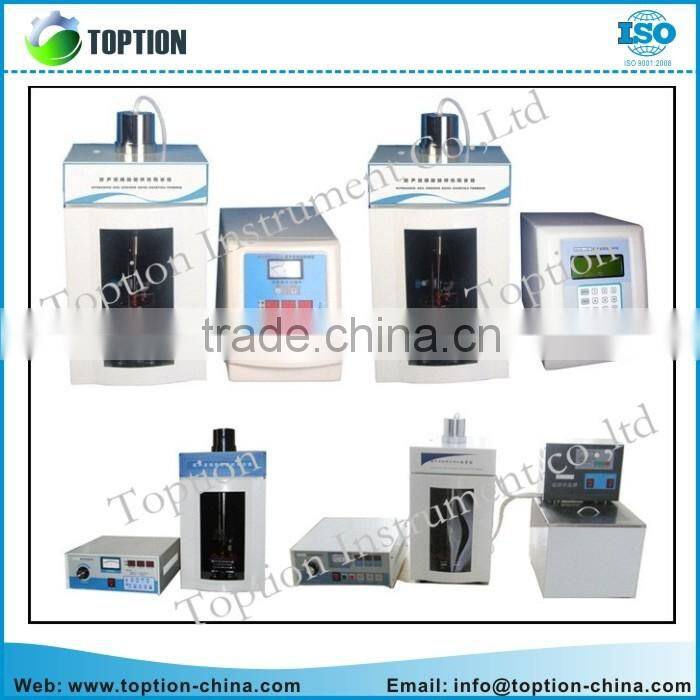

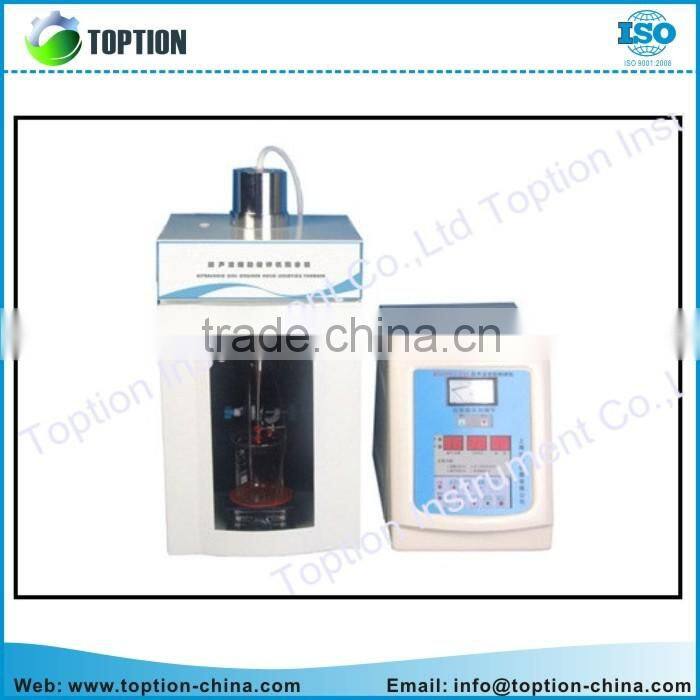

Vertical Type High Quality Ultrasonic Cell Disruptor/ Crusher detail description
Ultrasonic cell crusher is a use of ultrasonic cavitation in the liquid multi-effect, multi-purpose instrument. It used a variety of animals and plants, viruses, cells, bacteria and tissue fragmentation, and can be used to emulsification, separation, smoothing, extraction, anti-foaming, clear, nano-materials preparation, dispersion, and speed up chemical reactions. Instruments are widely used in biology, microbiology, physics, zoology, agriculture, pharmaceutical, chemical, wastewater treatment, nano-materials.
Vertical Type High Quality Ultrasonic Cell Disruptor/ Crusher Key Features
1. Ultrasound probe is imported titanium alloy material, durable.
2. Energy-efficient transducer to ensure a strong effect.
3. Amplitude automatic adjustment, the load situation of the different amplitude consistent.
4. Working hours, ultrasound can set the interval.
5. Microcomputer control, ultrasonic power continuously adjustable.
6. Integrated sample temperature control to prevent overheating.
7. Speakers are separated by a special sound insulation, sound insulation.
Technical parameters:
Ordinary Type:
model |
Operating frequency (KHz) |
Ultrasonic power (W) |
Random horn |
Crushing acpacity (ml) |
Optional horn |
Duty cycle |
TOPT96-IIL |
20-25 |
10-150 |
Φ6 |
0.2-150 |
Φ2,Φ3,Φ8,Φ10 |
1-99.9%
|
TOPT 88-IIL |
20-25 |
10-250 |
Φ6 |
0.2-250 |
Φ2,Φ3,Φ8,Φ10 |
|
TOPT 92-IIL |
20-25 |
20-650 |
Φ6 or Φ10 |
0.2-500 |
Φ2,Φ3,Φ10,Φ12,Φ15 |
|
TOPT 98-IIIL |
19-23 |
200-1200 |
Φ20 |
50-1000 |
Φ15,Φ22,Φ25,Φ28 |
Temp control type (Note: The following three are with a temperature control function)
model |
Operating frequency (KHz) |
Ultrasonic power (W) |
Random horn |
Crushing acpacity (ml) |
Temperature protection |
TOPT92-IIDL |
20-25 |
20-900 |
Φ6 or Φ10 |
0.2-600 |
Temperature of the sample itself to 90℃ |
TOPT98-IIIDL |
19-23 |
200-1200 |
Φ20 |
50-1000 |
|
TOPT99-IIDL |
19-23 |
400-1800 |
Φ20 or Φ22 |
250-1200 |
1. Can be low-temperature thermostat bath option, temperature range: -20 ~ 100 ℃
2. If matching low temperature thermostat bath, double broken glass were a special gift
The Ultrasonic Cell Crusher production and pacgake process
The above specification is just a common. We can customize according to the customer's requirements and actual conditions, provide different kinds of ultrasonic application device, structural design, system configuration and key components of a full range of solutions.
