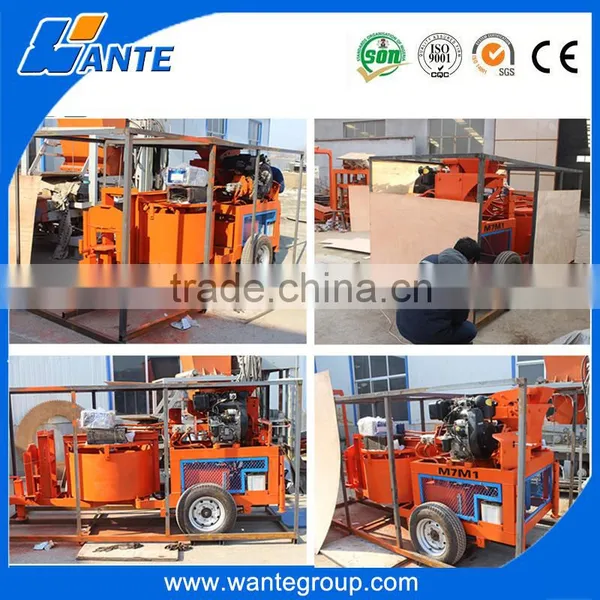

The SUPER M7MI is the latest development ,boasting an improvement of over 45% in production. The minimum daily production of 2200 blocks is equal to 45,000 blocks per month that could produce nine 50m² houses. The SUPER M7MI is an upgrade to the M7MI machine and retains its key features; an integrated pan mixer, diesel engine, all fitted on a mobile frame. The machine is the ideal solution for projects where the machine can be easily moved from site to site and the blocks produced as required.
WT1-20M SUPER M7MI interlocking block machine advantage |
1>M7MI type
2>Diesel engine as power
3>Factory for sale for 21 years
4>Super hydraulic pressure
5>Using soil, clay material, cheap cost
6>Double hopper, more capacity, higher effeiciency
WT1-20M SUPER M7MI interlocking block machine parameter |
Overall size | 2580(L)×1080(W)×1400(H)mm |
Shaping cycle | 20 seconds |
Power | 5.5 KW |
| 18 Hp diesel engine |
Pressure | 16Mpa |
Total weight | 1200 KGS |
WT1-20M SUPER M7MI interlocking block machine capacity |
No. Block Size Piece/mould pieces/hour pieces/day | ||||
| 1 | 230*220*110mm | 1 | 200-250 | 1600-2400 |
| 2 | 230*140*110mm | 1 | 200-250 | 1600-2400 |
| 3 | 230*230*115mm | 1 | 200-250 | 1600-2400 |

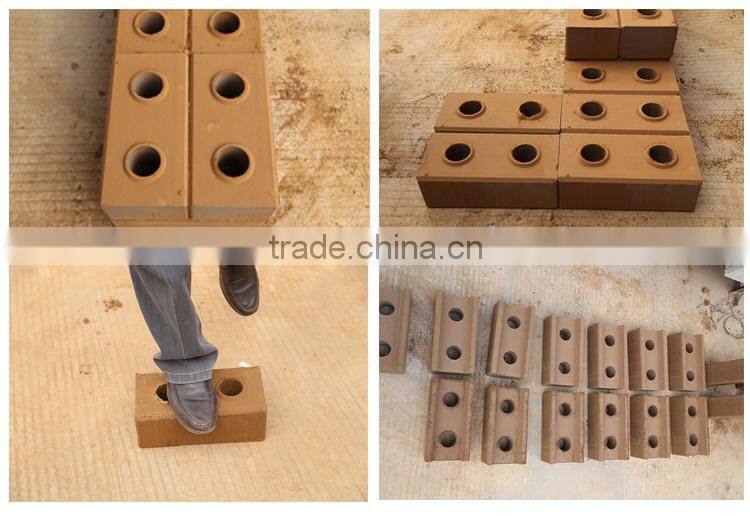

WT1-20M block making machines hydraulically compress soil that contains a small amount of clay and silt mixed with cement into soil cement blocks. When cured, the blocks can be dry-stacked with no mortar. soil cement interlocking blocks lock front and back, top and bottom so each block is dry stacked and locked into place. The unique dry-stacking building system uses mortar in the first few courses and the top 3-4 courses. The rest of the super structure is dry-stacked representing significant savings in time and construction costs. WT1-20Mmachines are ideal for remote sites where transport, cement and sand costs are high. They're also an eco-friendly, cost-saving alternative to conventional cement brick and block machines.WT1-20M machines are also available in diesel or electrical options.
New technology eco brick machine,can produce 2 kinds of blocks as follow:
1 Provide the space planning, plant planning,and equipment layout,
2 Provide on-site equipment installation, commissioning until normal production;
3 Train the workers in production operations, equipment maintenance
4 Provide the necessary production technology formula and costing budget
5 Guarantee one year warranty,
6 Supply molds and accessories in costing price
