HDMI Matrix 4-In 4-Out Full HD 1080P HDMI V1.3 w/ IR Remote Control - Black

Model Number: HTM0404AN

4x4 HDMI Matrix

Sample available

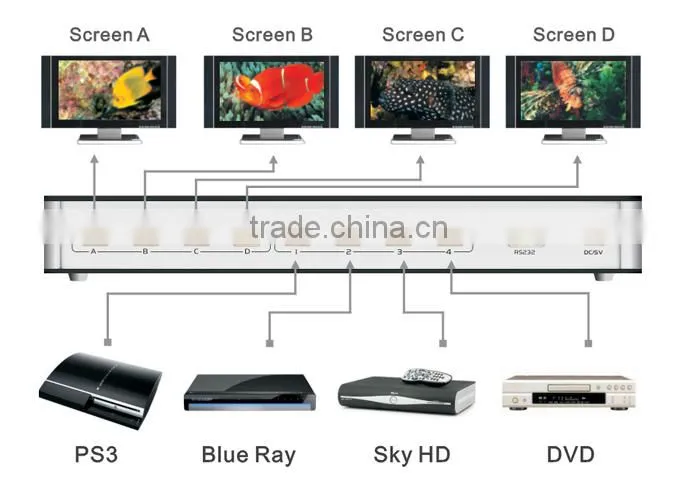

The 4x4 CHEERLINK HDMI Matrix (Model No.HTM0404ANR) with RS-232 and IR Remote is designed to work as a switcher for multiple sources and displays. With a maximum bandwidth of 2.25Gbps, this device will support a sharp and highly defined video in multiple resolutions of up to 1080p. Because it is a matrix switcher, it allows any input to be routed to any output; or the same input to be routed to all outputs or any combination. It completely eliminates the need to constantly move around video input and output cables. RS-232 control allows the switcher to be controlled by systems like Crestron or any computerized software/hardware control systems. It comes with IR remote control and it is HDMI 1.3 compliant.

• Support true matrix outputs,connecting 4 HDMI inputs and 4 HDMI outputs
• Support deep color up to 12bit per channel
• Support HDMI digital audio format:LPCM/Dolby-AC3/DTS7.1/DSD/Dolby true HD/DTS-HD master Audio.
• Remote control;manual operated and automatic selection function
• Remote control function via Rs232
• Favourite input source setting.
• Perfect compatibility with any HDMI applications.
• Great working stability.
• Power Adapter included , plug and play.

• Support 3DTV
• Support resolution: 1080P/1080i/720P/576P/480P/576i/480i
• Support audio format: LPCM, Dolby-AC3,DTS7.1,DSD/Dolby TrueHD/ DTS-HD Master Audio.
• Support deep color up to 36bit
• Support data transfer bitrates up to 2.25Gbps/per chennel
• Tmds clock frequency range:25~225Mhz
• Support input video signal volts:0.5Vp-p
• Support DDCsignal volts:5Vp-p
• Power supply:DC5V/4A
• Power adapter format : Input AC(50HZ.60HZ) A100V-240V;  Output DC5V/4A
• HDMI output cable distance : ≤15m(if need longer,amplifier is needed )
• Operating temperature range : -5 to +35oC(-41 to +95oF)
• Operating humidity range : 5 to 90 % RH (no condensation)

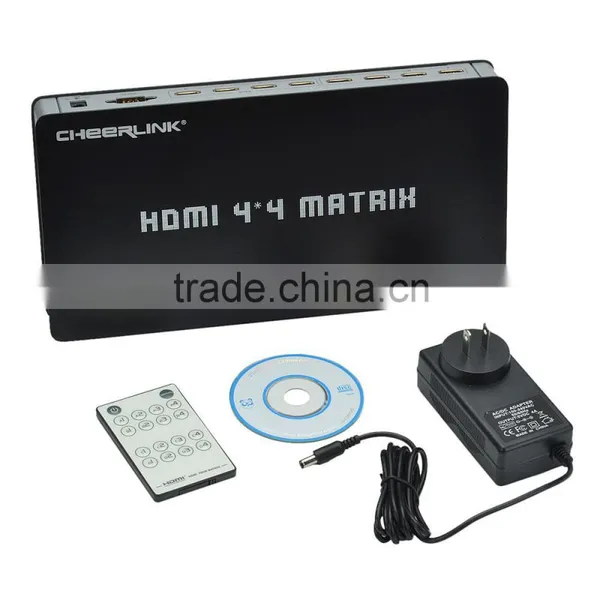

  1 x MatriX
1 x Adapter (US 2-flat-pin plug, 140cm cable)

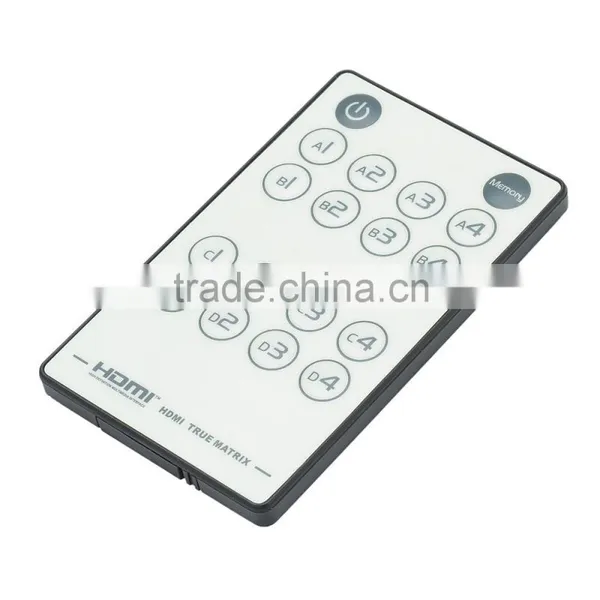

1 x IR Remote controller (1 x CR2025 included)
1 x English user manual
1 x CD
