HDMI Matrix 4-In 2-Out Full HD 1080P HDMI V1.3 w/ IR Remote Control
Packaging & Delivery
| Packaging Details: | color box pack |
|---|---|
| Delivery Detail: | 4Weeks after receive deposit |
Model Number: HTM0402ANR
4x2 HDMI Matrix
Sample available

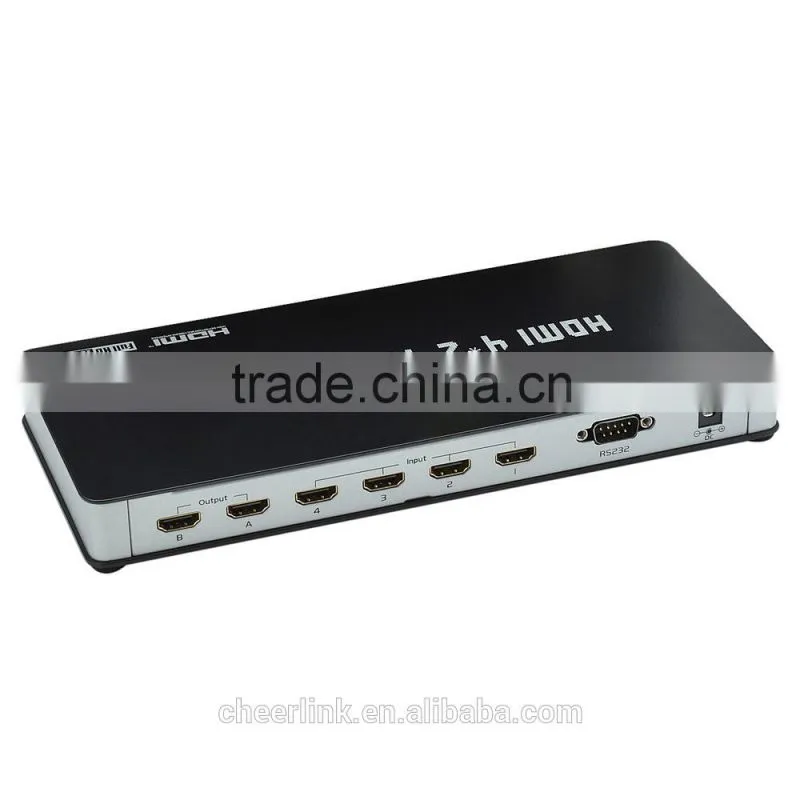

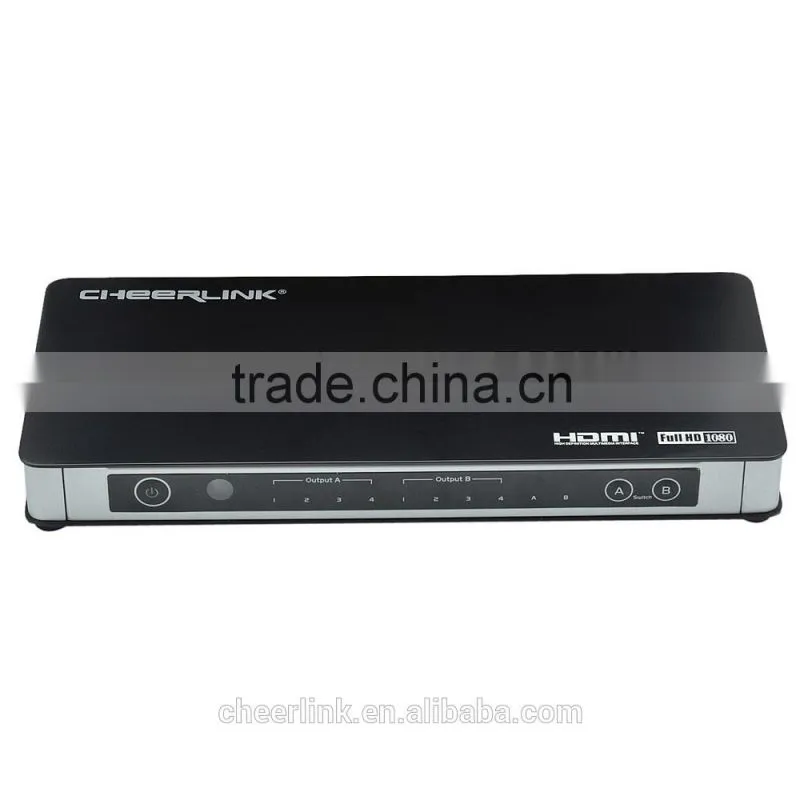

The 4x2 CHEERLINK HDMI Matrix (Model No.HTM0402ANR) with RS-232 and IR Remote is designed to work as a switcher for multiple sources and displays. With a maximum bandwidth of 2.25Gbps, this device will support a sharp and highly defined video in multiple resolutions of up to 1080p. Because it is a matrix switcher, it allows any input to be routed to any output; or the same input to be routed to all outputs or any combination. It completely eliminates the need to constantly move around video input and output cables. RS-232 control allows the switcher to be controlled by systems like Crestron or any computerized software/hardware control systems. It comes with IR remote control and it is HDMI 1.3 compliant.
Support true matrix outputs,connecting 4 HDMI inputs and 2 HDMI outputs
Support deep color up to 12bit per channel
Support HDMI digital audio format:LPCM/Dolby-AC3/DTS7.1/DSD/Dolby true HD/DTS-HD master Audio.
Remote control;manual operated and automatic selection function
Remote control function via Rs232
Favourite input source setting.
Perfect compatibility with any HDMI applications.
Great working stability.
Power Adapter included , plug and play.
- Support 3DTV
- Support resolution: 1080P/1080i/720P/576P/480P/576i/480i
- Support audio format: LPCM, Dolby-AC3,DTS7.1,DSD/Dolby TrueHD/ DTS-HD Master Audio.
- Support deep color up to 36bit
- Support data transfer bitrates up to 2.25Gbps/per chennel
- Tmds clock frequency range:25~225Mhz
- Support input video signal volts:0.5Vp-p
- Support DDCsignal volts:5Vp-p
- Power supply:DC5V/4A
- Power adapter format : Input AC(50HZ.60HZ) A100V-240V; Output DC5V/4A
- HDMI output cable distance : ≤15m(if need longer,amplifier is needed )
- Operating temperature range : -5 to +35oC(-41 to +95oF)
- Operating humidity range : 5 to 90 % RH (no condensation)

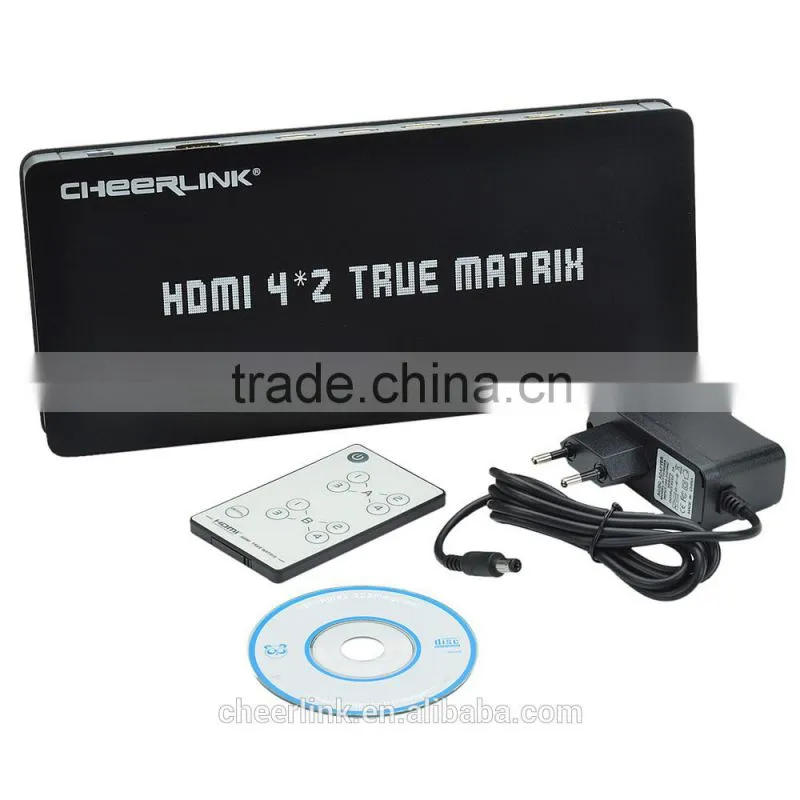

1 x MatriX

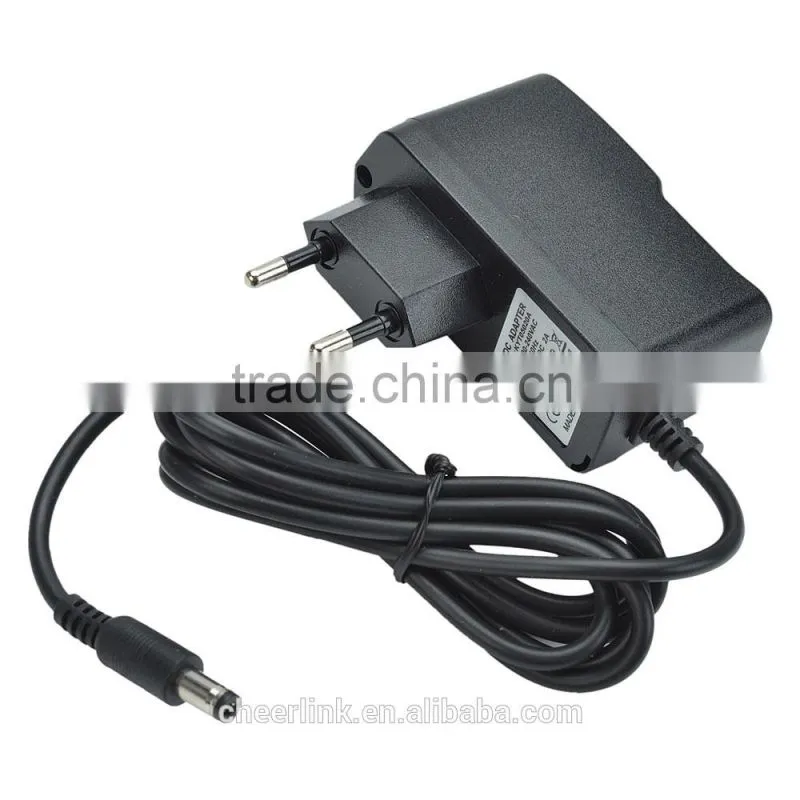

1 x Adapter (US 2-flat-pin plug, 140cm cable)

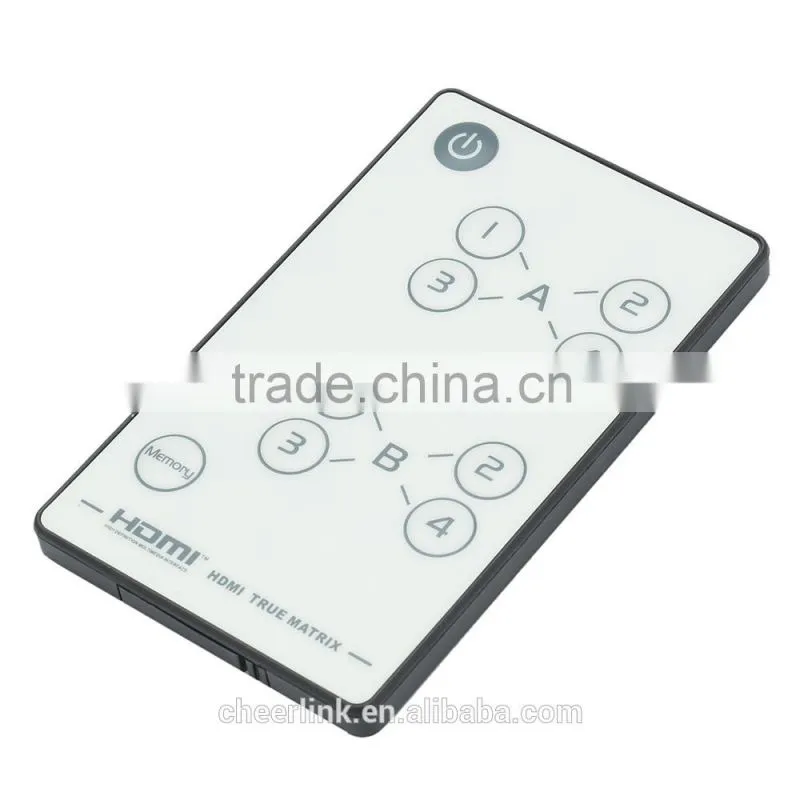

1 x IR Remote controller (1 x CR2025 included)
1 x English user manual
1 x CD
