Home > Products > Coal Burner > ZOOMLINE Coal Burner for Asphalt Plant Drying Drum

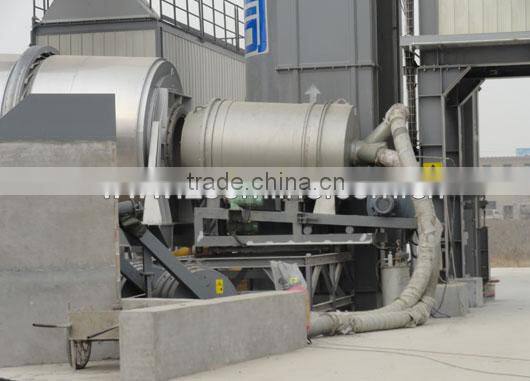

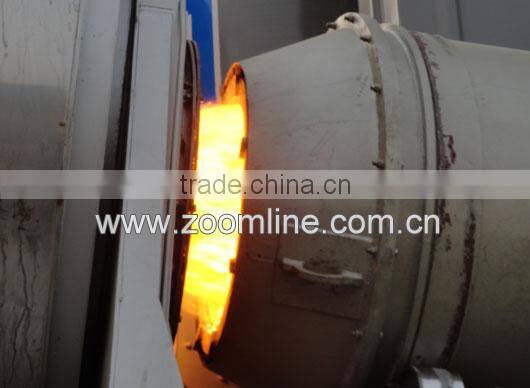

ZOOMLINE Coal Burner for Asphalt Plant Drying Drum
- 20 Set / Sets per Month
- Qingdao Shanghai Tianjin
- T/T
Product Details
Place of Origin: | Henan, China | Brand Name: | ZOOMLINE, ZOOMLINE | Condition: | New |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
Coal Burner1. environmental
2. energy saving
Scope: Our coal burner is mainly used in asphalt station, boiler, dry (such as brick kiln), metallurgy and other industries.
Coal burner is mainly composed of pulverized coal machine, host of combustion machine(including combustion chamber, automatic back and forth motion system, automatic rotation system, the combustion air supply system) control system, ignition system, the crater and others.
Pulverized coal machine
1. Various models and specifications for choose including MFJ20, MFJ40, MFJ80, MFJ120, MFJ150.
2. The broken hammer is made by NM500 high wear-resisting material.
3. The coal screw is controlled by frequency converter for coal supply.
4. First-class accessories (motor, reducer, bearing etc). User can specify a brand.
5. The shell manufactured by super thick high strength steel plate, which avoid the body vibration effectively.
Features of MFR series Coal Burner
1. Adopt new design structure, which changed the principle of traditional burner, adopt rotation type combustor to solve the imperfections of traditional burner(easy slagging, incomplete combustion);
2. High flame temperature, energy saving, burning sufficient;
3. Adopt high performance refractory brick, prolong service life;
4. 24 hours continuous production, no need do slag removal work everyday;
5. Production cost is low, the cost is only about 1/5 of the oil burner .
Model | MFR40 | MFR80 | MFR120 | MFR160 | MFR240 | MFR320 |
Power | 31.25 kw | 41.25 kw | 73.75 kw | 97.25 kw | 138.45 kw | 202.95 kw |
Rated coal consumption | 450 kg/h | 1000 kg/h | 1500 kg/h | 2000 kg/h | 2860 kg/h | 3660 kg/h |
Mixture temperature control | 130-180°C | 130-180°C | 130-180°C | 130-180°C | 130-180°C | 130-180°C |
Main machine | LTZ40 | LTZ80 | LTZ120 | LTZ160 | LTZ240 | LTZ320 |
Coal crusher | FMJ40 | FMJ80 | FMJ120 | FMJ120+ FMJ40 | 2*FMJ120 | 3*FMJ120 |
Oil burning igniter | RYDH | RYDH | RYDH | RYDH | RYDH | RYDH |
Distribution cabinet | PD40 | PD80 | PD120 | PD160 | PD240 | PD320 |
Combustion completeness | ≥95% | ≥95% | ≥95% | ≥95% | ≥95% | ≥95% |
Matching asphalt plant output | 25-40 t/h | 70-85 t/h | 100-125 t/h | 140-170 t/h | 200-250 t/h | 280-320 t/h |
